DFL-900/1500 User Manual Chapter 8
Routing
75
FIELD DESCRIPTION Range / Format EXAMPLE
Type
Determine this static routing entry record is multiple hosts
(Net) or a single host (Host)。
Net / Host Net
Destination The destination IP address of this static routing entry record. IPv4 format 192.168.50.0
Netmask
The destination IP Netmask of this static routing entry
record.
IPv4 format 255.255.255.0
Gateway The default gateway of this static routing entry record. IPv4 format 192.168.40.253
Table 8-1Add a static routing entry

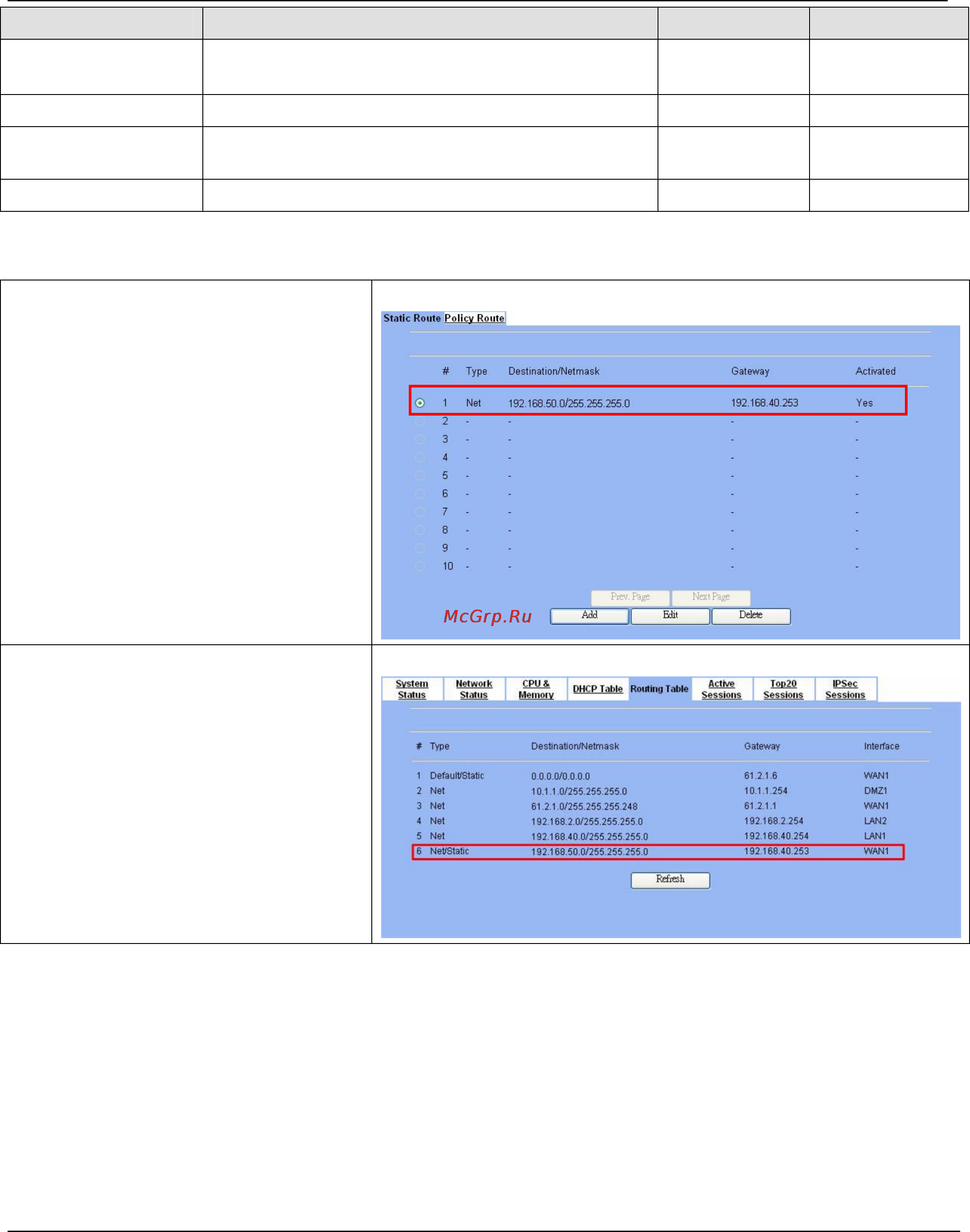

Step 3. View the result
The static route has been stored. After filling data
completely, view the static routing entries which
have been set.
Advanced Settings > Routing > Static Route
Step 4. View the routing table
You can notice there is an extra routing entry in
the routing table. The indicated routing entry as
right diagram is produced by static routing rule.
Device Status > System Status > Routing Table
