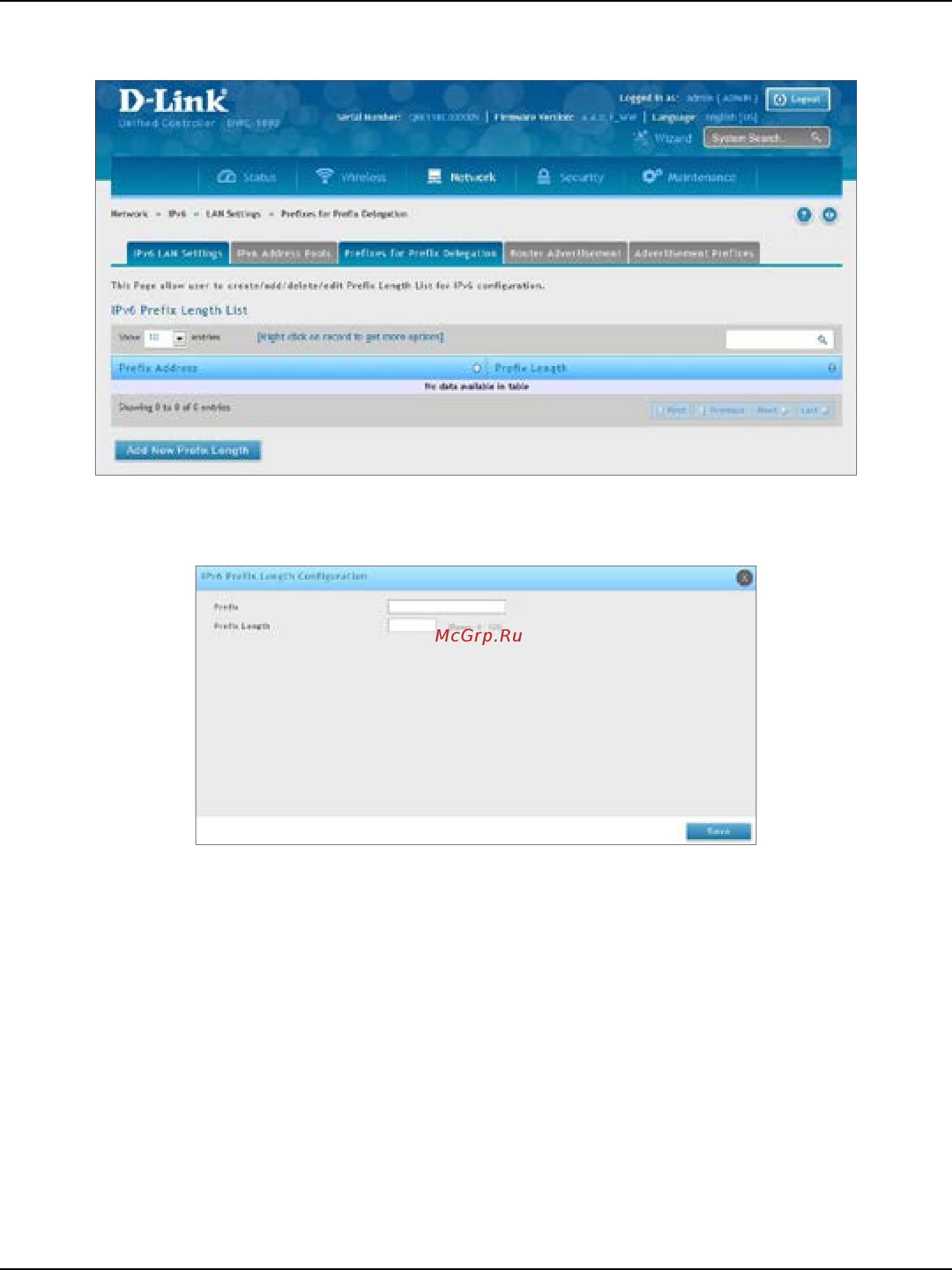

D-Link DWC-1000 User Manual 124
Section 5 - Advanced Network Conguration
6. Click Add New Prex Length.
7. EntertheIPv6PrexandPrexLength.ClickSave.
5. Go to Network > IPv6 > LAN Settings > Prexes for Prex Delegation tab.
