Section 5 - Advanced Network Conguration

Conguring 802.1p Priority

Path:Network>QoS>LANQoSPriority>802.1PPriority

IfyouselectedCoSforyourQoSconguration,usethefollowingproceduretocongureandassignpriorityto

theCoSeldsintheIPpackets.

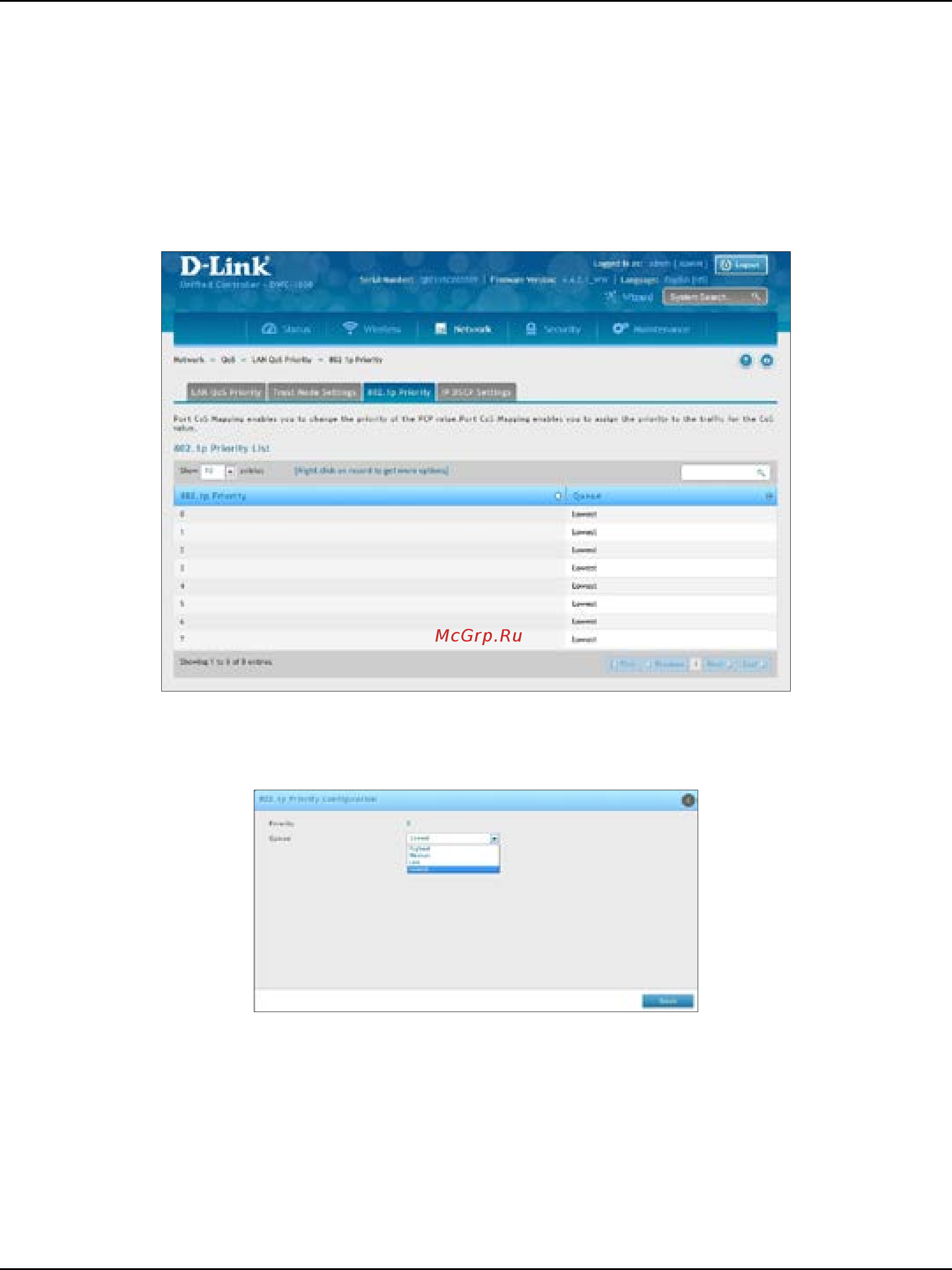

1. Go to Network > QoS > LAN QoS Priority > 802.1P Priority tab.

2. Inthe802.1pPriorityList,eachrowcorrespondstoaCoSeldinanIPpacket.SelectaCoSeldby

right-clicking on it and clicking Edit.

3. OntheQueuedrop-downlist,selectoneofthefollowingpriorities:

– Highest

– Medium

– Low

– Lowest

4. Repeatstep3foreachadditionalCoSeldyouwanttoprioritize.

5. When you nish, click Save.
