D-Link DWC-1000 [274/368] Authentication
![D-Link DWC-1000 [274/368] Authentication](/views2/1203424/page274/bg112.png)
D-Link DWC-1000 User Manual 274
Section 7 - VPN

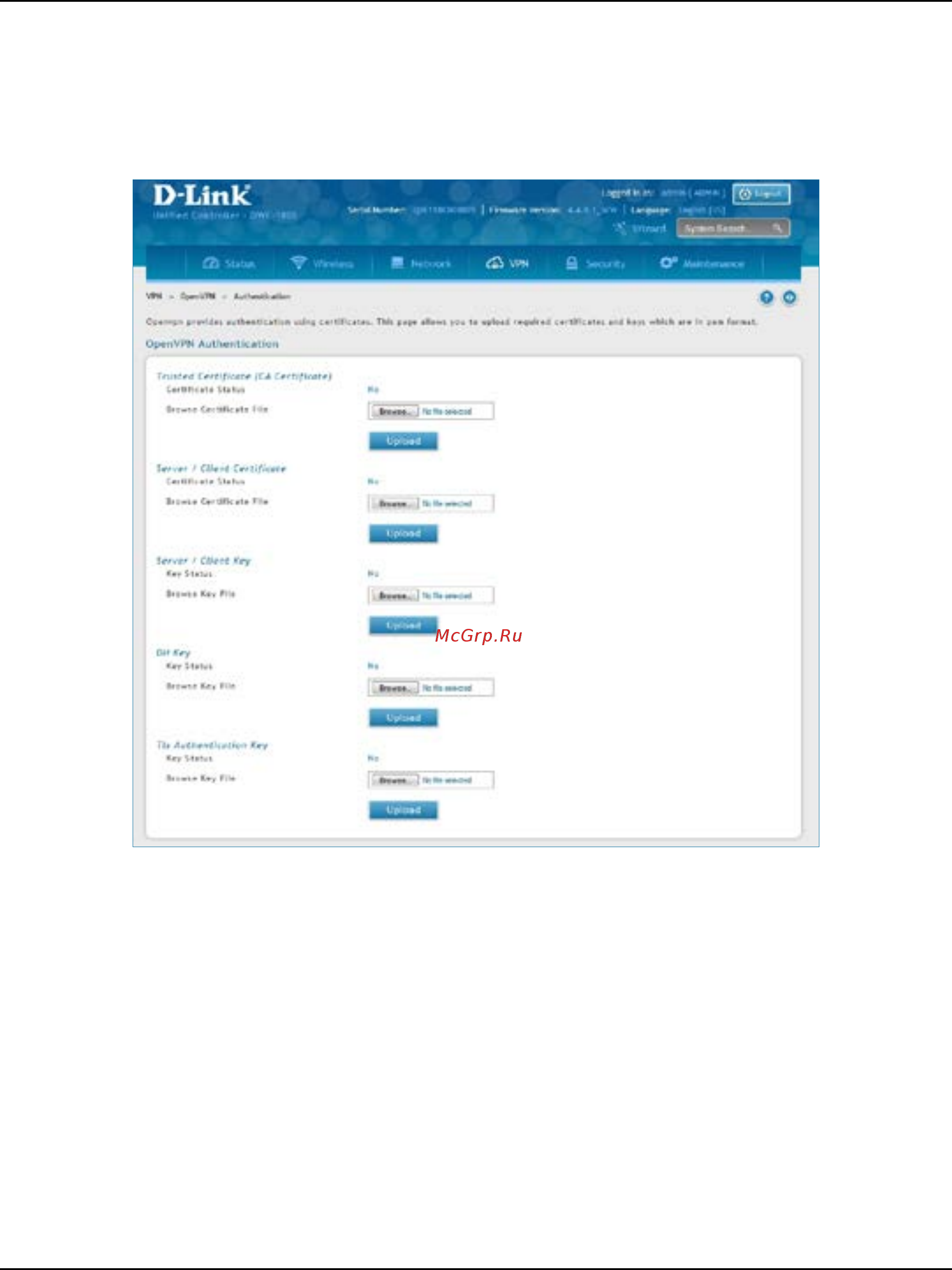

Authentication
This page will allow you to upload certicates and keys. Click Browse and select the le you want to upload. Click
Open and then click Upload.
