D-Link DWC-1000 User Manual 97

Section 4 - Advanced WLAN Conguration

Congure AP Prole Qos

Path:Wireless>AccessPoint>APProles>APProleQoS

QualityofService(QoS)providesyouwiththeabilitytospecifyparametersonmultiplequeuesforincreased

throughput and better performance of dierentiated wireless trac likeVoice‐over‐IP (VoIP), other types of

audio,video,andstreamingmediaaswellastraditionalIPdataoverthewirelesscontroller.

ConguringQualityofService(QoS)onthewirelesscontrollerconsistsofsettingparametersonexistingqueues

fordierent typesofwirelesstrac,and eectivelyspecifyingminimum andmaximum waittimes(through

ContentionWindows)fortransmission.Thesettingsdescribedhereapplytodatatransmissionbehavioronthe

access point only, not to that of the client stations.

APEnhancedDistributedChannelAccess(EDCA)Parametersaecttracowingfromtheaccesspointtothe

clientstation.StationEnhancedDistributedChannelAccess(EDCA)Parametersaecttracowingfromthe

client station to the access point.

YoucanspecifycustomQoSsettings,oryoucanselectatemplatethatcongurestheAPprolewithpre‐dened

settingsthatareoptimizedfordatatracorvoicetrac.

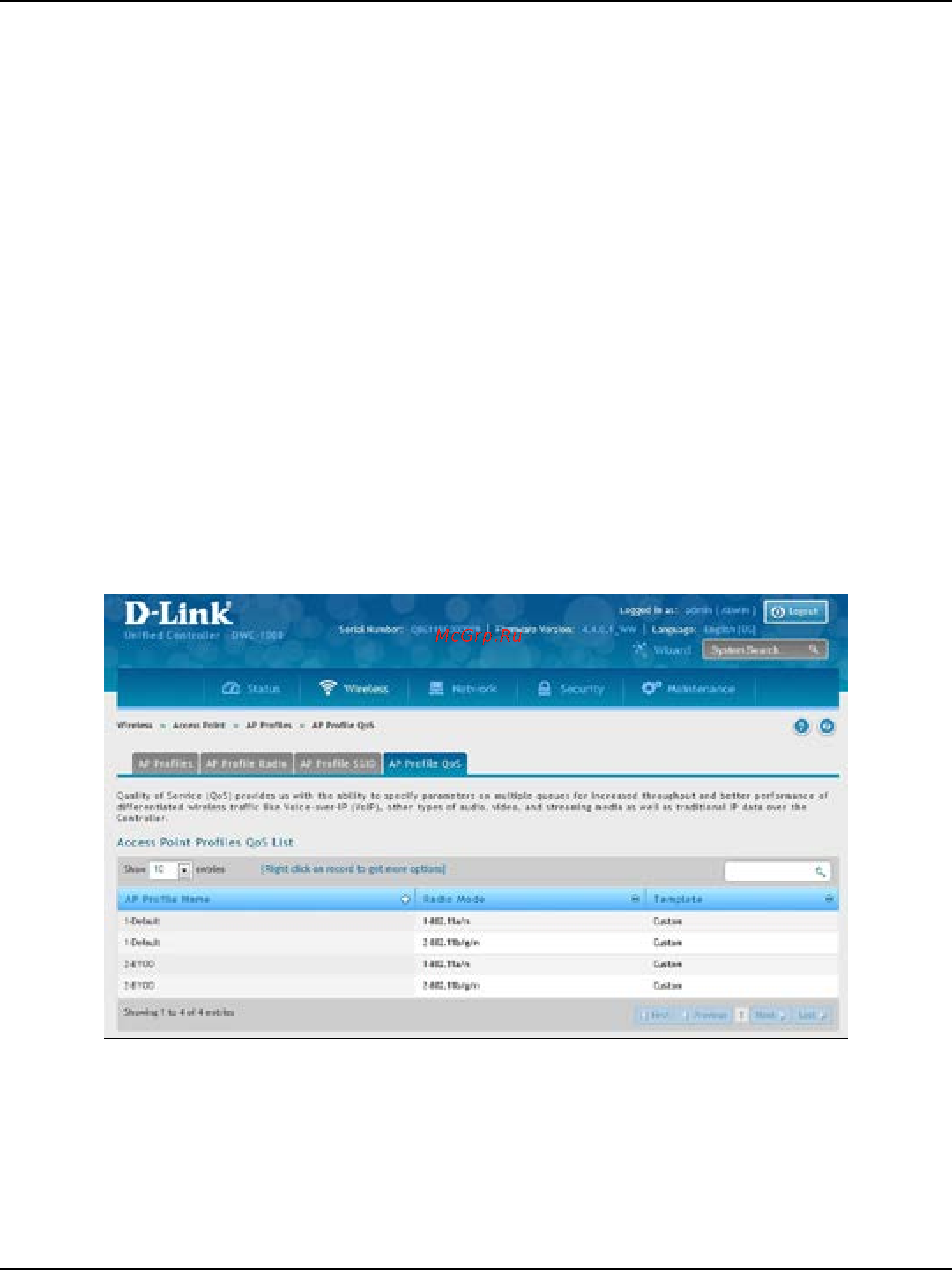

1. Click Wireless > Access Point > AP Proles > AP Proles QoS tab.

2. Right-clickanAPProleandselectEdit.
