D-Link DWC-1000 User Manual 79
Section 4 - Advanced WLAN Conguration

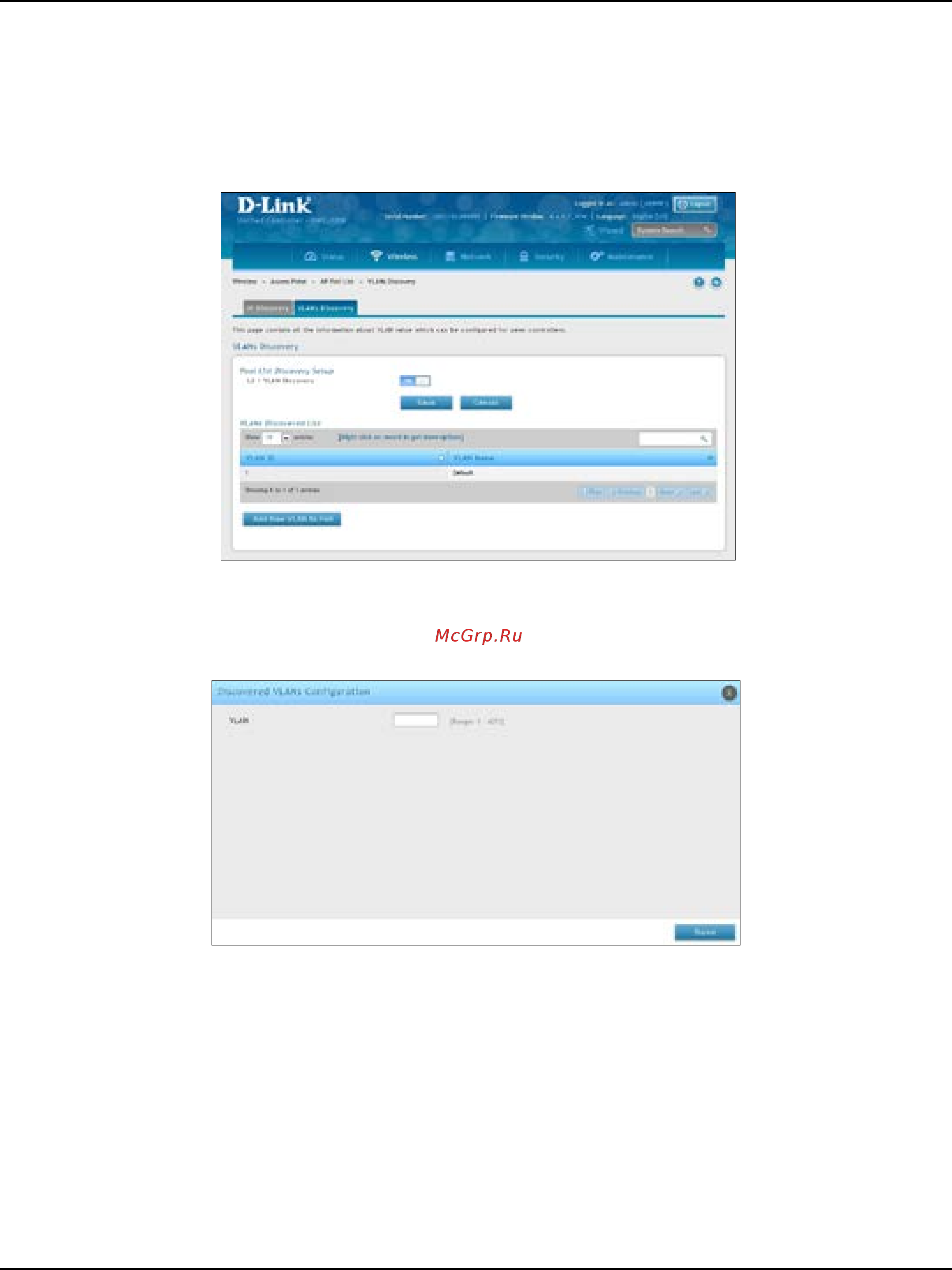

Congure L2/ VLAN Discovery
Path:Wireless>AccessPoint>APPollList
1. Click Wireless > Access Point > AP Poll List > VLAN Discovery tab.
4. Click Save.
2. Switch L2/ VLAN Discovery to ON and click Save.
3. Click Add New VLAN to Poll.EnteraVLANnumber.
