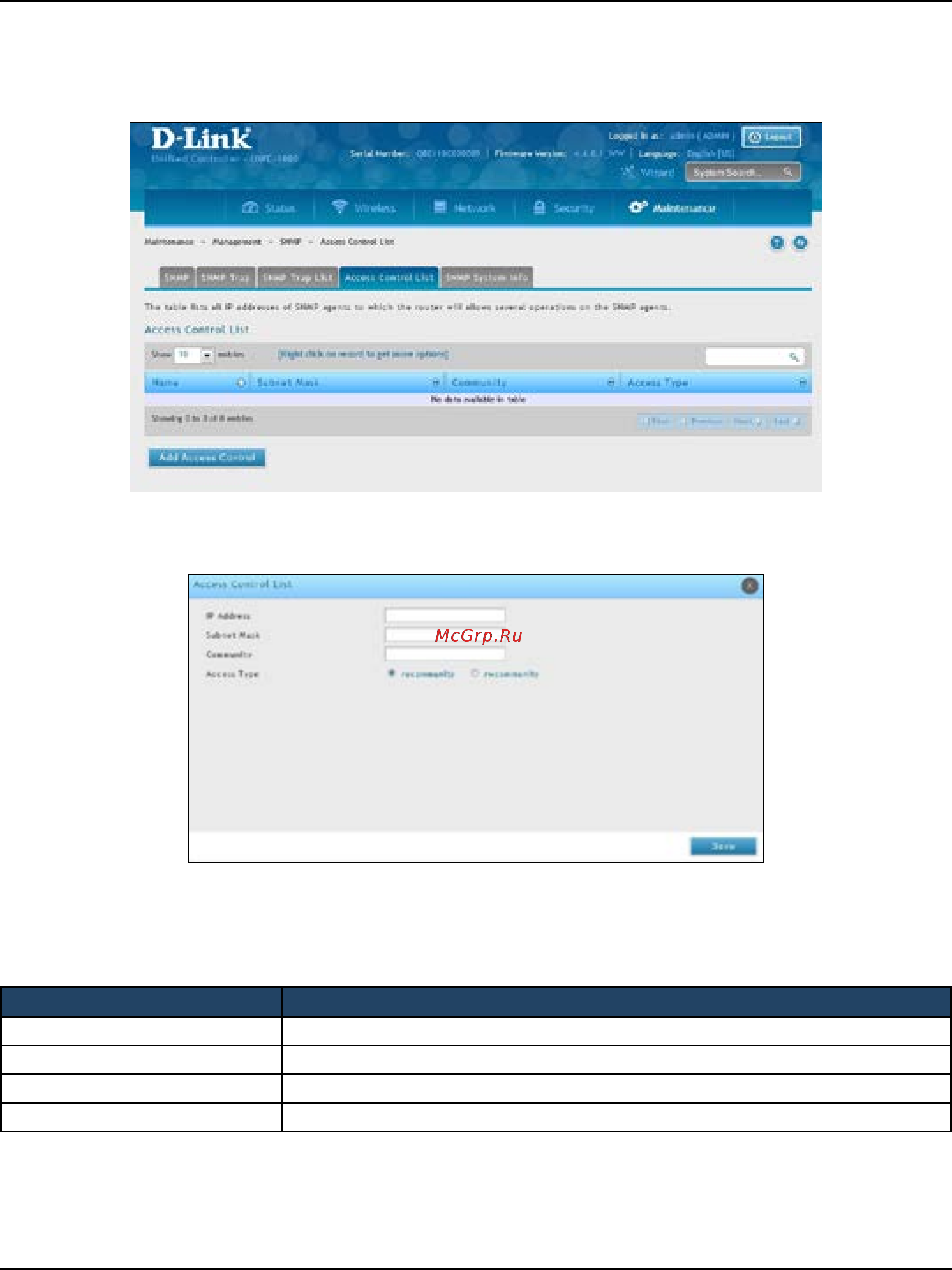

D-Link DWC-1000 User Manual 328
Section 9 - Maintenance
Congure SNMP Access Control List
1. Go to Maintenance > Management > SNMP > Access Control List tab.
2. Click Add Access Control.
3. Completetheinformationonelds(refertothetablebelow).
4. Click Save.
Field Description
IP Address TheIPAddressoftheSNMPtrapagent.
Subnet Mask ThenetworkmaskusedtodeterminethelistofallowedSNMPmanagers.
Community The community string to which the agent belongs.
Access Type Accesswillbeeitherreadonly(ROcommunity)orread-write(RWcommunity).
