Policies

Path:VPN>IPSecVPN>Policies

AnIPSecpolicyisbetweentheDWC-1000andanothergateway/routerandanIPSecclientonaremotehost.

TheIPSecmodecanbeeithertunnelortransportdependingonthenetworkbeingtraversedbetweenthetwo

policy endpoints.

• Transport: This is used for end-to-end communication between the DWC-1000 and the tunnel

endpoint,eitheranotherIPSecgatewayoranIPSecVPNclientonahost.Onlythedatapayload

isencryptedandtheIPheaderisnotmodiedorencrypted.

• Tunnel:Thismodeisusedfornetwork-to-networkIPSectunnelswherethisgatewayisone

endpointofthetunnel.InthismodetheentireIPpacketincludingtheheaderisencrypted

and/or authenticated.

Whentunnelmodeisselected,youcanenableNetBIOSandDHCPoverIPSec.DHCPoverIPSecallowsthisswitch

toserveIPleasestohostsontheremoteLAN.AswellinthismodeyoucandenethesingleIPaddress,rangeof

IPs,orsubnetonboththelocalandremoteprivatenetworksthatcancommunicateoverthetunnel.

To congure the radio settings:

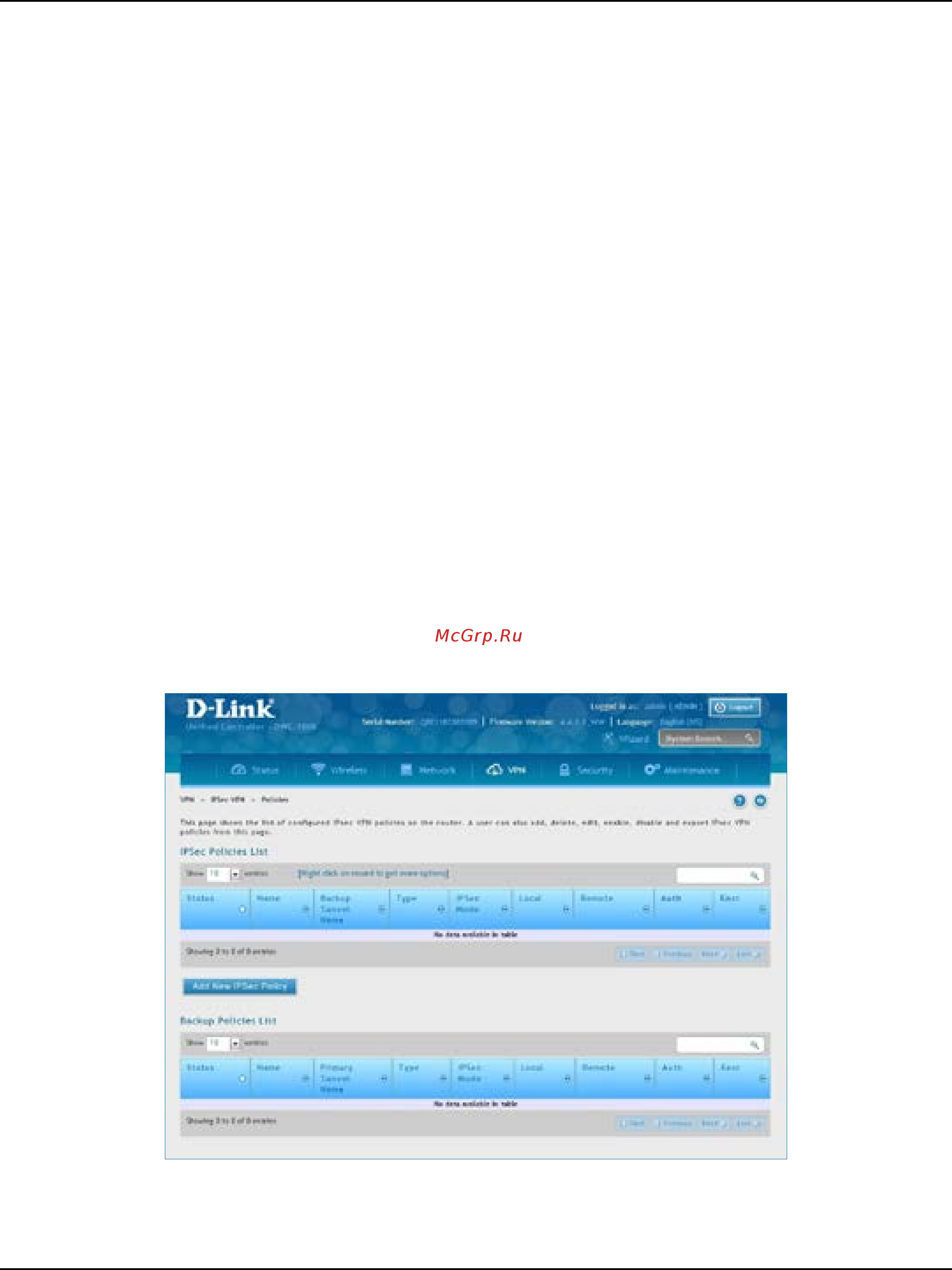

1. Click VPN > IPSec VPN > Policies.

IPSec VPN

2. Click Add new IPSec Policy.FillouttheGeneralsectionwhichyouwillnametheVPN,selectpolicy

type, dene the tunnel type, and dene endpoints.
