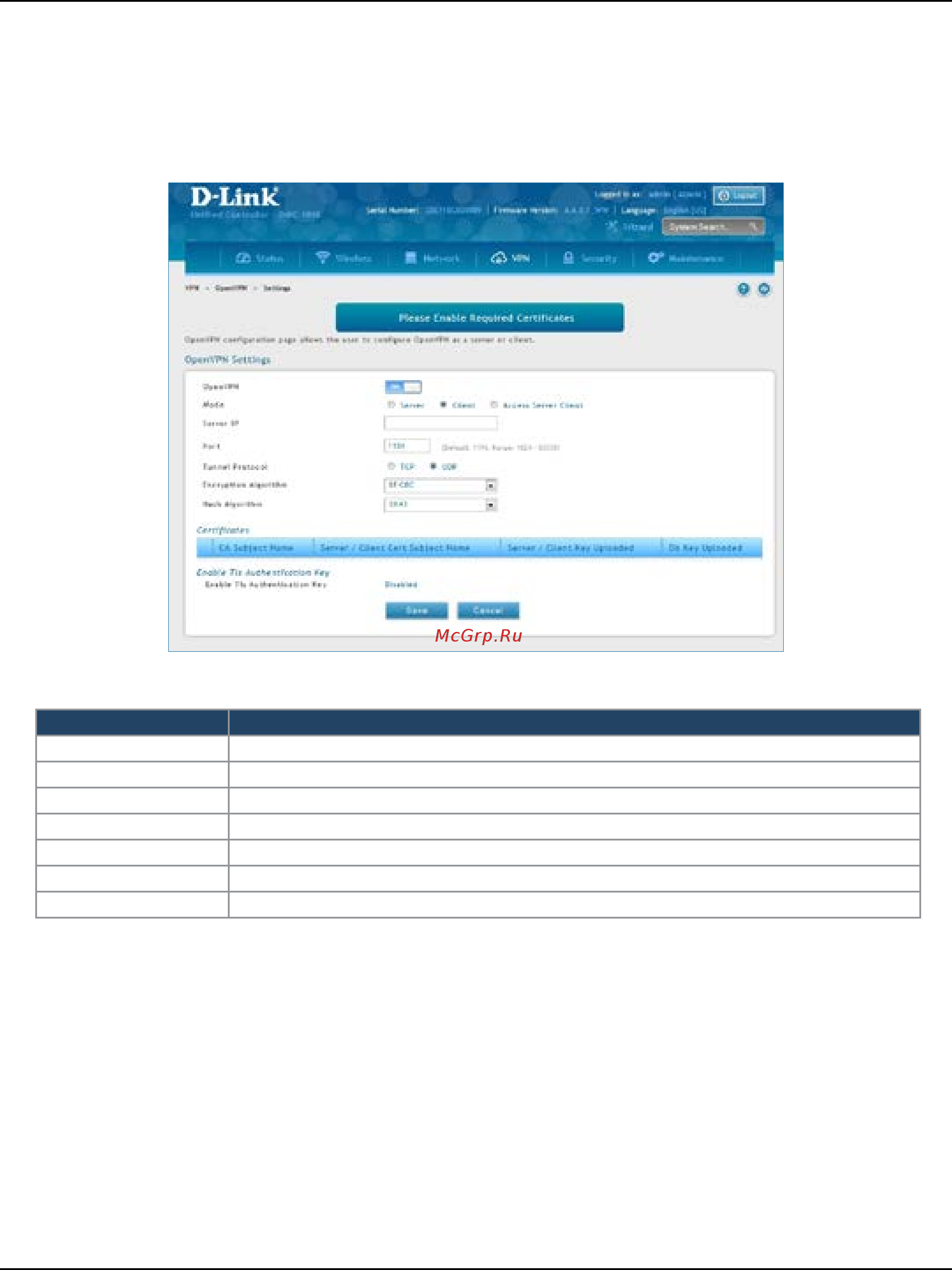

D-Link DWC-1000 User Manual 270
Section 7 - VPN
Client
Field Description
Mode Select Client.
Server IP EntertheIPaddressoftheOpenVPNserver.
Port Enterwhatporttouse.Thedefaultportis1194.
Tunnel Protocol Select either TCP or UDP.
Encryption Algorithm Select the encryption algorithm from the drop-down menu.
Hash Algorithm Select the hash algorithm from the drop-down menu.
Save Click Save to save and activate your settings.
TocongurethecontrollerasanOpenVPNclient:
1. Click VPN > OpenVPN > Settings.
2. Toggle OpenVPN to ON and complete the elds in the table below.
