D-Link DWC-1000 User Manual 234
Section 8 - Security
Blocked Clients
Path:Security>Firewall>BlockedClients

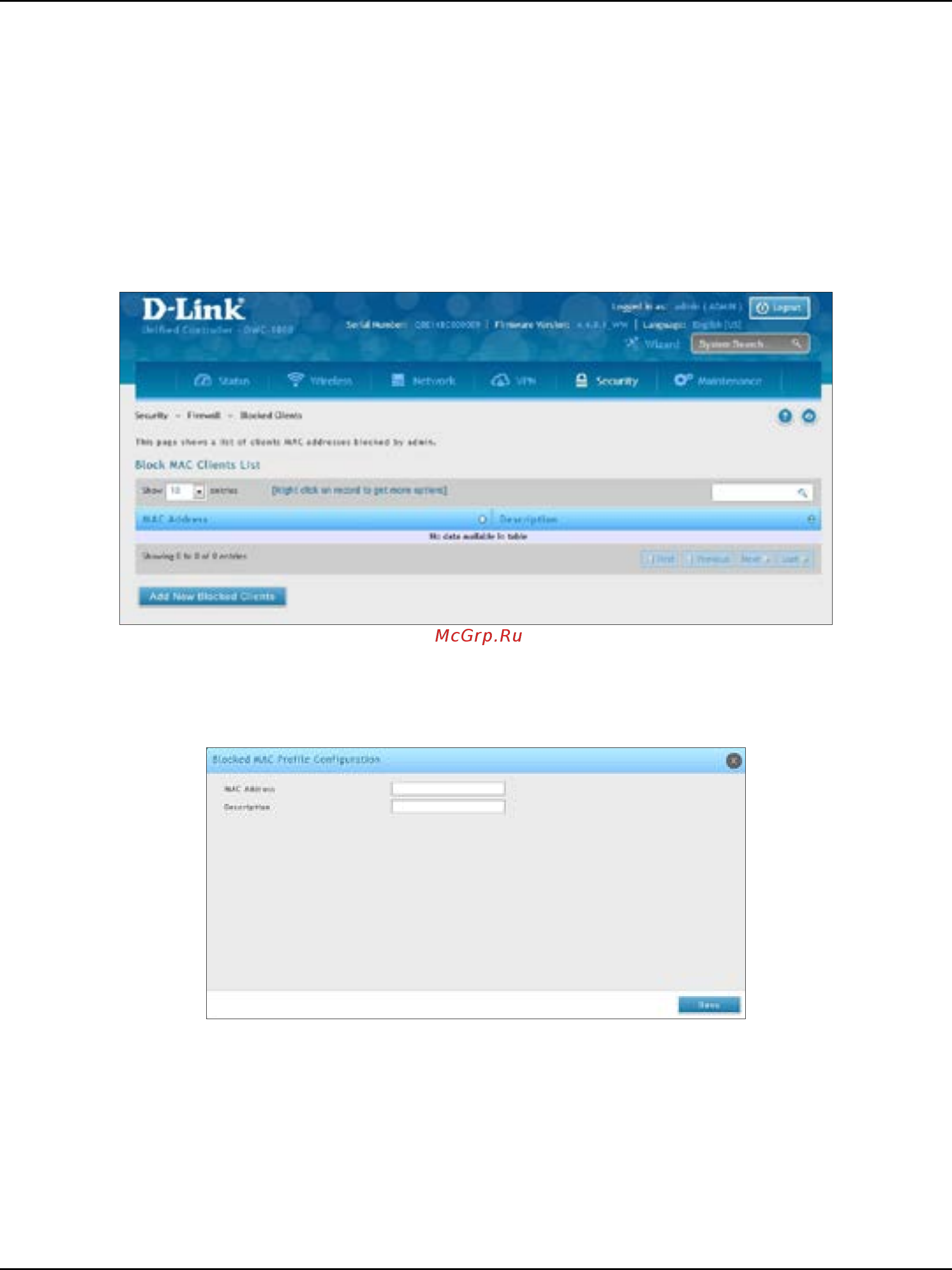

This page displays a list of blocked clients. You may add new clients to block.
To congure blocked clients:
1. Go to Security > Firewall > Blocked Clients.
2. Click Add New Blocked Clients.Entertheclient’sMACaddressandadescription.
3. Click Save.
