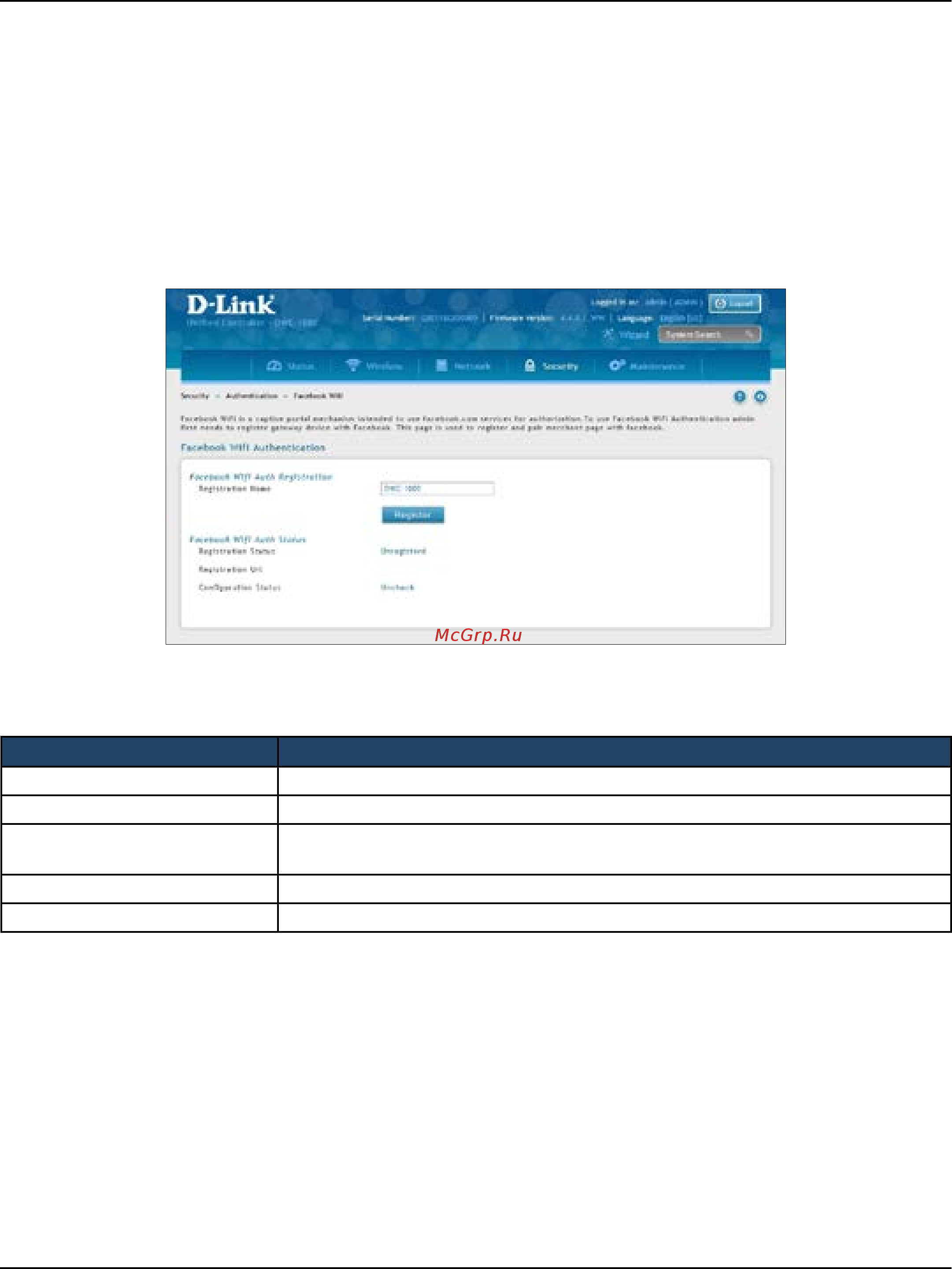

D-Link DWC-1000 User Manual 226
Section 6 - Securing Your Network
Facebook Wi-Fi
Path:Security>Authentication>FacebookWiFi
Register the controller with Facebook so users can be directed to your facebook page when accessing the
network.
To congure:
1. Go to Security > Authentication > Facebook WiFi.
Field Description
Registration Name EnterthenameyouwanttoregisterandclickRegister.
Registration Status Displays whether the controller is registered with Facebook or not.
Registration URL
Once the controller are registered, you must pair your merchant page with the
RegistrationUrl.
Conguration Status Displays whether the controller is paired with the merchant page or not.
Reset Click to unregister the controller.
2. Complete the information from the table below and click Save.
