D-Link DWC-1000 User Manual 335
Section 9 - Maintenance
Rebooting the Wireless Controller
Path:Maintenance>Firmware>SoftReboot
Youcanrebootthewirelesscontroller.Rebootingperformsapowercycleandkeepsanycustomizedoverrides
you made to the default settings.

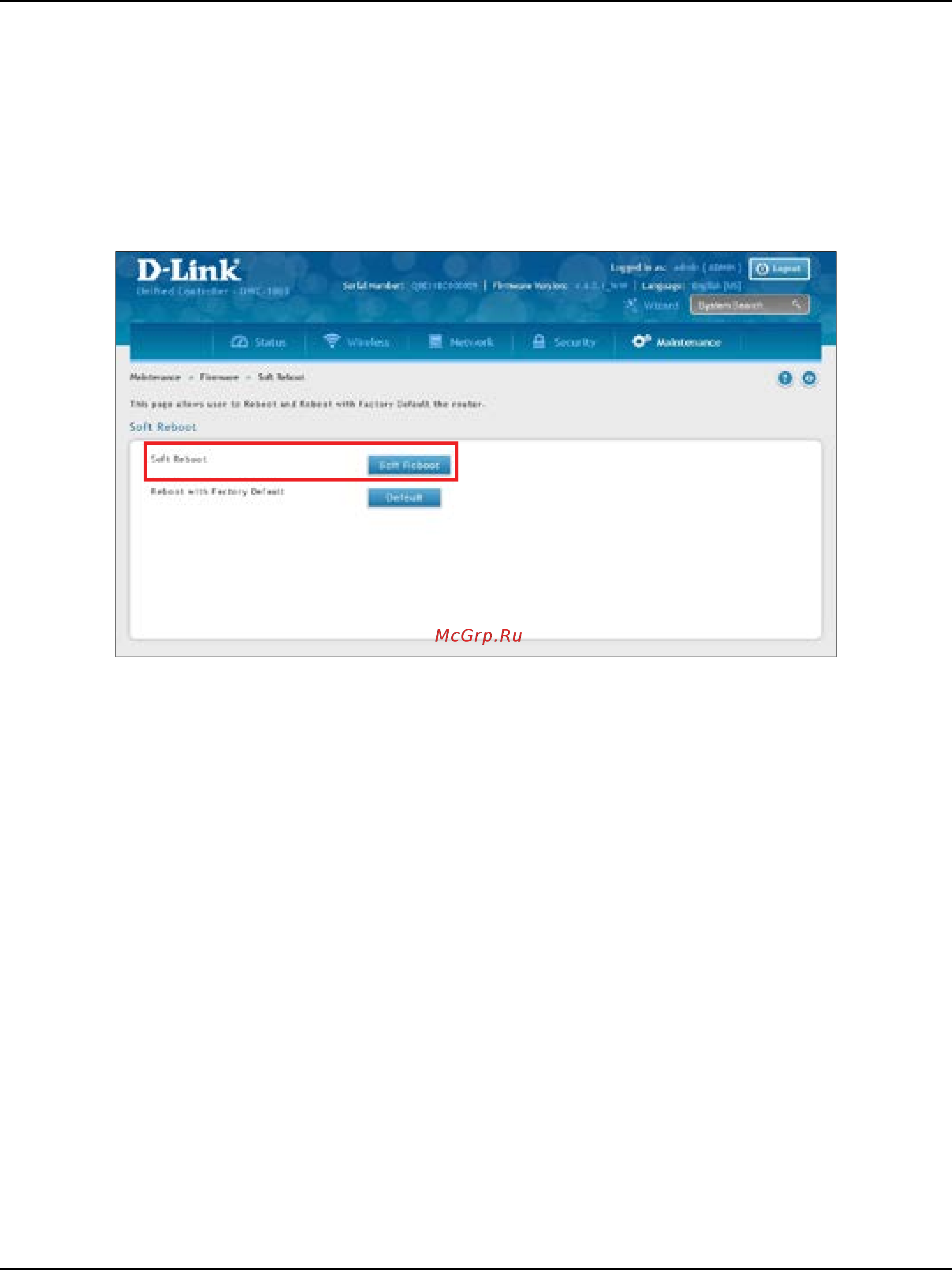

1. Go to Maintenance > Firmware > Soft Reboot.
2. NexttoSoftReboot,clickSoft Reboot. To reboot to the original factory default, click Default.
3. At the conrmation message, click OK to reboot the wireless controller or click Cancel to not reboot.
