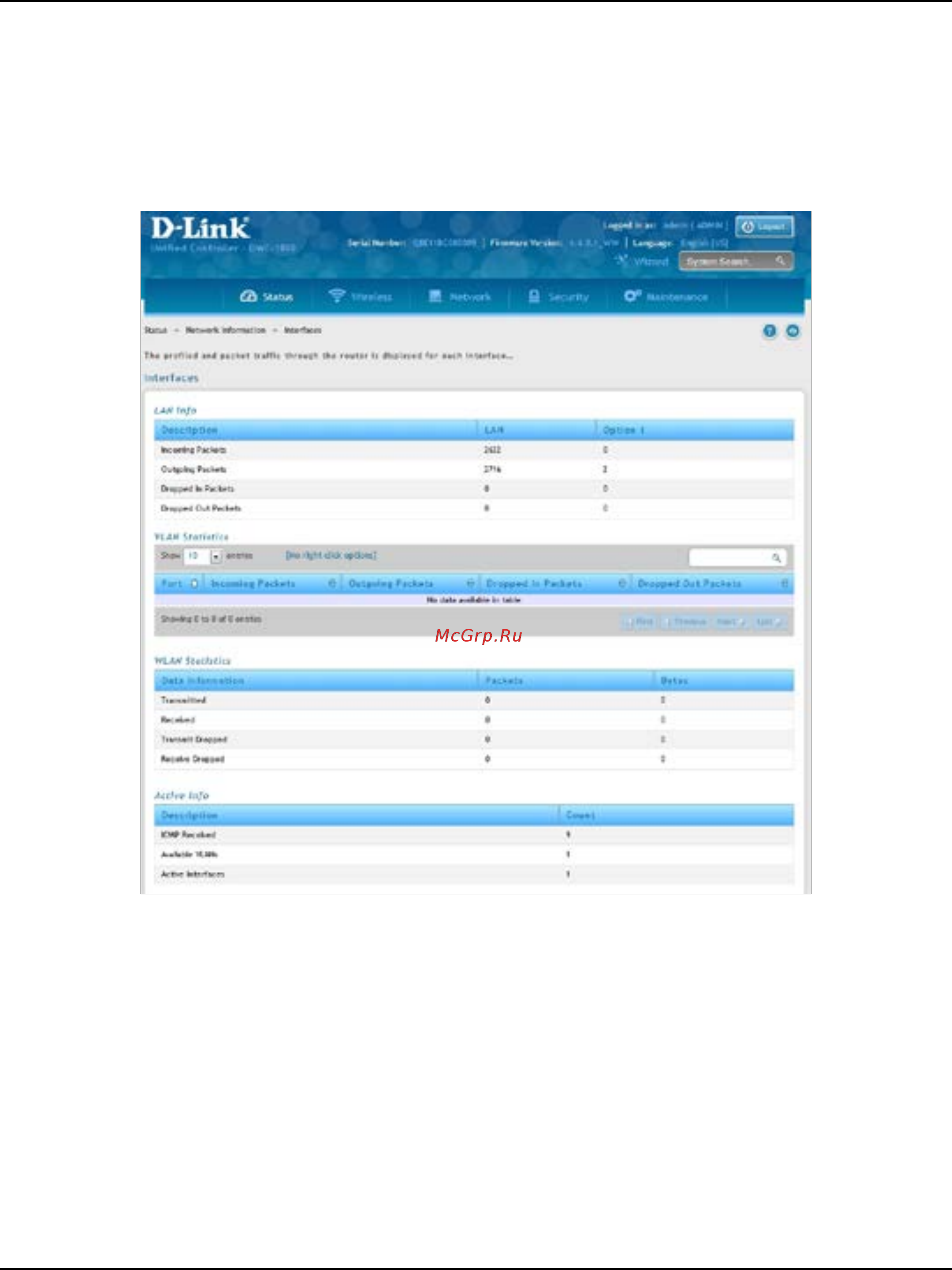

D-Link DWC-1000 [285/368] Viewing traffic on interfaces
![D-Link DWC-1000 [285/368] Viewing traffic on interfaces](/views2/1203424/page285/bg11d.png)
D-Link DWC-1000 User Manual 285
Section 8 - Viewing Status and Statistics
Viewing Trac on Interfaces
Path:Status>NetworkInformation>Interfaces
This page shows the incoming/outgoing packets on each interface. Table elds are shown on the next page.
