Voice VlAns

Path:Network>VLAN>AdvancedVLAN>VoiceVLAN

ThevoiceVLANfeatureenablescontrollerportstocarryvoicetracwithdenedsettingssothatvoiceanddata

tracareseparatedwhencomingontotheport.AvoiceVLANensuresthatthesoundqualityofanIPphoneis

safeguardedfromdeteriorationwhendatatracontheportishigh.

TheinherentisolationprovidedbyVLANsensuresthatinter‐VLANtracisundermanagementcontrolandthat

network‐attached clientscannotinitiateadirectattackonvoice components.AQoSprotocolbasedonthe

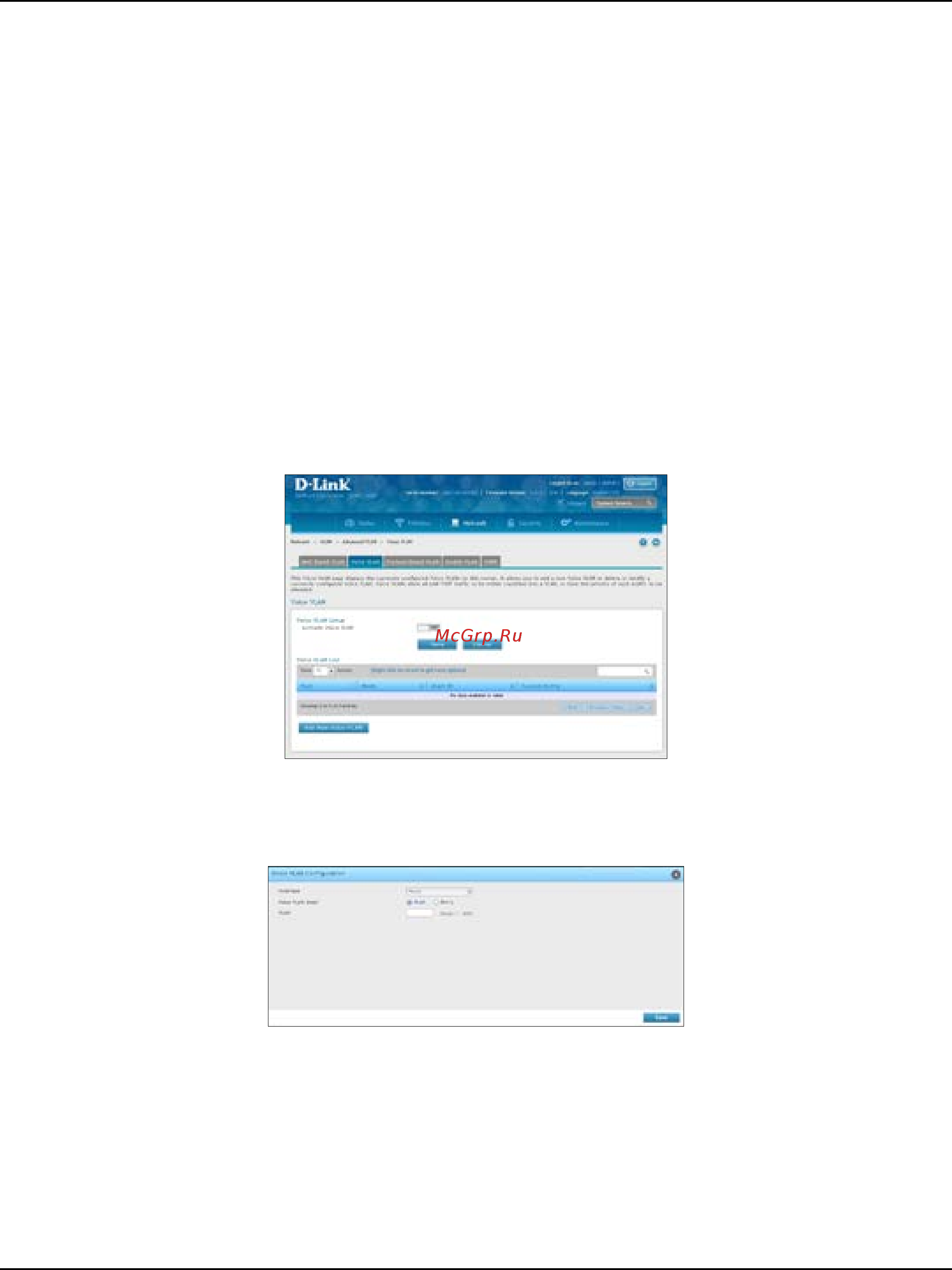

2. Toggle Activate Voice VLAN to ON and click Save.

3. Click Add New Voice VLAN.

4. Select the interface and Voice VLAN mode.

• VLAN:ThevoiceVLANpacketsareuniquelyidentiedbyanumberyouassign.Allvoicetrac

carriesthisVLANIDtodistinguishitfromotherdatatracwhichisassignedtheport’sdefault

VLANID.However,voicetracisnotprioritizeddierentlythanothertrac.

• Dot1q:ThisparameterissetbytheVoIPdeviceforallvoicetractodistinguishvoicedatafrom

othertrac.Allothertracisassignedtheport’sdefaultpriority.

5. Click Save.
