D-Link DWC-1000 User Manual 76

Section 4 - Advanced WLAN Conguration

WLAN Visualization

WLAN Visualization is a tool that provides a graphical representation of the wireless network through a Web

browser. The WLAN Visualization graph does not have a background image of its own, and so the administrator

canuploadastaticgraphicimagethatprovidesthewirelesstopologyoftheAPsandcontrollersinthewireless

network.

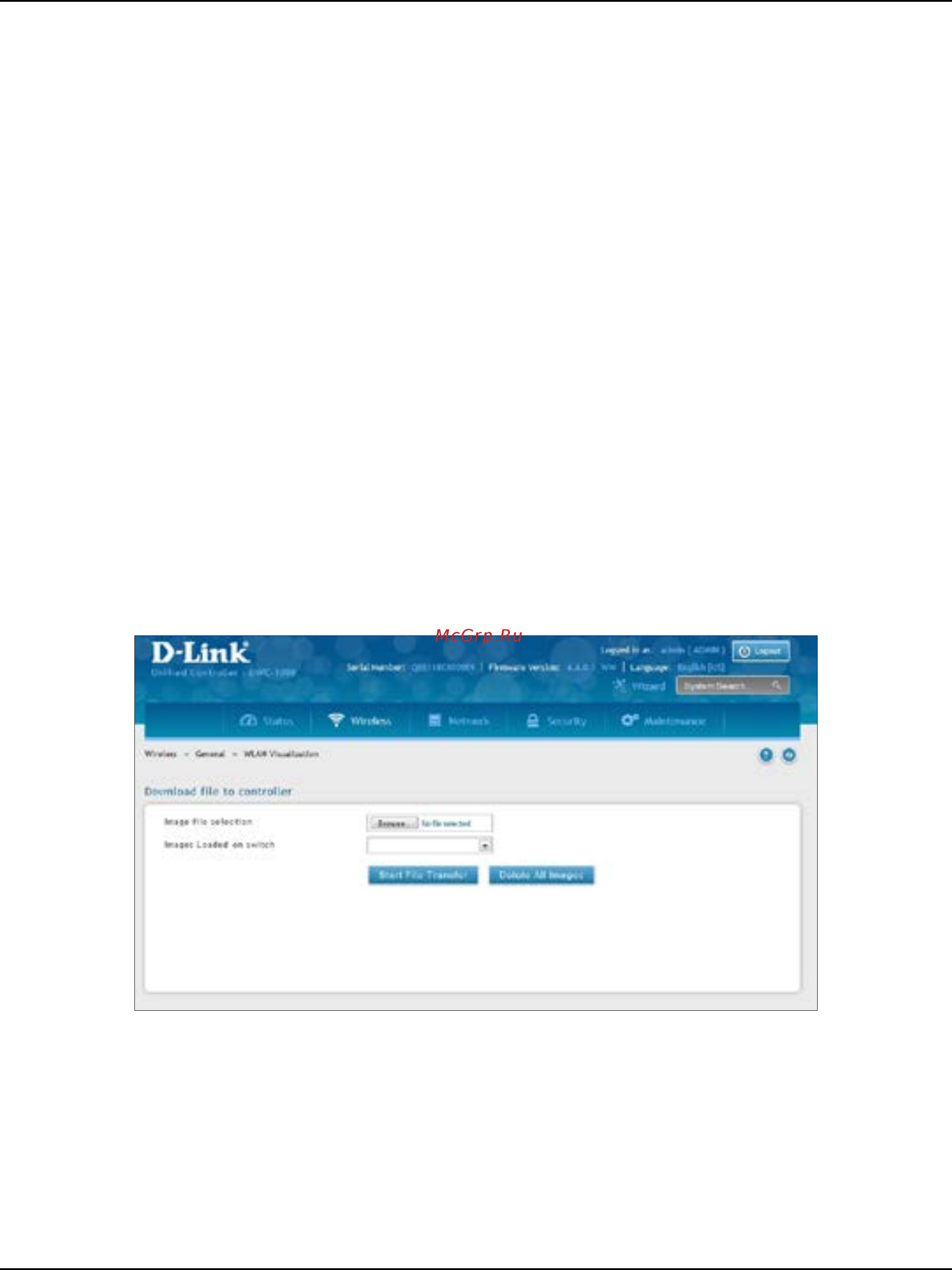

Upload Images

General > WLAN Visualization Image

User can upload one or more images,such as your oce oor plan, to provide customizedinformationfor

the WLAN Visualization feature. Images le formats that are recommended to upload should be in one of the

following formats:

• GIF(GraphicsInterchangeFormat)

• JPG(JointPhotographicExpertsGroup)

It is also recommended that you do not use color images since the WLAN components might not show up well.

Once user uploads an image le and save the running conguration, the image remains on the controller and

you can assign it to an existing graph using the WLAN Deployment application.

Deleting Images

This option is available only if images are already loaded onto the controller. To delete all images loaded onto the

controller, click Delete All Images. Deleting background images is not recommended. However, if user uses has

to delete the images user will need to refresh the WLAN Visualization tool after deleting images.
