D-Link DWC-1000 User Manual 336
Section 9 - Maintenance
Wireless Controller Firmware Upgrade
Path:Maintenance>Firmware>FirmwareUpgrade>UsingSystem(PC)
D-Link is constantly improving the operation and performance of the wireless controller. When improvements
areavailable,theyareoeredtocustomersasrmwareupgradereleases.
After you install the wireless controller, check that it has the latest rmware. Thereafter, check for rmware
releases and install them as they become available.

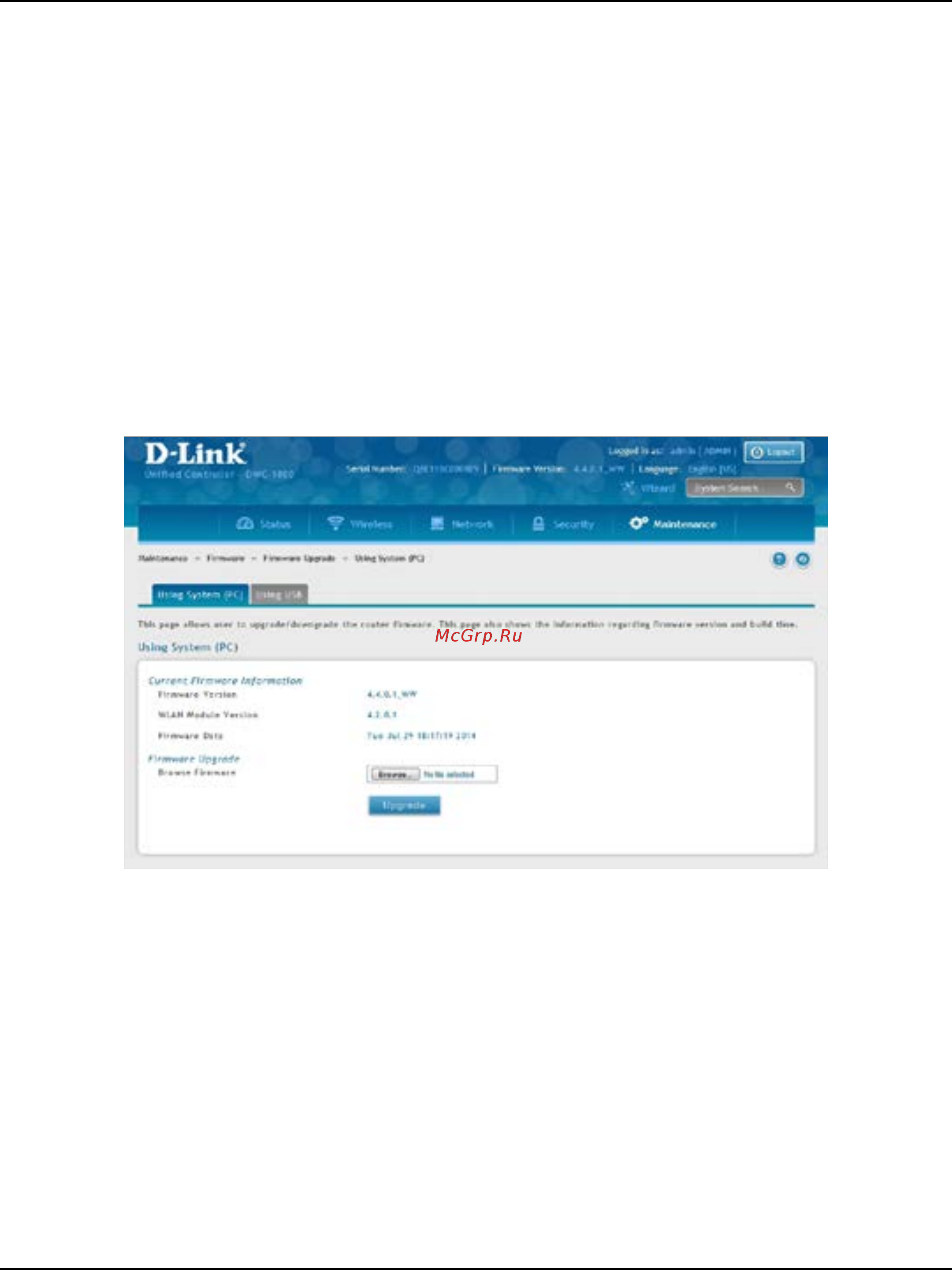

1. In the wireless controller web management interface, click Maintenance > Firmware > Firmware
Upgrade.TheUsingSystem(PC)pagewillappear.
Upgrading Firmware
