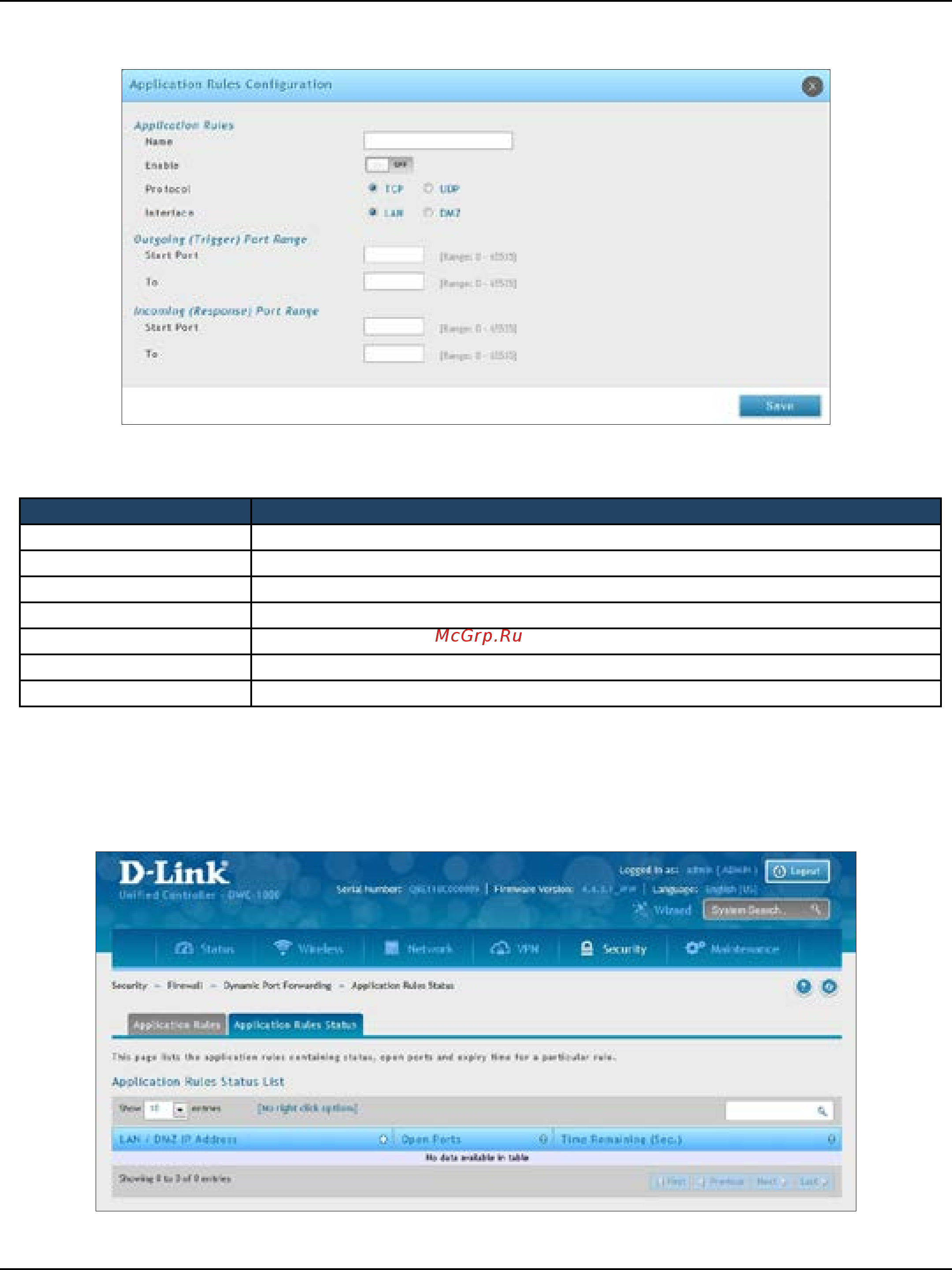

D-Link DWC-1000 User Manual 241
Section 8 - Security
3. Complete the elds from the table below and click Save.
Field Description
Name Enteranameforyourrule.
Enable Toggle to ON to activate the rule.
Protocol Select TCP or UDP.
Interface Select either LAN or DMZ.
Outgoing (Trigger) Port Range Enterthestartandendtriggerportrange.
Incoming Port Range Entertheportrangetoopen.
Save Click to save your settings.
4. Click on the Application Rules Status tab to see a list of rules and their status.
