D-Link DWC-1000 User Manual 273
Section 7 - VPN

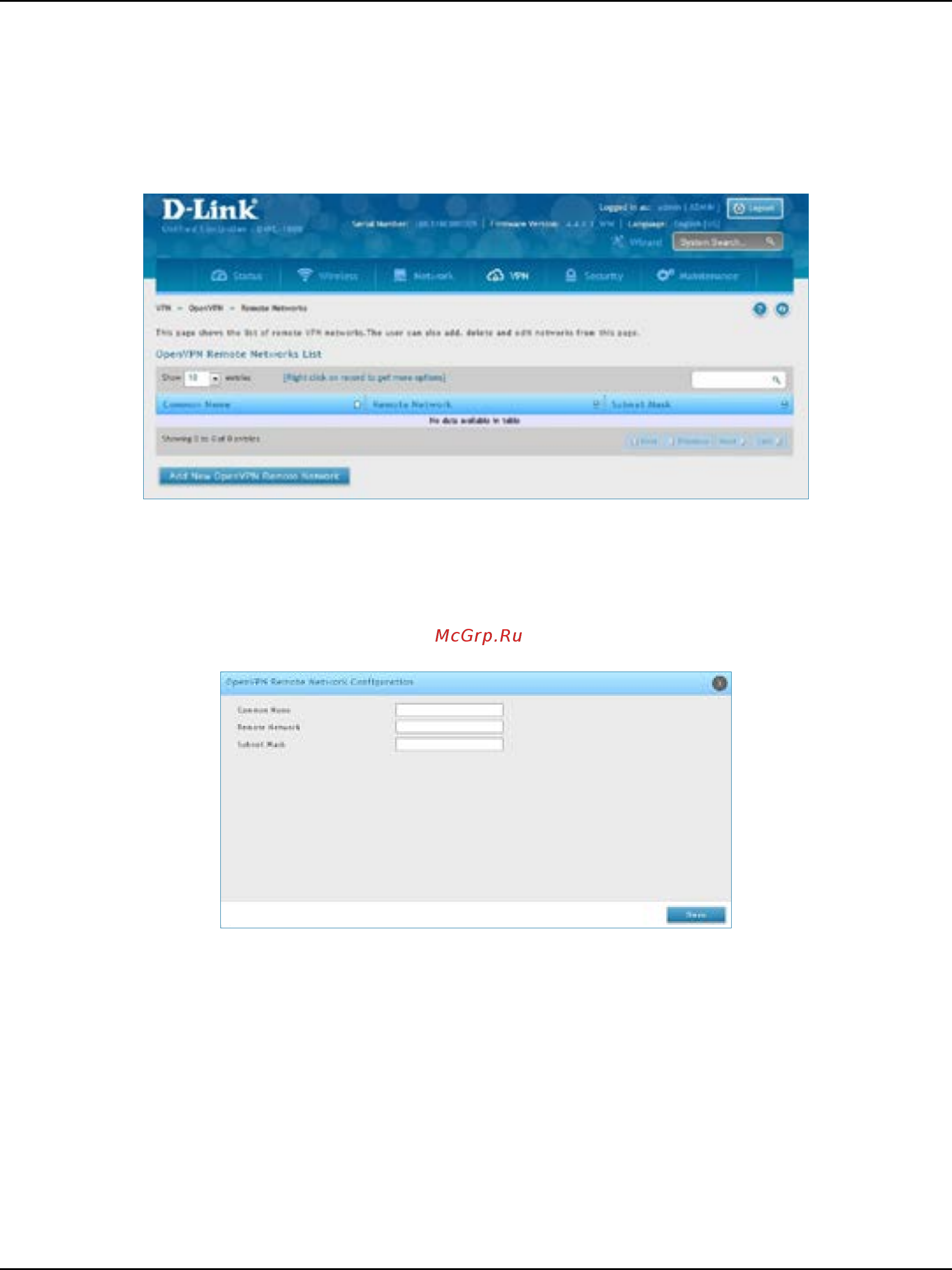

Remote Networks
To create remote networks:
1. Click VPN > OpenVPN > Remote Networks.
2. Click Add New OpenVPN Remote Network.
3. Enteranameoftheremotenetwork.
4. EnteralocalIPnetwork.
5. Enterthesubnetmask.
6. Click Save.
