D-Link DWC-1000 User Manual 333
Section 9 - Maintenance

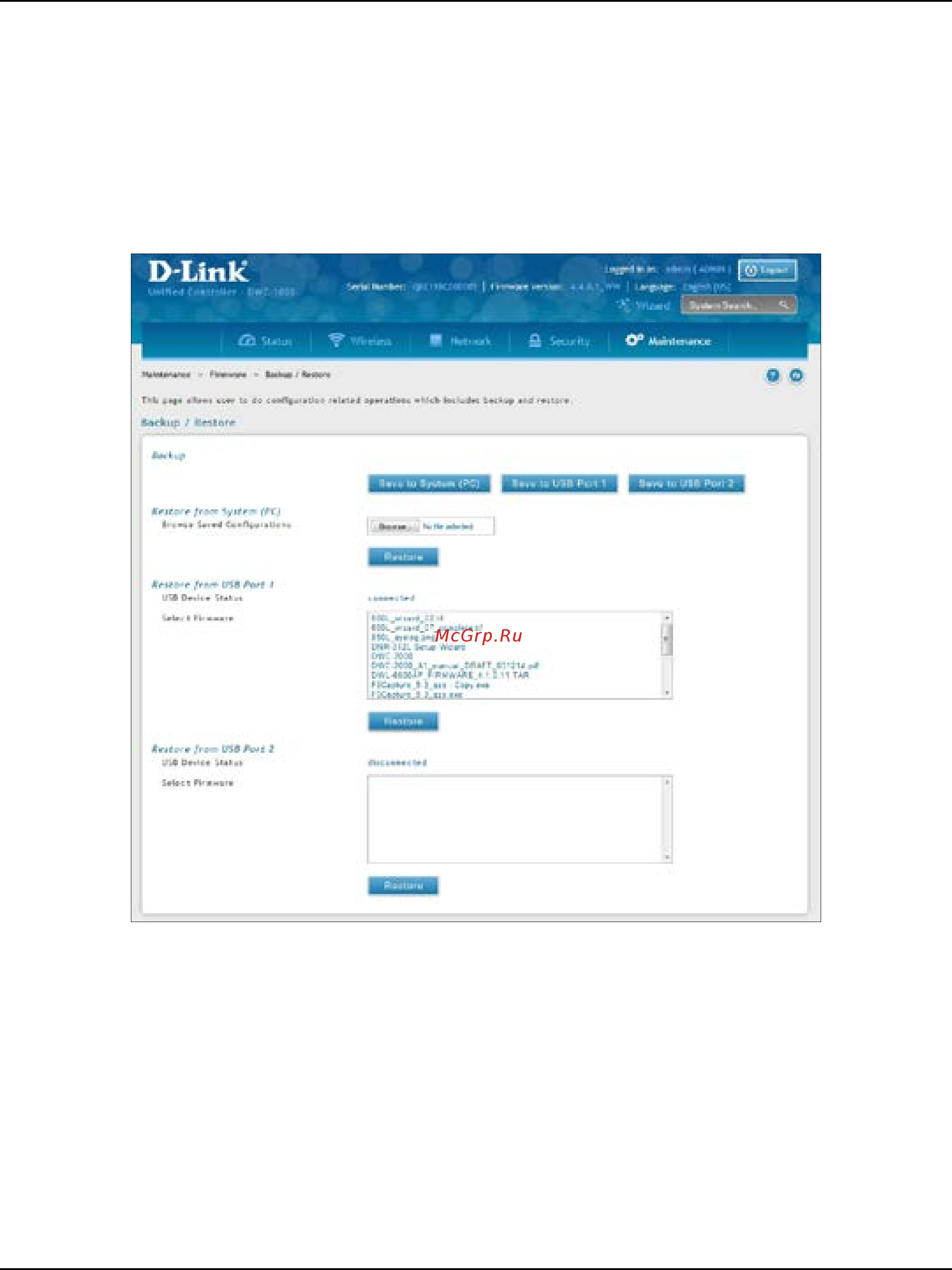

Restoring Conguration Settings
Path:Maintenance>Firmware>Backup/Restore
After you use the procedure on the previous page to back up a wireless controller’s conguration settings, you
can restore the settings using the following procedure.
1. Click Maintenance > Firmware > Backup/Restore.
2. IntheRestoretoSystem(PC)section,clicktheBrowse button. Use the Choose le dialog box to nd
the backup le, then click the le and click Open. You may also restore from a thumb drive connected
to one of the USB ports.
3. Click Restore. A message will appear.
4. Click OK to close the message and restore the conguration settings from the selected le.
