D-Link DWC-1000 User Manual 177

Section 5 - Advanced Network Conguration

Dening DsCP and Cos on each port

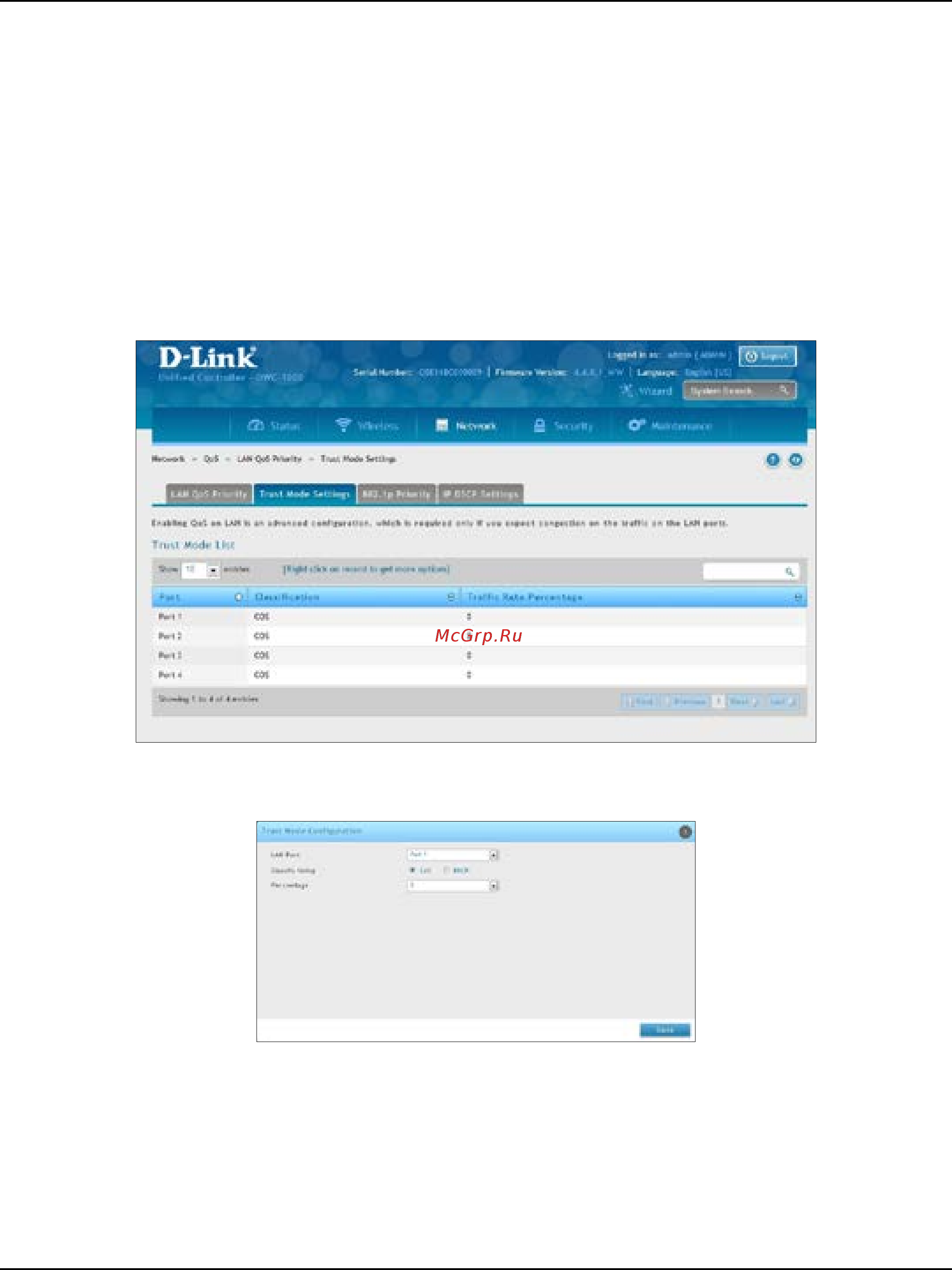

Path:Network>QoS>LANQoSPriority>TrustModeSetting

ChoosebetweenCoSorDSCPforthatport.Whenthereiscongestionontheport,theLANportwillcheckthe

value of one these elds in the packet and make a decision on the priority for that packet. Individual values for

DSCPandCoSandtheprioritythattheyshouldbegivenaresetbythePortCosMapping&PortDSCPMapping

pagesunderQoS.

1. Go to Network > QoS > LAN QoS Priority.OnthemiddlemenuontheLANQoSPrioritypage,click
