D-Link DWC-1000 User Manual 356
Section 10 - Troubleshooting

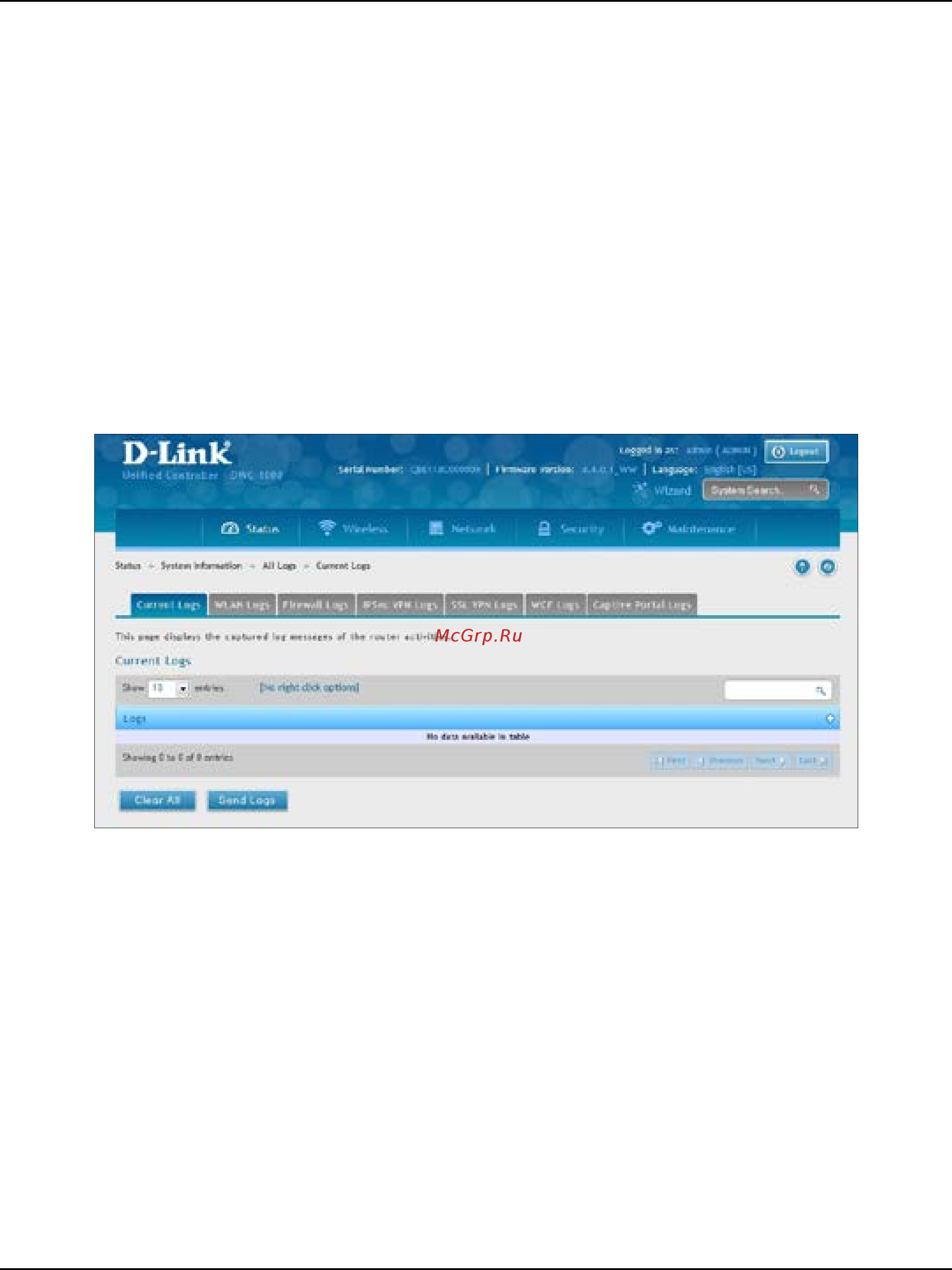

Current logs
Path:Status>SystemInformation>AllLogs>CurrentLogs
TheDisplayLogswindowallowsyoutoviewconguredlogmessagesfromthecontrollerastheyappear.Each
log will appear with a timestamp as determined by the controller's congured time. If remote logging such
as a Syslog server or e-mail logging is congured, the same logs are sent to the remote interface while being
displayed here.
Click Refresh to refresh logs or reload page again.
Click Clear All to remove all entries in the Display Logs screen.
Click Send Logs to send all logs in the Display Logs screen to precongured e-mail recipients.
