D-Link DWC-1000 User Manual 267

Section 7 - VPN

Client

To congure client mode:

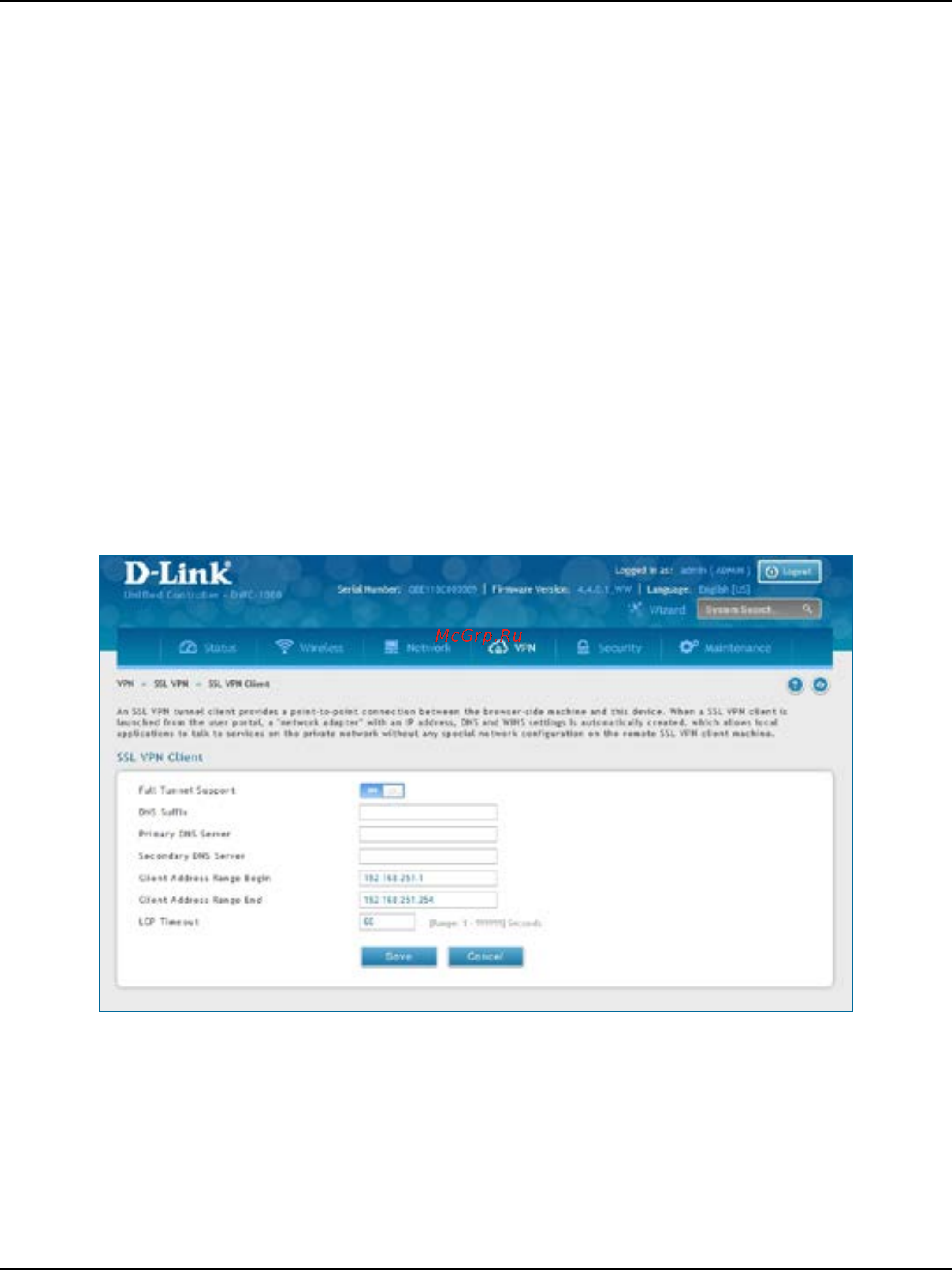

1. Click VPN > SSL VPN > SSL VPN Client.

Path:VPN>SSLVPN>SSLVPNClient

An SSLVPN tunnel client providesapoint-to-point connection between the browser-side machine and this

switch.WhenaSSLVPNclientislaunchedfromtheuserportal,a"networkadapter"withanIPaddressfromthe

corporate subnet, DNS and WINS settings is automatically created. This allows local applications to access services

ontheprivatenetworkwithoutanyspecialnetworkcongurationontheremoteSSLVPNclientmachine.

Itisimportanttoensurethatthevirtual(PPP)interfaceaddressoftheVPNtunnelclientdoesnotconictwith

physicaldevicesontheLAN.TheIPaddressrangefortheSSLVPNvirtualnetworkadaptershouldbeeitherina

dierentsubnetornon-overlappingrangeasthecorporateLAN.

Thecontrollerallowsfulltunnelandsplittunnelsupport.Fulltunnelmodejustsendsalltracfromtheclient

acrosstheVPNtunneltotheswitch.SplittunnelmodeonlysendstractotheprivateLANbasedonpre-

specied client routes. These client routes give the SSL client access to specic private networks, thereby

allowing access control over specic LAN services.

2. Toggle Full Tunnel Support to ON to support full tunnel or OFF to enable split tunnel.

3. EnteraDNSsuxtoassigntothisclient(optional).

3. EnteraprimaryandsecondaryDNSserveraddresses(optional).

4. EntertherangeofIPaddressesclientswillbeassigned(DHCP).

5. Next to LCP Timeout,setthevalueforLCPechointerval(inseconds).

6. Click Save.
