Port VlAns

Path:Network>VLAN>PortVLAN

After you enable the wireless controller’s VLAN function, use the Port VLAN page to congure the ports

participating in the VLAN.

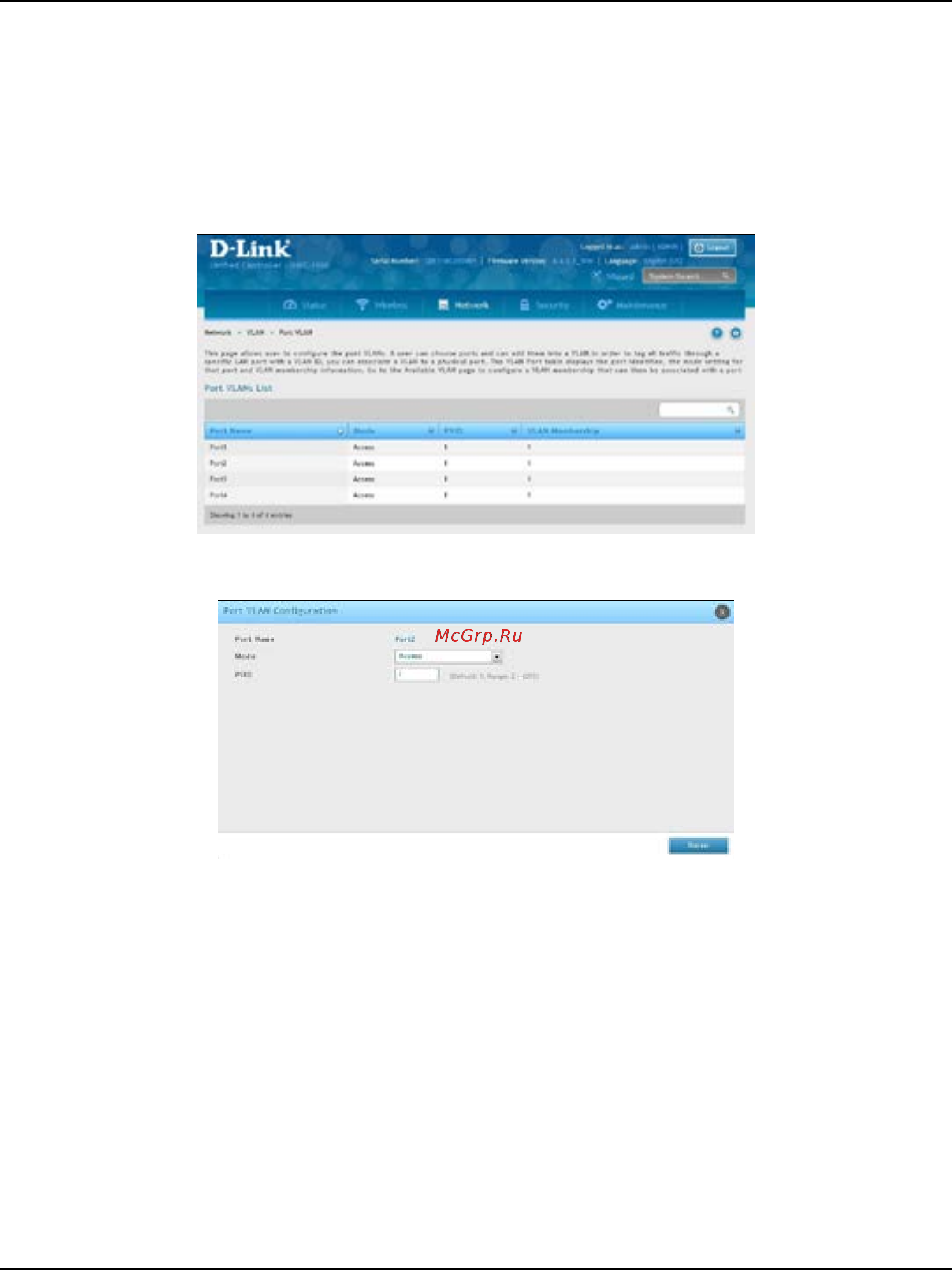

1. Go to Network > VLAN > Port VLAN.

2. Select the port and right-click Edit.

3. ChangeModeandPVID.Therearefourmodes:

• Access: Select to isolate this port from other VLANs. All data going into and out of the port is

untagged.TracthroughaportinaccessmodelookslikeanyotherEthernetframe.

• General: Select to allow the port to become a member of a user selectable set of VLANs. The port

sends and receives data that is tagged or untagged with a VLAN ID. If the data into the port is

untagged,itisassignedthedenedPVID.AlltaggeddatasentoutoftheportwiththesamePVID

will be untagged.

• Trunk: SelecttomultiplextracformultipleVLANsoverthesamephysicallink.Alldatagoing

into and out of the port is tagged. Untagged coming into the port is not forwarded, except for the

defaultVLANwithPVID=1,whichisuntagged.

• Interface:Selecttomakeitasastandaloneinterface.ManuallydenetheinterfaceIPaddress,

subnet mask, and gateway.

4. Click Save.
