D-Link DWC-1000 User Manual 280
Section 8 - Viewing Status and Statistics

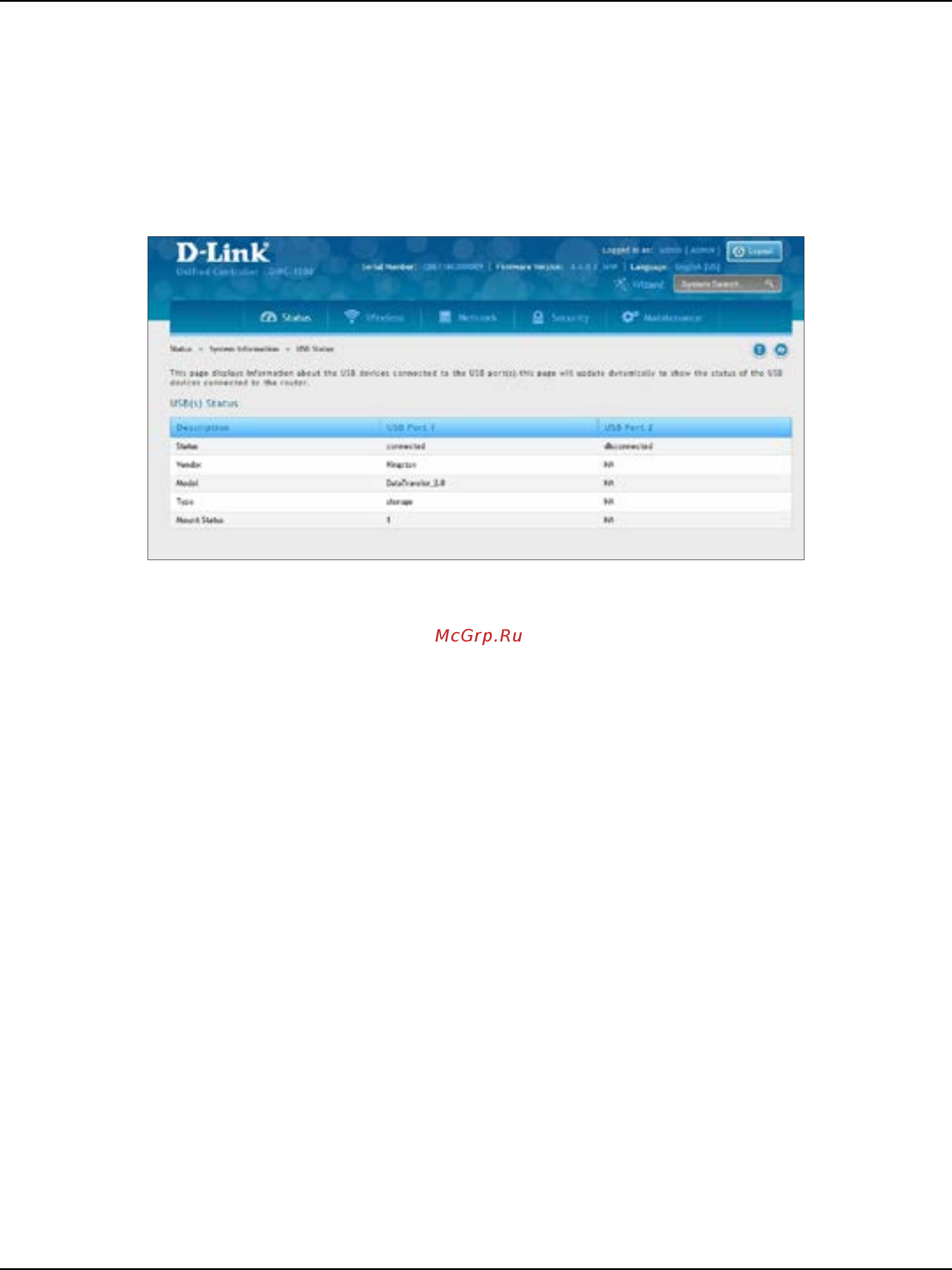

Viewing USB Status
Path:Status>SystemInformation>USBStatus
The USB Status page summarizes the USB devices connected to the wireless controller. The wireless controller
allowstoconnectUSBprinterandUSBdisk(forrmwareupgradeonly)directly.TherearetwoUSBports.
