D-Link DWC-1000 User Manual 24
Section 3 - Basic Conguration

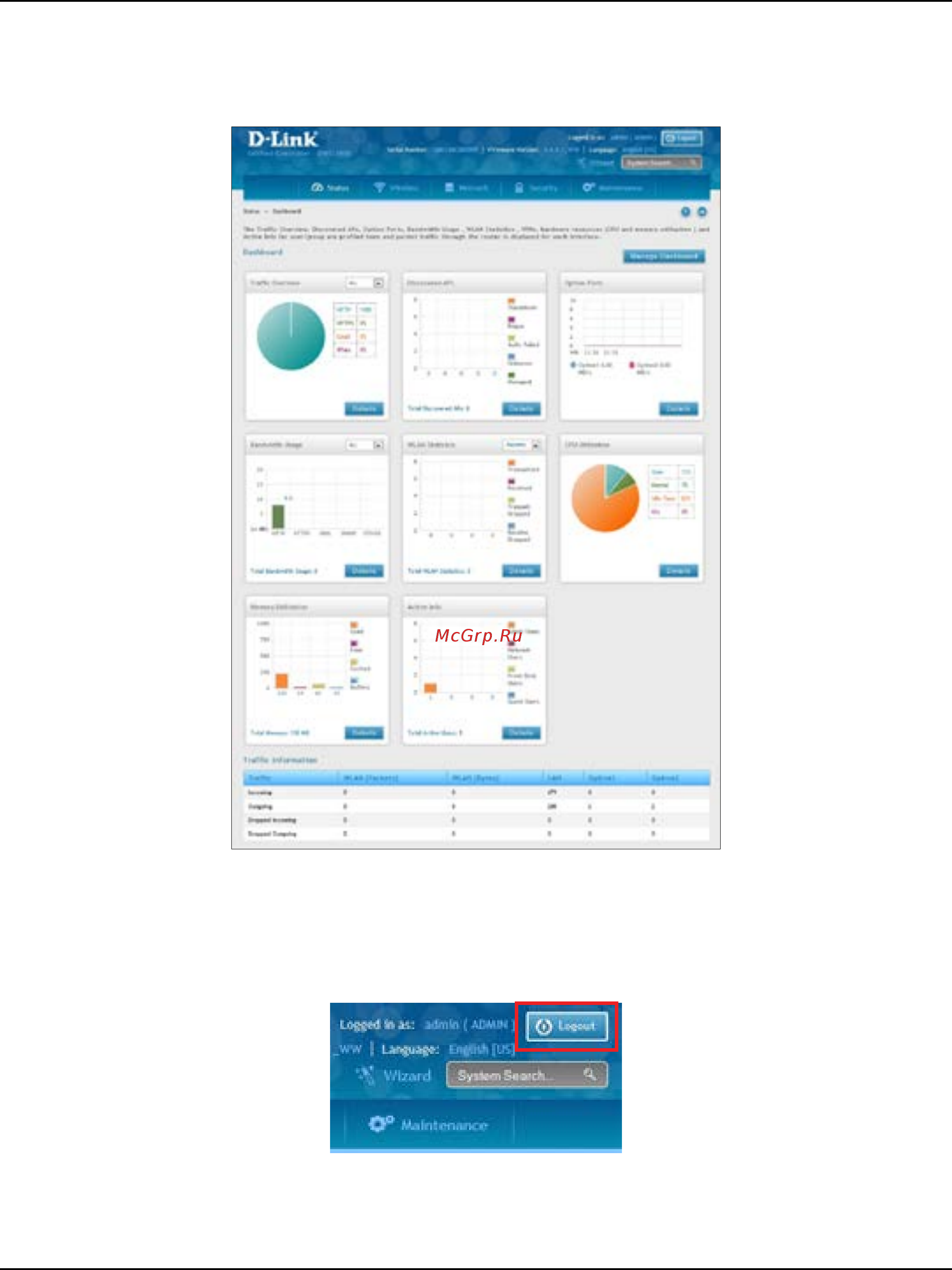

4. Click Login. The web management interface opens with the System Status page. This page displays
general, LAN, and WLAN status information. You can return to this page at any time by clicking Status >
Dashboard.
5. To log out of the web management interface, click the Logout icon, which is in the top-right corner of
thepageintheSystemMenuarea.
