D-Link DWC-1000 User Manual 38
Section 3 - Basic Conguration
5. Click Wireless > Access Point > SSID Proles.
6. Select an SSID by right-clicking on it and clicking Edit. The following pop-up page will appear. Select
Local and click Save.

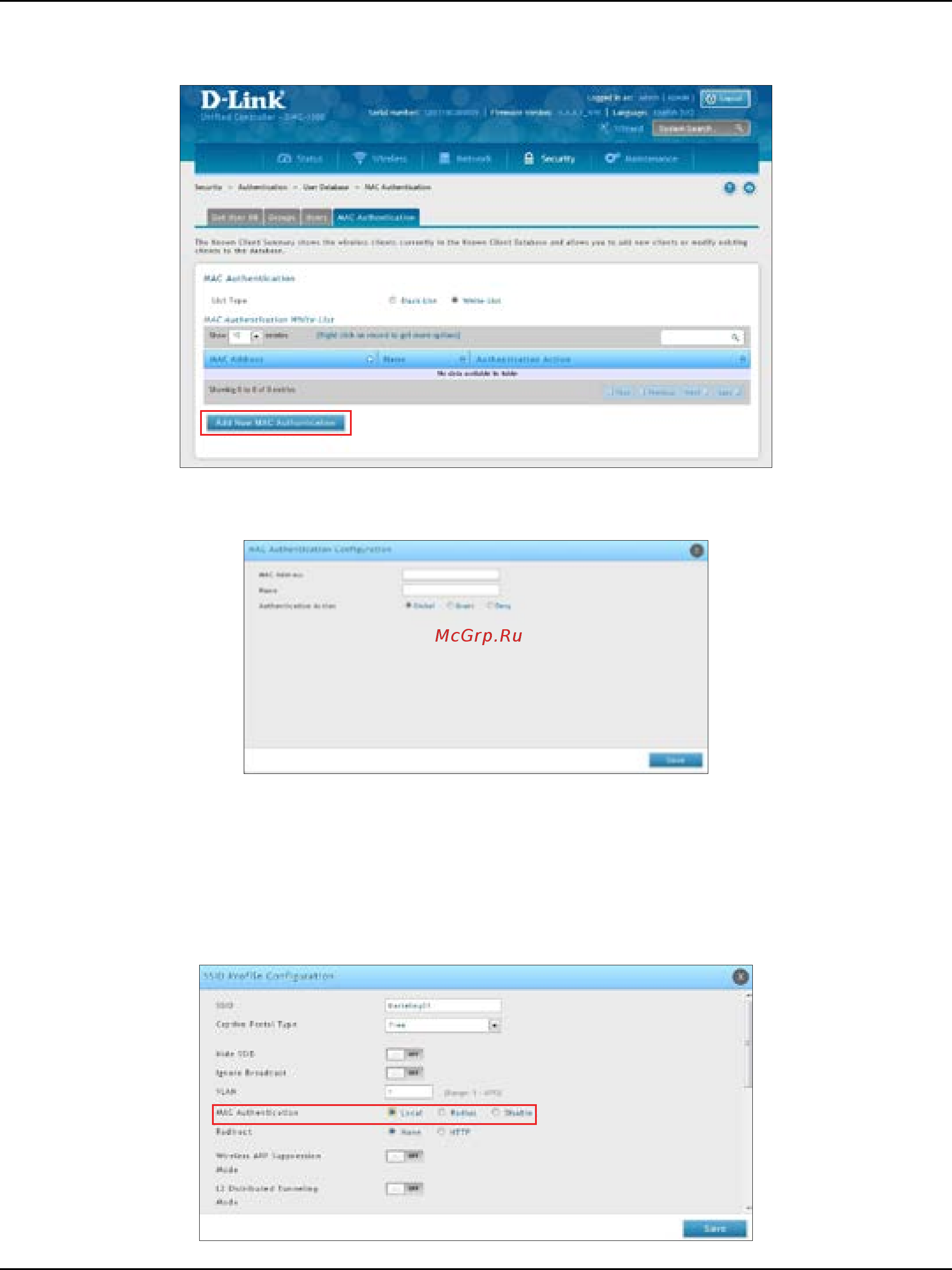

4. Click Add New MAC Authentication.Fillintheclient’sMACaddressandname,andthenclickSave.
3. Click Security > Authentication > User Database > MAC Authentication.TheMACAuthentication
setting page will appear. The List Type will display what your selection was in Step 2.
