D-Link DWC-1000 User Manual 41
Section 3 - Basic Conguration
2. Add captive portal users

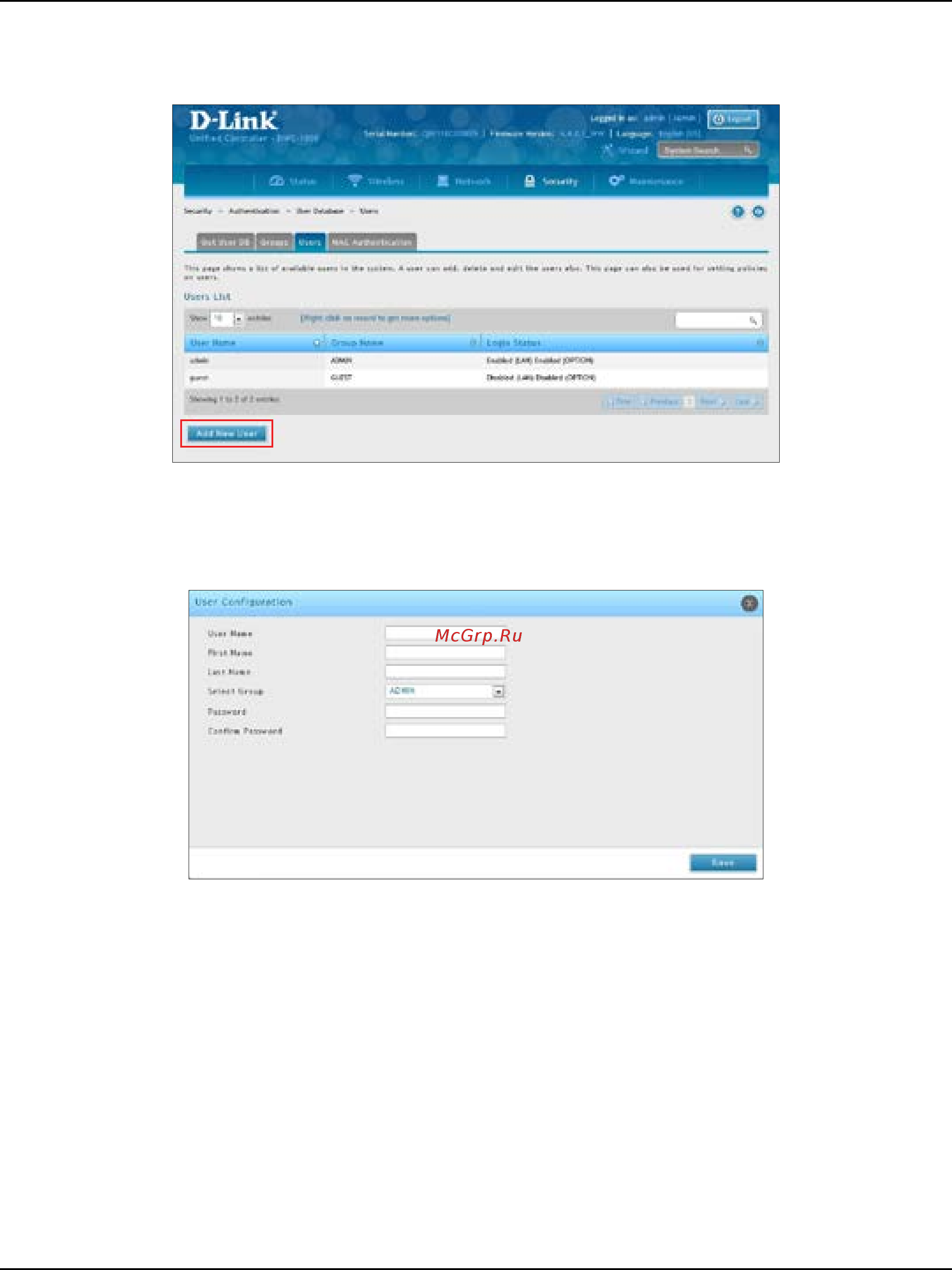

a. Go to Security > Authentication > User Database > Users. The Users List will appear.
b. Click Add New User. The User Conguration page will appear.
