D-Link DWC-1000 User Manual 43
Section 3 - Basic Conguration

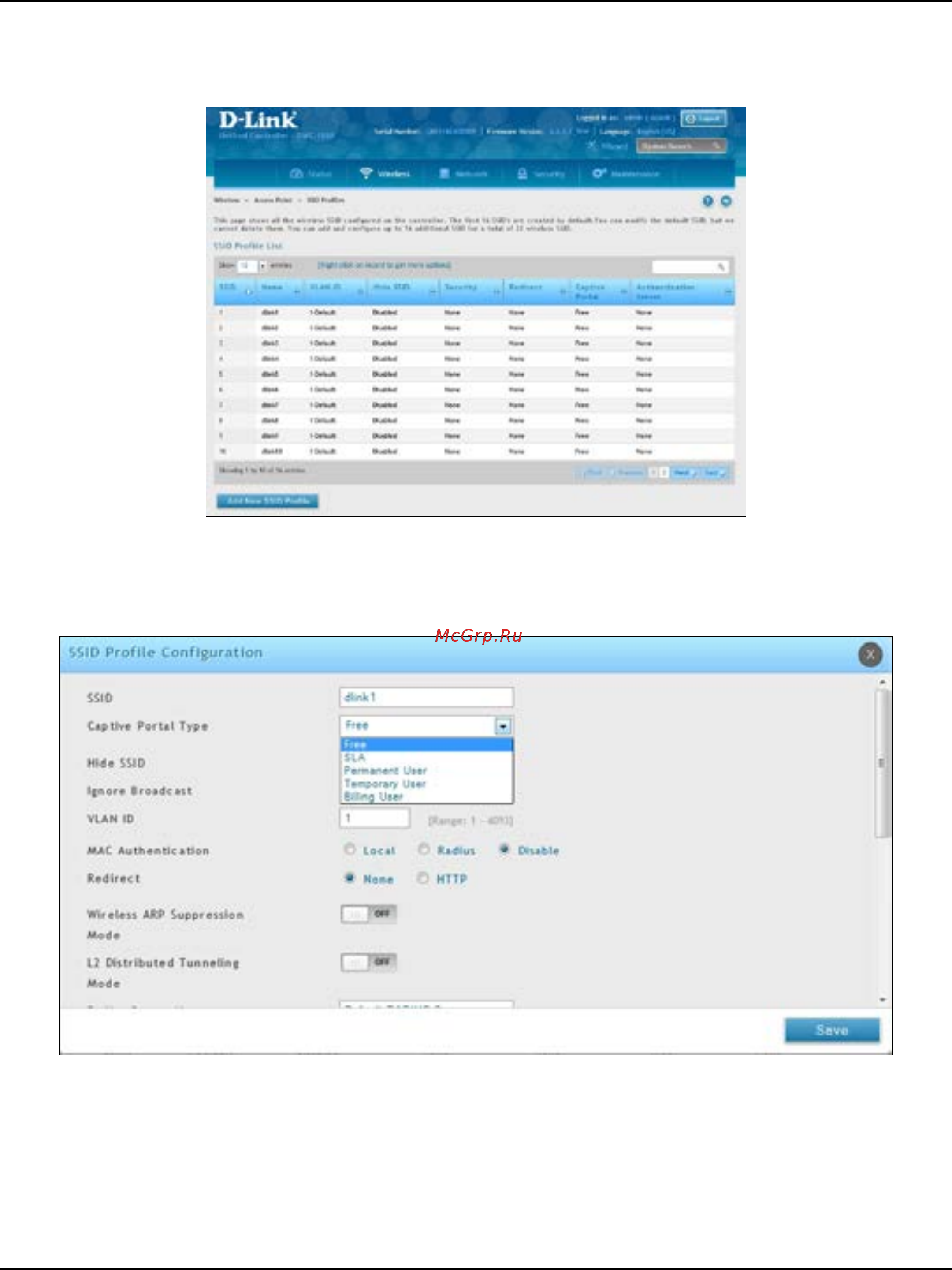

3.AssociatethecaptiveportalgrouptoaSSIDProle
a. Click Wireless > Access Point > SSID Proles.
b. UndertheSSIDcolumn,selectanSSIDthatwillusetheCaptivePortalfunctionbyright-clicking
on it and clicking Edit. The following pop-up page will appear.
