D-Link DWC-1000 User Manual 54
Section 3 - Basic Conguration

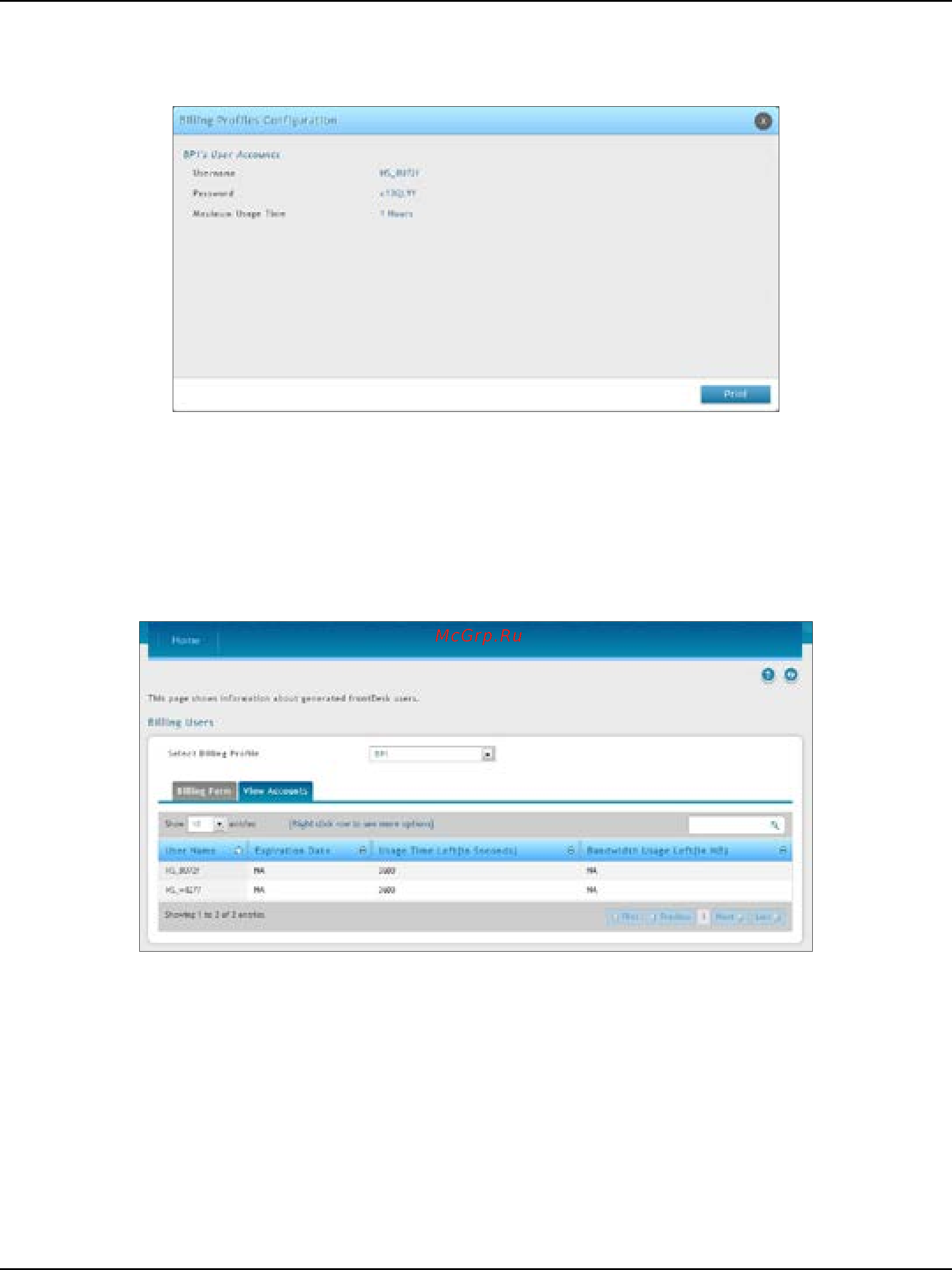

c. PrintouttheaccountinformationbyclickingPrint. The information would send to the internet
printer. Only one user account can be created at a time.
6. Monitoruseraccountstatus.
a. Monitor temporary account status and extend accountusageduration or volume. Click View
Account for reviewing generated temporary status.
