D-Link DWC-1000 User Manual 59
Section 3 - Basic Conguration
4. CreateanAPProle“BYOD”.AssociateSSIDsonthisprole.
a. Go to Wireless > Access Point > AP Prole.

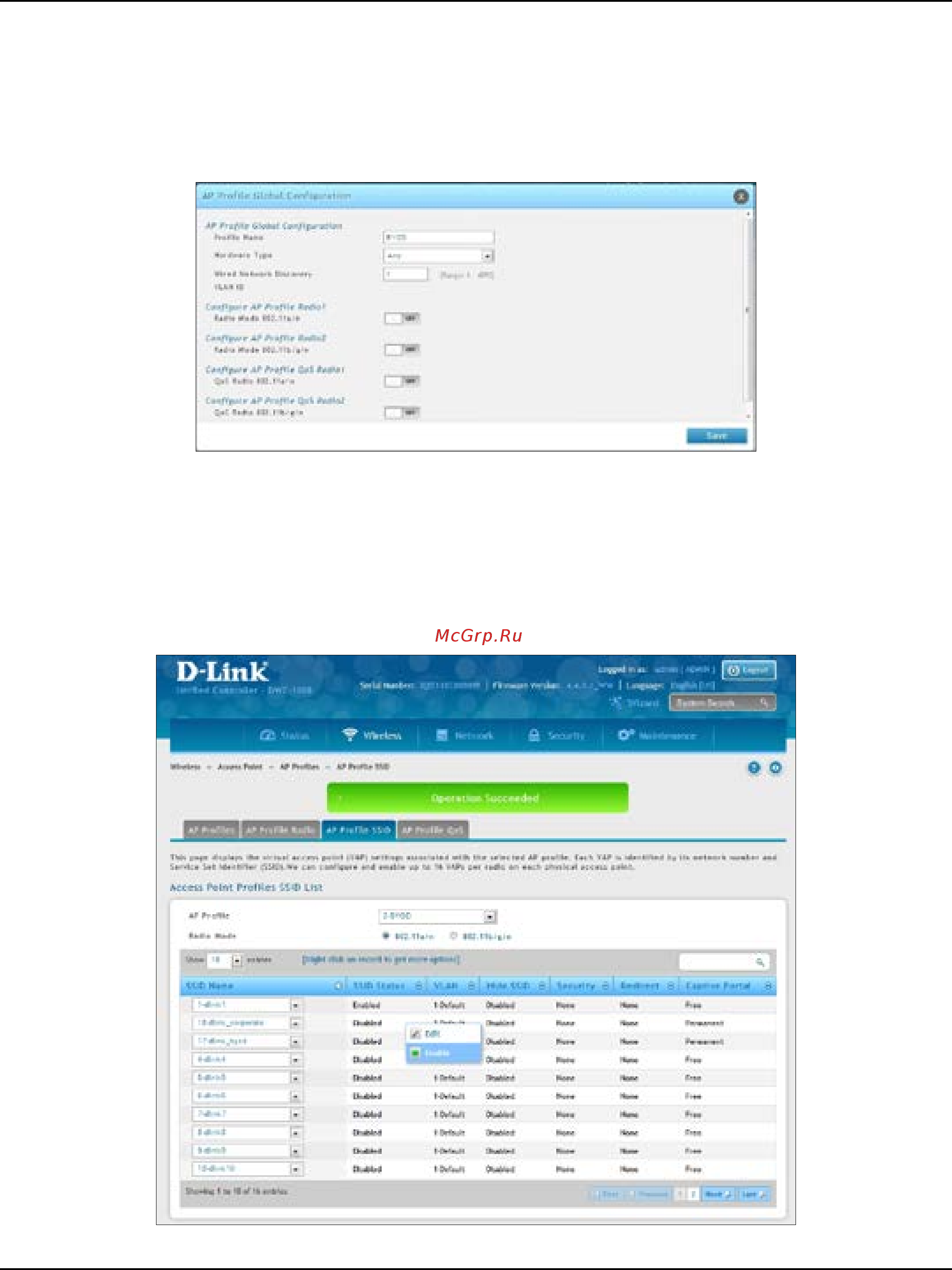

b. Click Add New AP Prole. Create a prole called BYOD.
c. Click Save.
d. Click the AP Prole SSID tab. Next to AP Prole, make sure BYOD is selected.
e. In the SSID list, right-click the dlink_corporate row and select Enable.
f. Right-clickthedlink_byod row and select Enable.
g. Both SSIDs are now associated with the BYOD SSID prole.
