ESIE06-05 Functional Control for a Standalone Unit
Part 2 – Functional Description 2–113
3
2
4
5
1

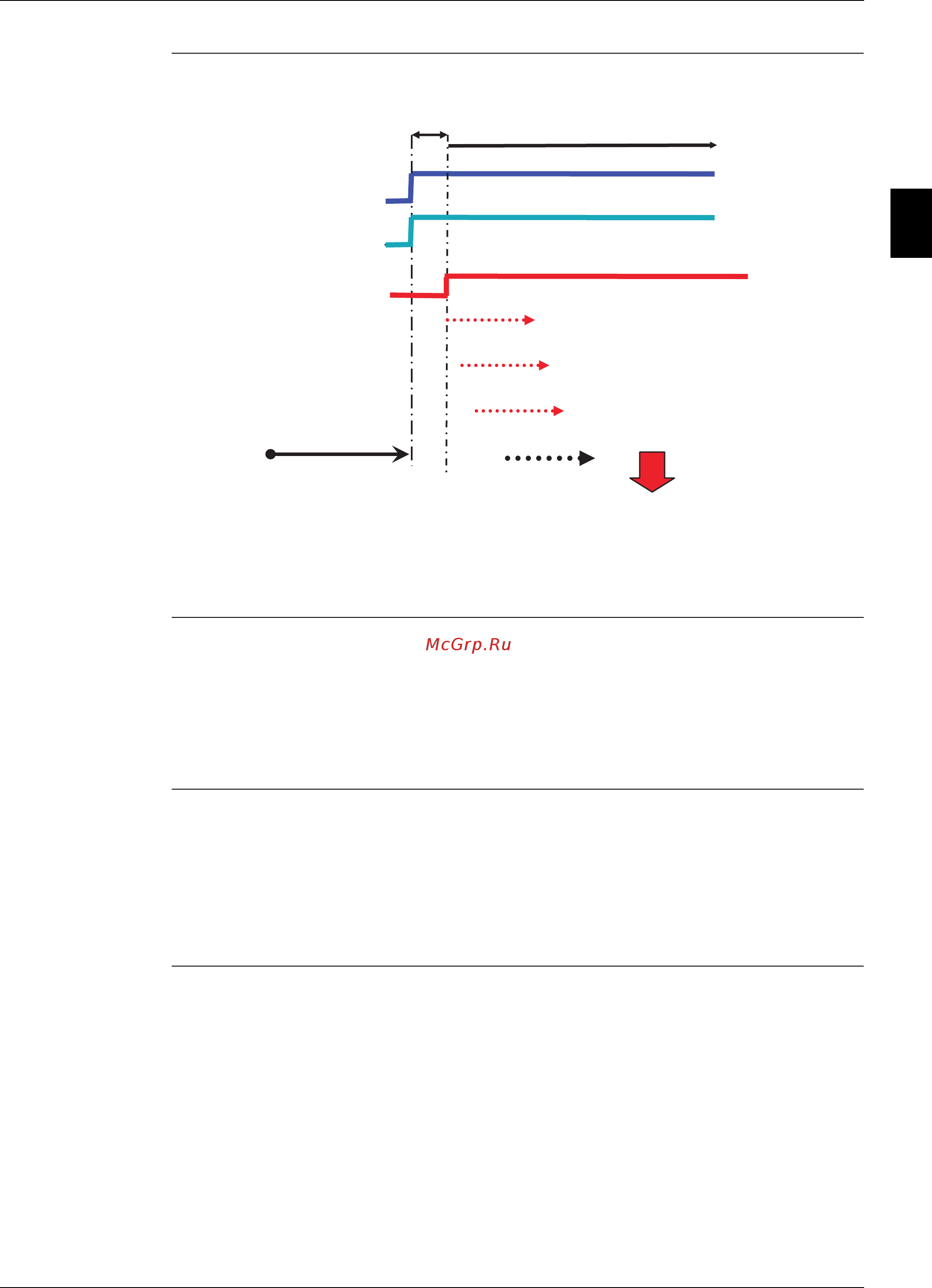

Startup sequence The unit startup sequence is described in the following schematic overview.
■ If there is a Download signal, turn off the designated compressor after duration of “Compressor
minimum running time”.
■ If only the first compressor is running, after duration of the “Compressor minimum running time”
Thermo-OFF.
Remote cooling or
heating
Only applicable on heat pump units.
This function allows switching from cooling to heating mode trough a remote switch connected to one
of the digital inputs.
For details about the possible settings of the digital inputs refer to the chapters about the changeable
digital inputs and the service menu.
Dual setpoint This function allows switching between two set-points, with a switch.
The actual setpoint can also be influenced by the floating setpoint function.
The set-points can be set in the according menu, refer to the chapter about the set-points menu.
For details about the possible settings of the digital inputs refer to the chapters about the changeable
digital inputs and the service menu.
ON
OFF
ON
OFF
Fan
Compressor
(3 seconds)
Thermostat control
Start condition met
ON
OFF
(compreesor with
highest priority)
2
nd
start-up compressor :ON
3
rd
start-up compressor :ON
4
th
start-up compressor :ON
While giving a Download signal
Pump lead time
