Pre-Test Run Checks ESIE06-05
4–36 Part 4 – Commissioning and Test Run
3
1
4
5
1.21 External Static Unit Pressure: EWYQ230-250DAYN (P-B)
External Static
Pressure

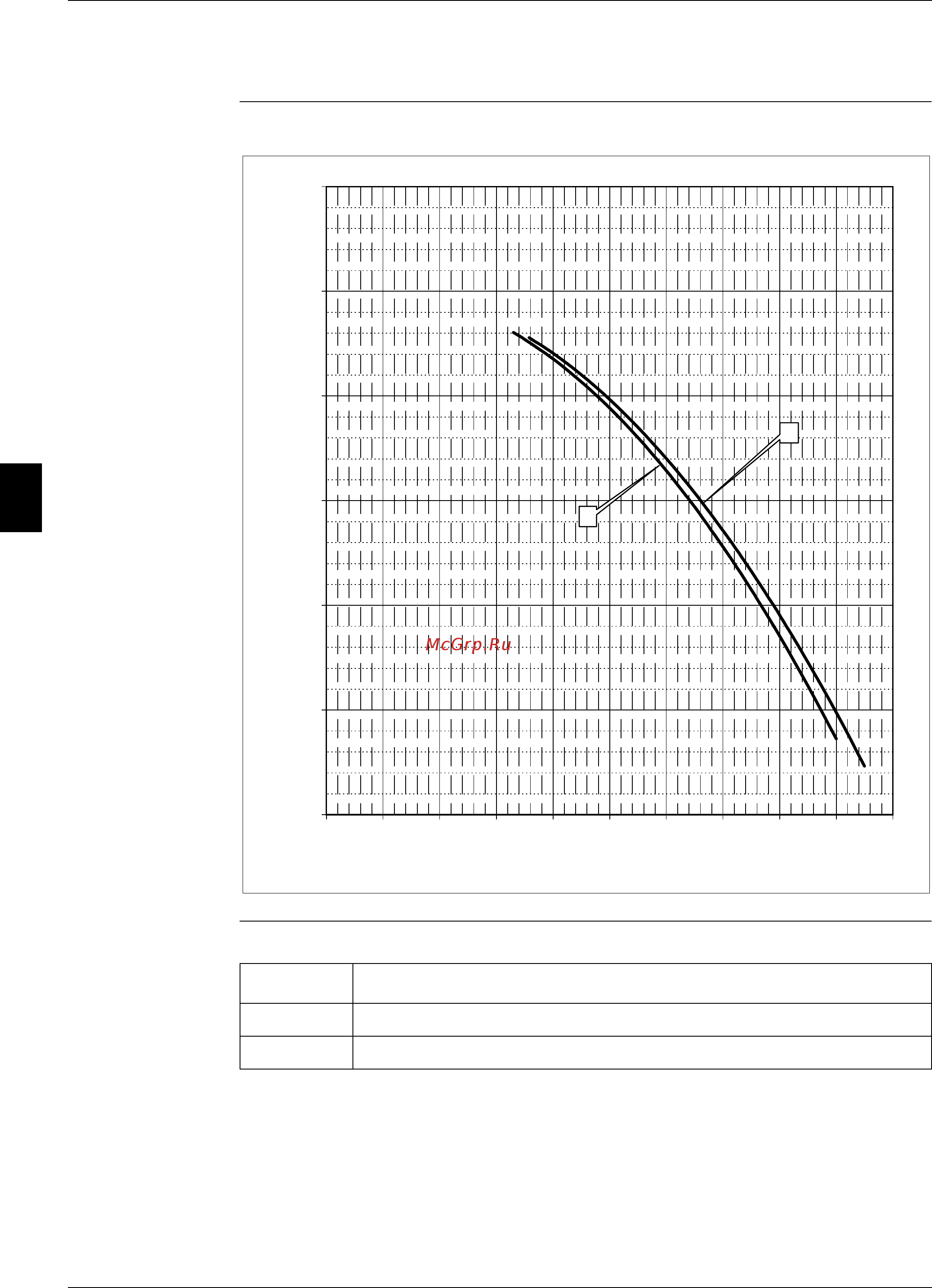

The illustration below shows the water pressure drop through evaporator for EWYQ230-250DAYN
(P-B).
Symbols The table below describes the symbols.
Selecting a flow outside the curves can cause damage to or malfunction of the unit. See also
minimum and maximum allowed water flowrange. See "Technical Specifications:
EWYQ080-250DAYN" on page 1–12.
0
50
100
150
200
250
300
0 100 200 300 400 500 600 700 800 900 1000
WaterFlowUnit[l/min]
ExternalStaticPressure[kPa]
1
2
Symbol Description
(1) EWYQ230 DAYN*+0PSP
(2) EWYQ250 DAYN*+0PSP
