Daikin EWYQ230DAYN [458/524] Electrical connections for sj240 300
![Daikin EWYQ230DAYN [458/524] Electrical connections for sj240 300](/views2/1657857/page458/bg1ca.png)
Compressor electrical connections and wiring ESIE06-05
3–58 Part 3 – Troubleshooting
3
1
3
4
5

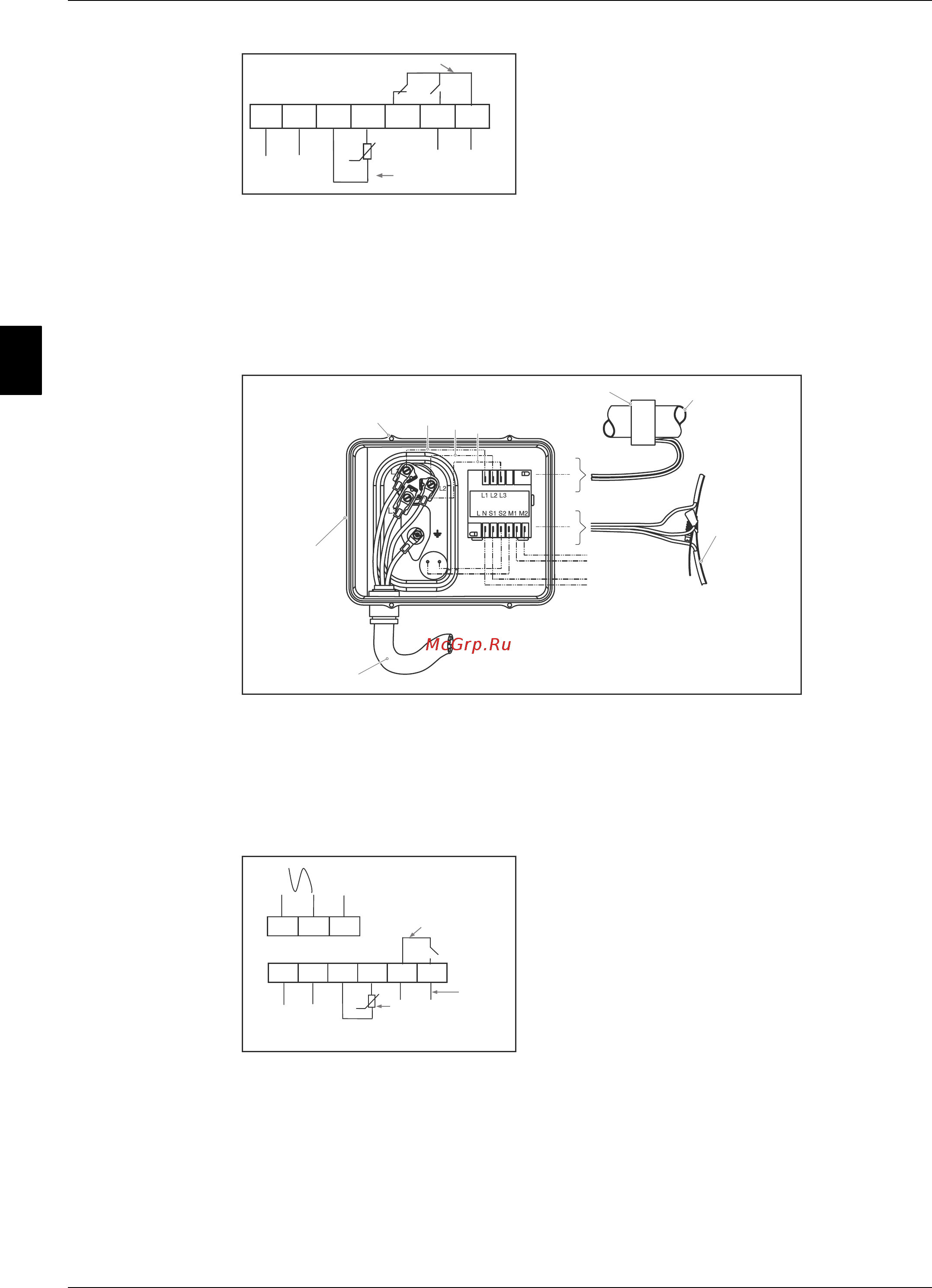

11.4 Electrical connections for SJ240-300
Electrical power is connected to the compressor terminals by the diameter 4.8 mm (3/16”) screws. The
maximum tightening torque is 3 Nm. Use a 1/4” ring terminal on the power leads.
The protection rating of the terminal box is IP54.
11.5 Electronic protection module wiring
The motor protection module comes preinstalled within the terminal box. Phase sequence protection
connections and thermistor connections are pre-wired. The module must be connected to a power
supply of the appropriate voltage.
LN1 2 1412 11
Internal control contact
Safety
circuit
Thermistor
connection
Module power
24 or 230 vac
Cover holding screws (x4)
Torque: 2.2 N.m.
Black
Blue
Brown
Discharge gas thermostat
Discharge gas
pipe
Belt type
crankcase
heater
M1, M2
Control circuit
Power supply
Power supply
Terminal
box
LNS1S2M1M2
L1 L2 L3
Phase sequence input
Internal control contact
Black Blue Brown
Safety
circuit
Thermistor
connection
Module power
24 or 115/230 vac
