3.9.4 Floating setpoint - CH AI MAX VALUE

Introduction The CH AI MAX VALUE mode can be used to modify the setpoint in function of an external signal. The

user is able to choose to use the floating setpoint or not. The result of using the CH AI MAX VALUE

mode is that the unit will change setpoint according to the external signal. The floating setpoint

parameter and functions can be set in the user/floating setpoint menu.

Functional

description

Explanation When the external signal is at maximum value, the actual setpoint will be the setpoint plus the

maximum value. When the external signal is at minimum value, the actual setpoint will be equal to the

setpoint. Between the minimum and maximum external signal, the actual setpoint will change

according to the signal.

Remark : when you use the floating setpoint, the value of the setpoint on the readout and setpoint

menu can be different. The readout screen will show the calculated value and the setpoint screen the

set value.

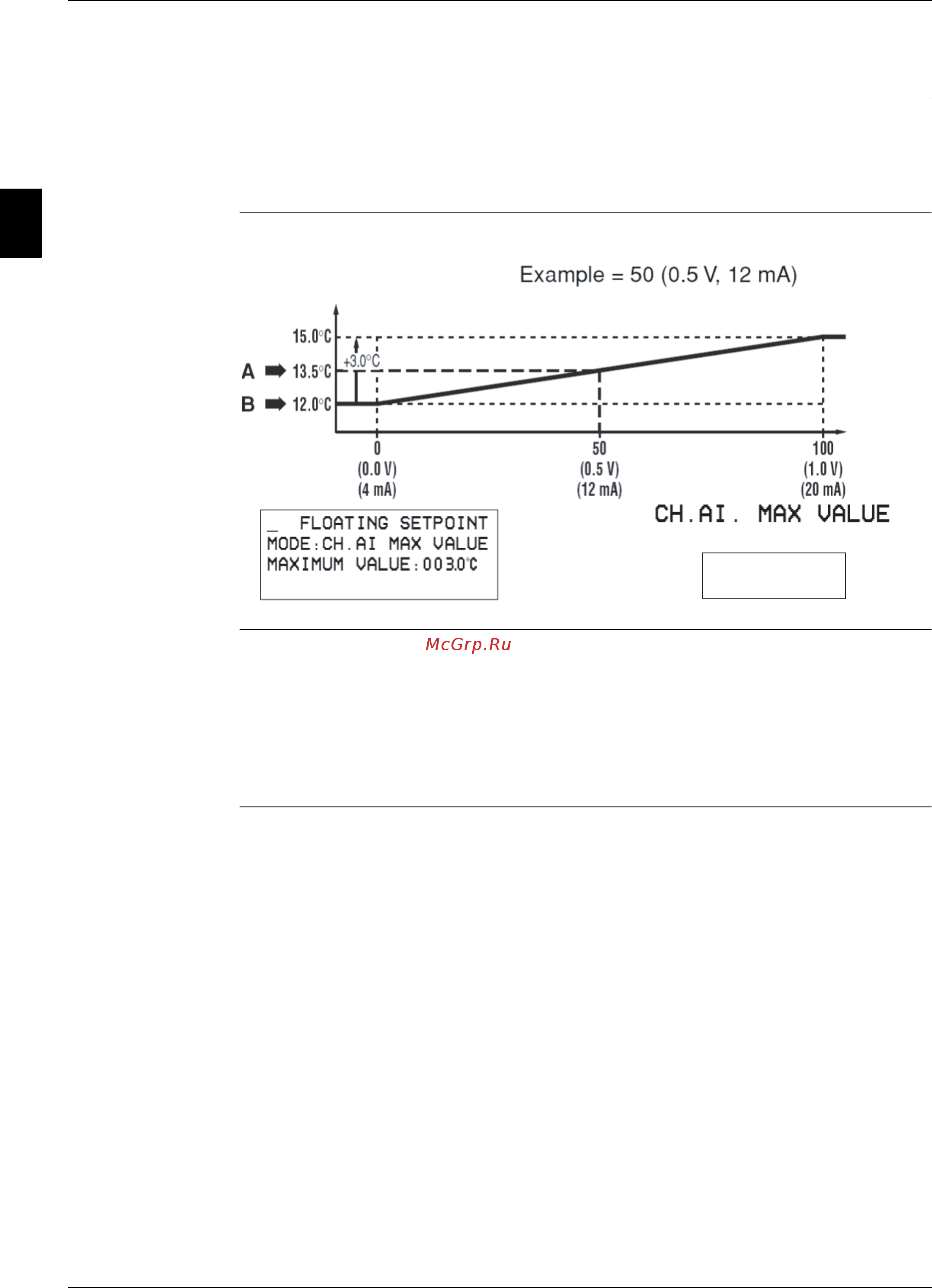

A: Active setpoint

B: Setpoint
