The Digital Controller For Multiscroll Chillers ESIE06-05
2–10 Part 2 – Functional Description
3
1
2
4
5
2.2 The Controller
Digital Controller The EWAP080-260DAYN and EWYP080-250 DAYN units are equipped with a digital controller,
offering a user-friendly way to configure, use and maintain the unit.
The digital controller consists of:
■ Graphic LCD display
■ 6 keys

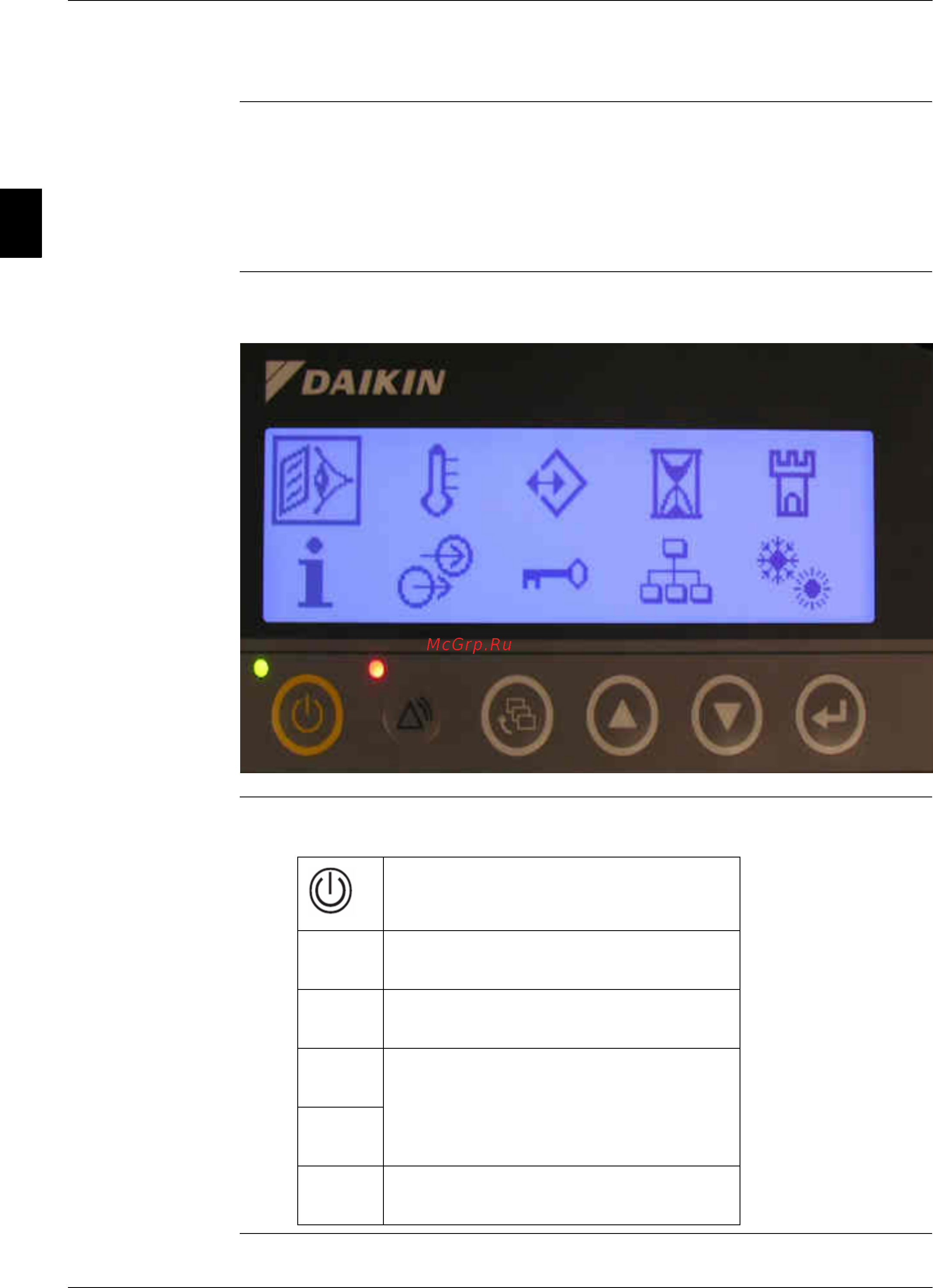

Front Panel The illustration below shows the front panel of the controller.
Keys The table below contains an overview of the keys and their functions.
key to start up or to shut down the unit
p
key to enter the safeties menu or to reset an
alarm
f
key to enter the main menu or to return to the
previous menu
g
keys to scroll up or down through the screens of
a menu or to raise, or lower a setting
h
q
key to confirm a selection or a setting
