ESIE06-05 Pre-Test Run Checks
Part 4 – Commissioning and Test Run 4–29
3
4
5
1
1.16 External Static Unit Pressure: EWAQ080-100 DAYN (P-B)
External Static
Pressure

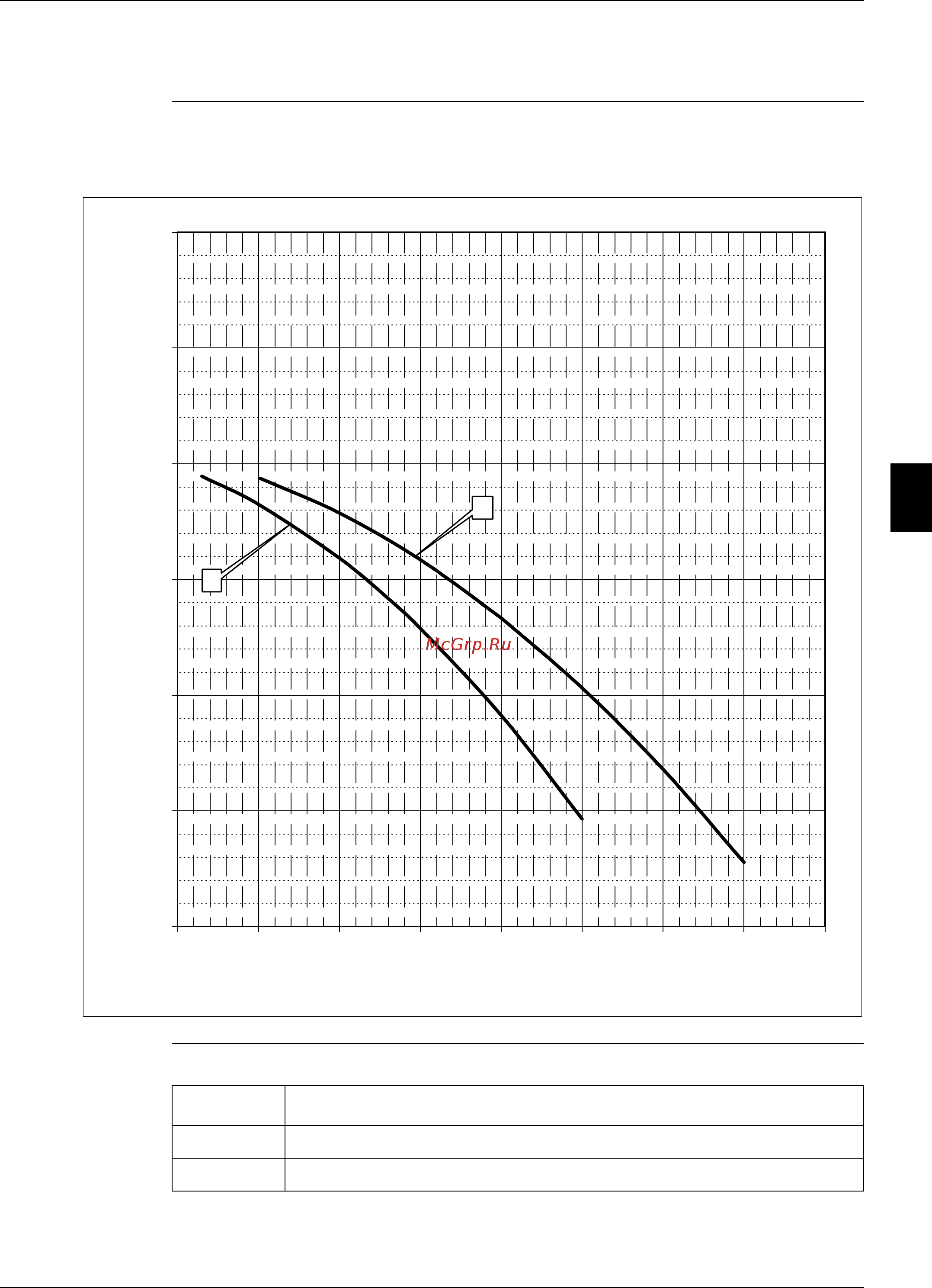

The illustration below shows the water pressure drop through evaporator for EWAQ080-100 DAYN
(P-B).
Symbols The table below describes the symbols.
100 150 200 250 300 350 400 450 500
WaterFlow[l/min]
0
50
100
150
200
250
300
ExternalStaticPressureUnit[kPa]
1
2
Symbol Description
(1) For EWAQ080DAYN* + 0PSP
(2) For EWAQ100DAYN* + 0PSP
