Procedure for Software Upload ESIE06-05
3–34 Part 3 – Troubleshooting
3
1
3
4
5

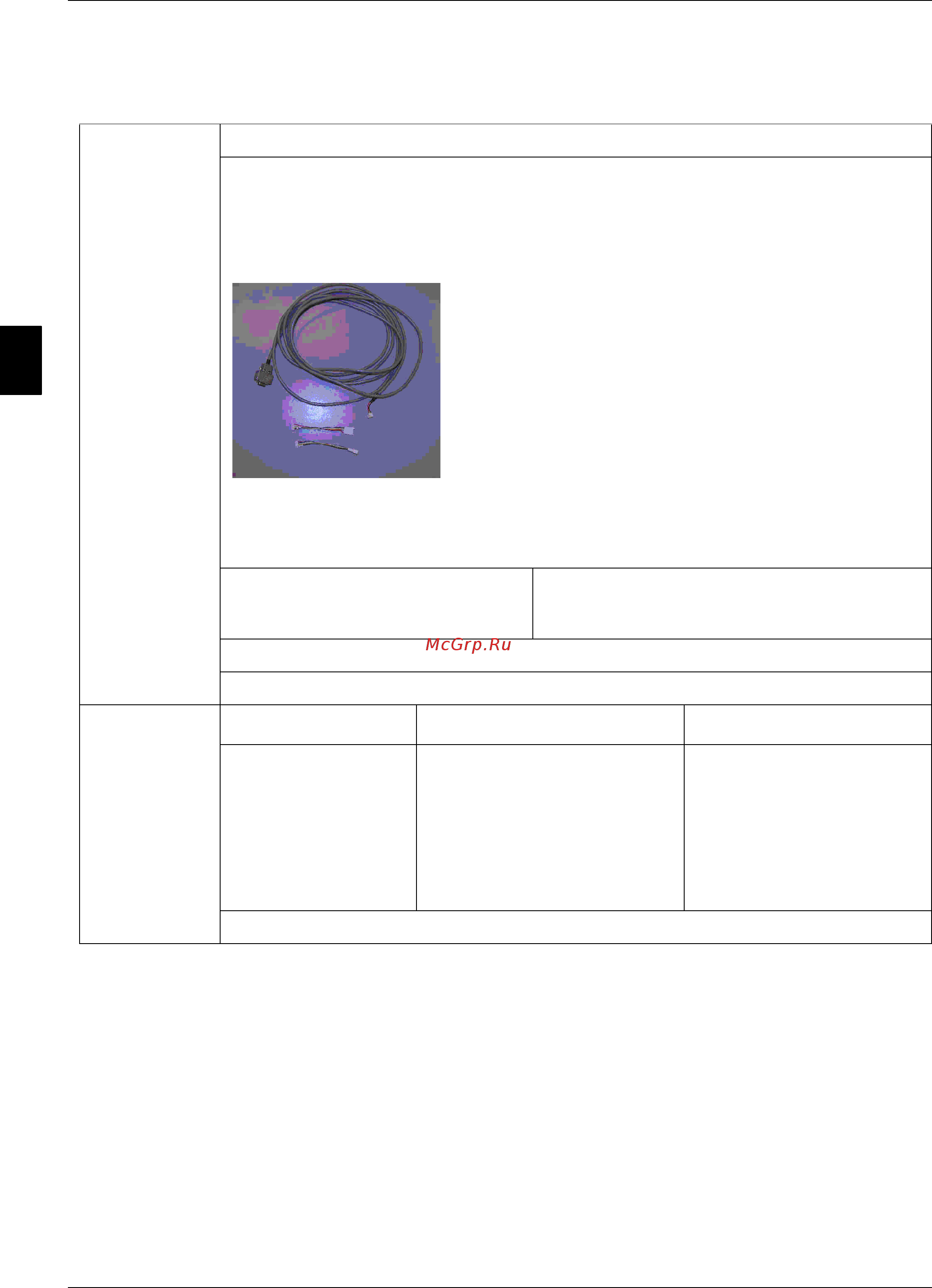

4.2 Overview hardware software/Source files
1. Hardware Laptop PC (windows 2000 or windows xp)
Serial cable:
DENV part number: 999480P
Description: “RS-232C Cable included driver assy”
This cable exists out of 2 pieces:
RS-232C Cable incl drive assy
Adapter cable with label “R”
(Remark: Similar cables of VRV have
labels “A”, instead of “R”)
Use in combination with PCASOflash software
Remark: A USB / RS232 can be used to connect the serial cable to a USB port.
Power supply (230VAC)
2. Software
SW program Source files Source files example
PCASOflash Main PCB Logic file (*.lgc)
Remocon PCB Logic file (*.lgc)
Language file (*.lng)
Parameter file (*.par)
Multiple scroll chillers:
sp1710_XXX.lgc
SP1734_XXX.lgc
SP1734_XXX.lng
4PW30697-X-XX.par
