ESIE06-05 Pre-Test Run Checks
Part 4 – Commissioning and Test Run 4–15
3
4
5
1
1.8 Water Pressure Drop through Evaporator: EWYQ130-210DAYN(N-P-B)
Water pressure
drop

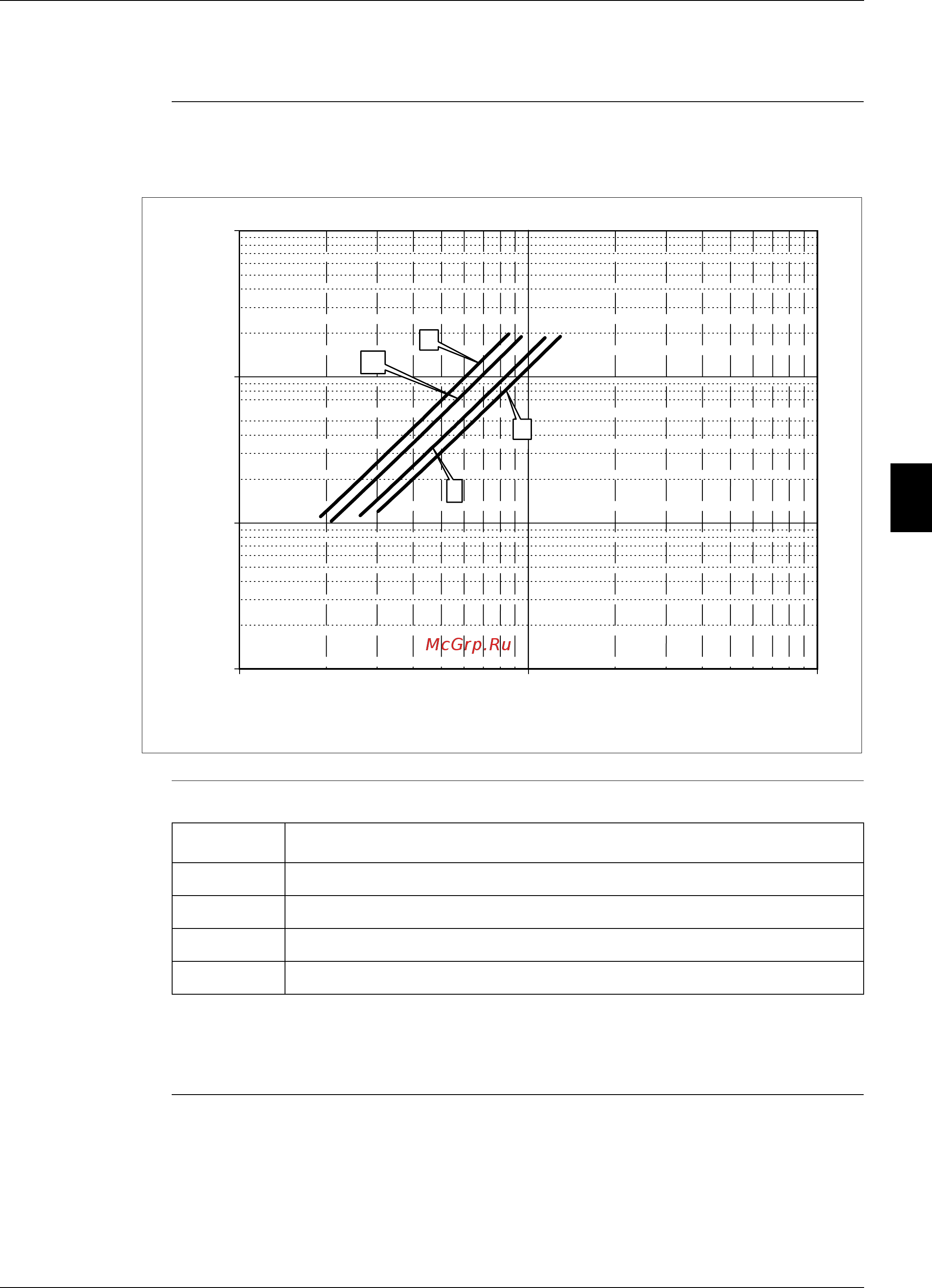

The illustration below shows the water pressure drop through evaporator for
EWYQ130-210DAYN(N-P-B).
Symbols The table below describes the symbols.
Selecting a flow outside the curves can cause damage to or malfunction of the unit. See also
minimum and maximum allowed water flowrange. See "Technical Specifications for options:
EWAQ180-210DAYN" on page 1–10.
1
10
100
1000
100 1000 10000
WaterFlowEvaporator[l/min]
PressureDropEvaporator[kPa]
4
3
1
2
Symbol Description
(1) For EWYQ130DAYN*
(2) For EWYQ150DAYN*
(3) For EWYQ180DAYN*
(4) For EWYQ210DAYN*
