ESIE06-05 Pre-Test Run Checks
Part 4 – Commissioning and Test Run 4–35
3
4
5
1
1.20 External Static Unit Pressure: EWYQ130-210DAYN (P-B)
External Static
Pressure

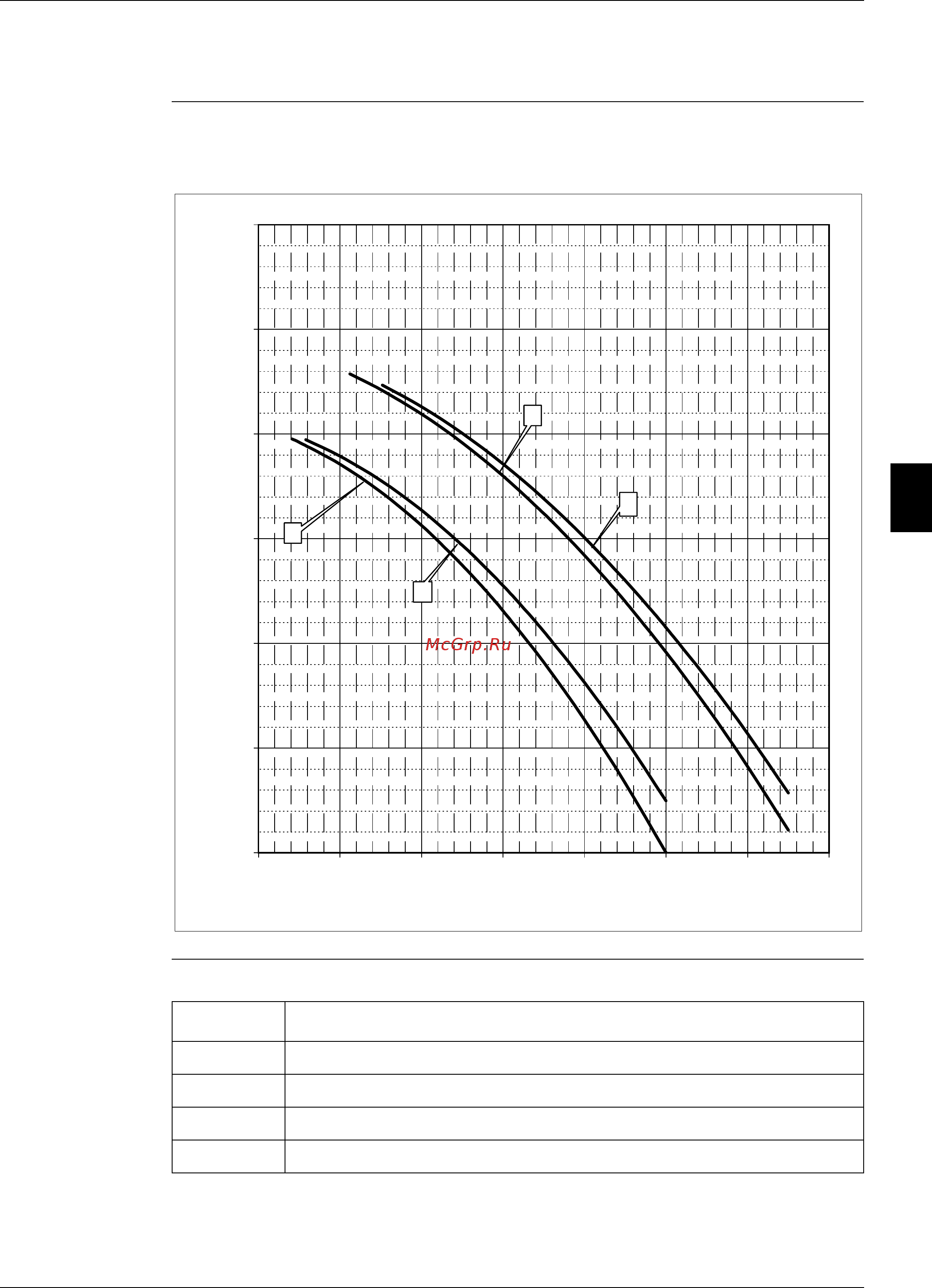

The illustration below shows the water pressure drop through evaporator for EWYQ130-210DAYN
(P-B).
Symbols The table below describes the symbols.
Selecting a flow outside the curves can cause damage to or malfunction of the unit. See also
minimum and maximum allowed water flowrange. See "Technical Specifications:
EWYQ080-250DAYN" on page 1–12.
0
50
100
150
200
250
300
150 250 350 450 550 650 750 850
WaterFlowUnit[l/min]
ExternalStaticPressure[kPa]
3
4
1
2
Symbol Description
(1) EWYQ130 DAYN*+0PSP
(2) EWYQ150 DAYN*+0PSP
(3) EWYQ180 DAYN*+0PSP
(4) EWYQ210 DAYN*+0PSP
