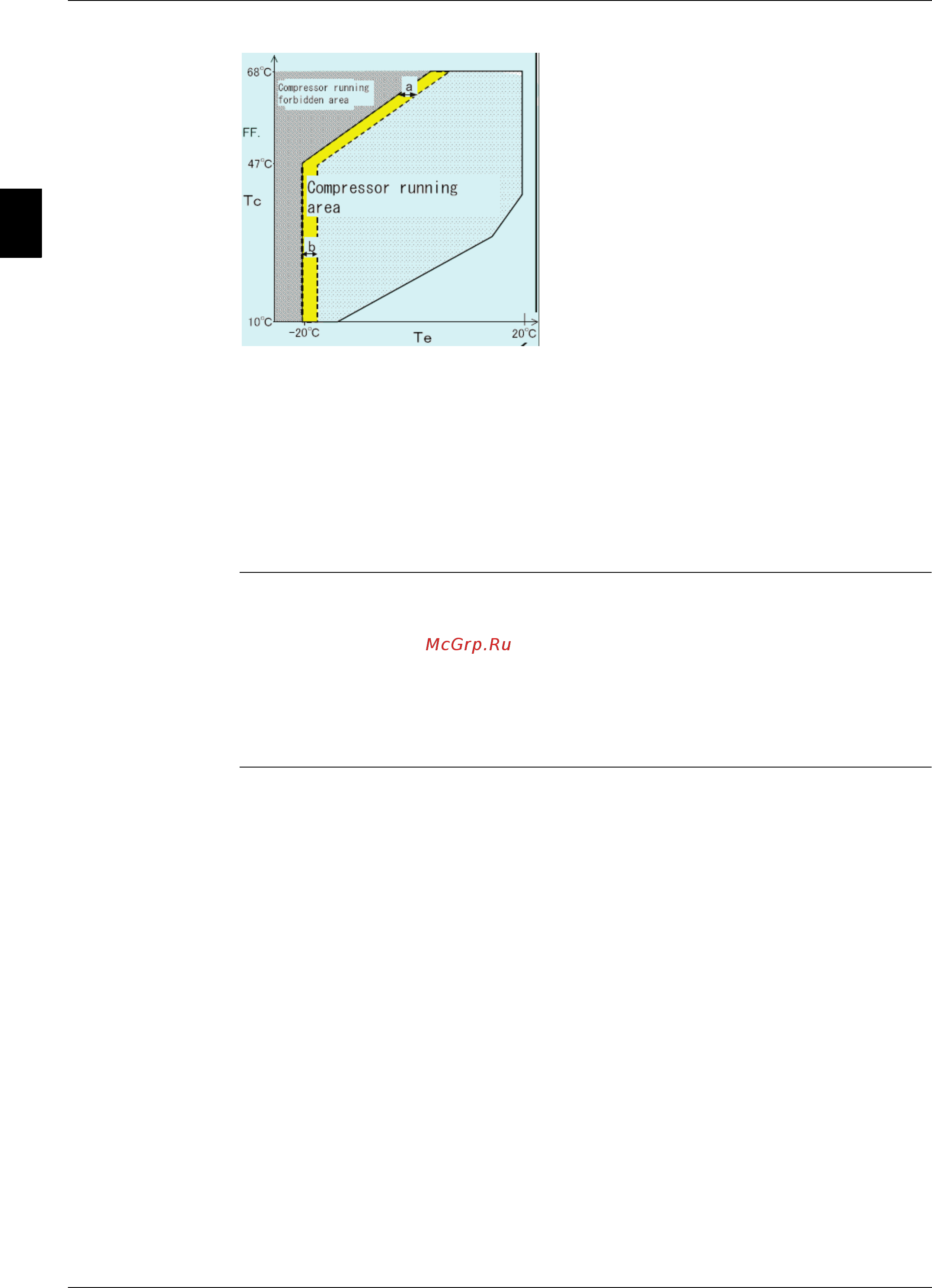

Functional Control for a Standalone Unit ESIE06-05
2–118 Part 2 – Functional Description
3
1
2
4
5
Remark:
5 This control is bypassed for 30 seconds at 1st compressor start-up after thermo-OFF.
6 During the defrost control, this function is disabled.
7 This control is bypassed for 120 seconds after defrost recovery.
8 After the recovery condition, compressor guard timer is valid.
9 When 1 compressor is running and condition 1 or 2 is met, no load up is allowed during the 300
sec timer (timer busy).
Warning indication In the Service/Safety menu, the compressor protection warning (COMPR PR Setting) can be enabled
or disabled.
■ When the warning is enabled.
- Compressor status will indicate : COMP PR.
- Warning indication is displayed on the controller.
■ When the warning is disabled.
- Compressor status will indicate: COMP PR.
- No warning on the controller.
