Functional Control for a Standalone Unit ESIE06-05
2–160 Part 2 – Functional Description
3
1
2
4
5
Functional
description

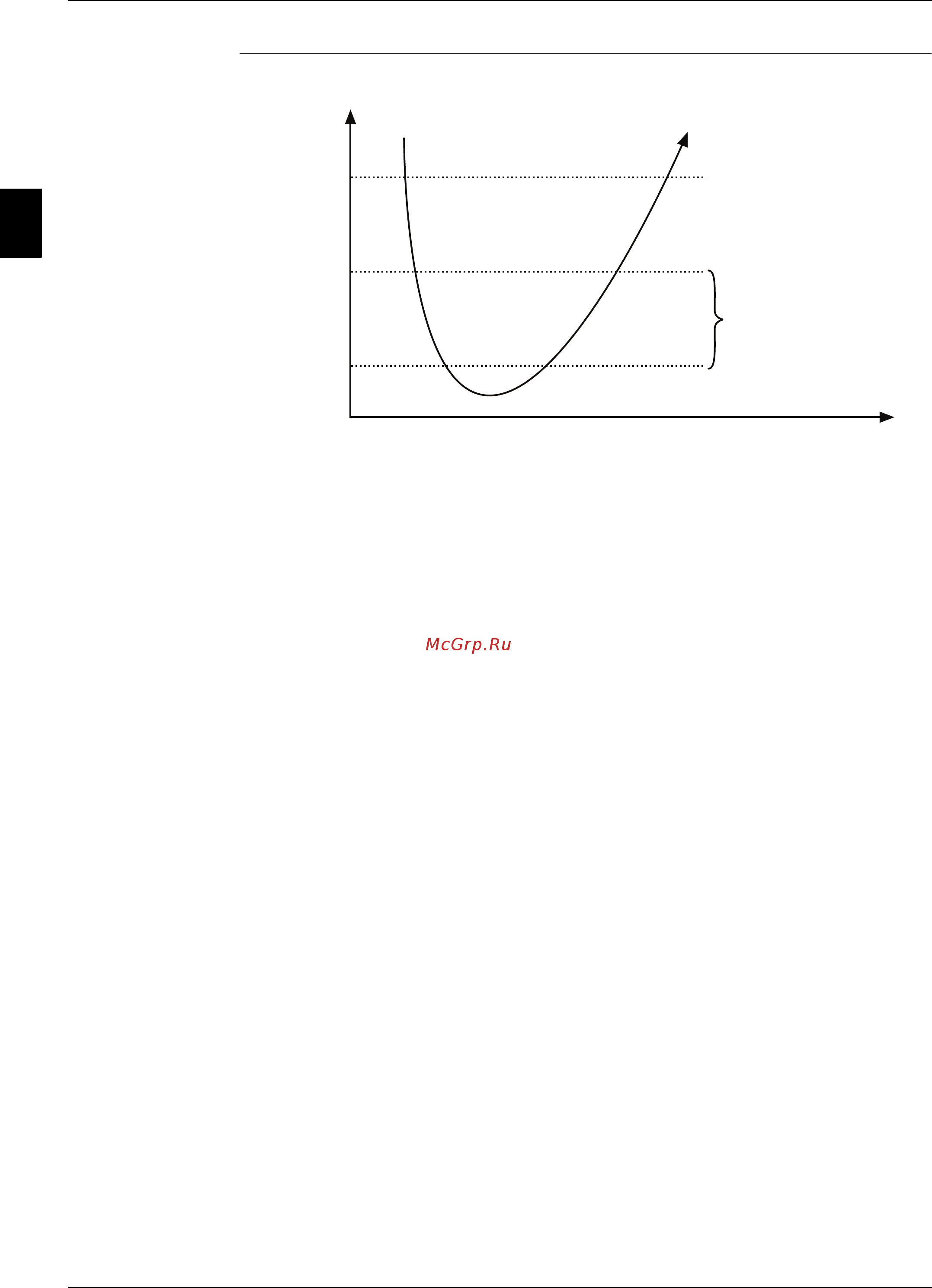

■ Loadup not possible area : if outlet water is lower then MOW then loadup is not possible.
■ Freeze-up prevention area : if outlet water temperature is lower then FREEZE UP
■ DIS + 0.5°C then unload 1 compressor, as long as the outlet water temp is too low and until 1
compressor is in operation.
■ Freeze-u safety disabling area: unit will shutdown.
Outlet temp
Time
RESET
setpoint
FREEZE UP
DIS setpoint
+0.5°C
Freeze-up prevention
area (loaddown)
Freeze-up
safety-disabling
(shutdown)
FREEZE UP
DIS setpoint
