![Tohatsu MFS 30 [111/319] Warning](/views2/1240939/page111/bg6f.png)
4
4-29
25/30 2006

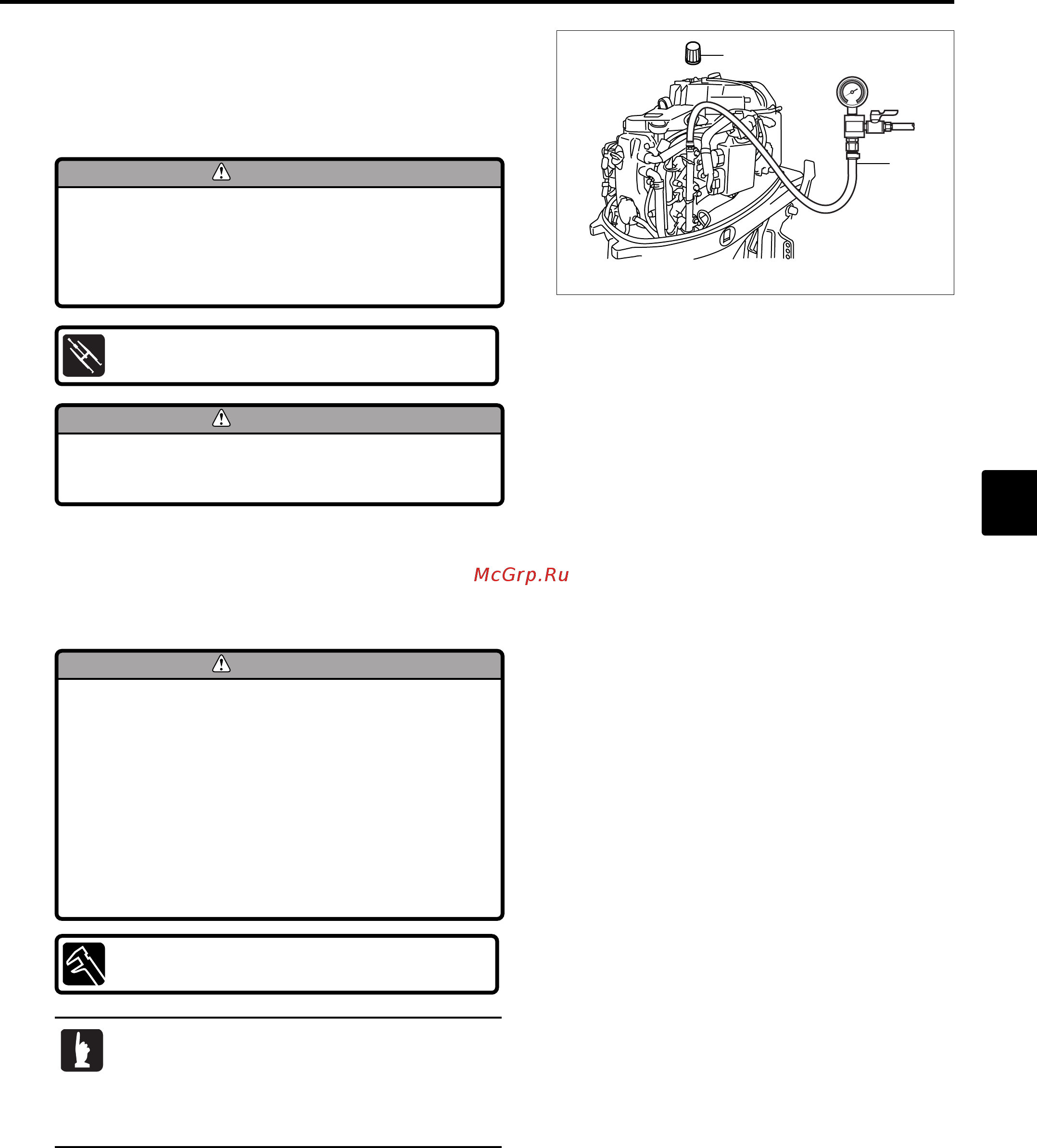

5) Measuring fuel pressure
1. Remove cap 1.
2. Connect pressure gauge 2 as shown.
1
2
WARNING
Before measurement, check that pressure
relief valve is fully closed.
Pressure Gauge Ass'y :
P/N. 3T5-72880-0
3. Start engine run 5 minutes to warm up, and then measure
fuel pressure. If the pressure is below specified value, check
high pressure fuel passage and vapor separator.
Fuel Pressure (Reference) :
0.29 MPa ( 43 psi ) [ 3.0 kgf/cm
2
] ±10%
• Use 3AC diagnosis system when measuring
fuel pressure without operating engine.
• If engine cannot be started, crank 4 to 5
revolutions by using starting motor or recoil
starter to measure fuel pressure.
WARNING
• Before measurement, be sure to check
that pressure relief valve is fully closed.
• Do not open pressure relief valve during
measurement. Opening the valve allows
fuel to spew out, possibly causing fire.
• After measurement, cover hose tip with
rag, and open pressure relief valve to
drain fuel from discharge hose and the
instrument.
• Before storing pressure gage, fully close
pressure relief valve.
WARNING
• Before connecting pressure gauge, cover
connection between pressure gauge and
valve with clean and dry cloth to prevent
fuel from releasing.
• Connect pressure gauge securely.
MFS25_30_ch04.qxd 06.3.9 4:35 PM ページ 29
