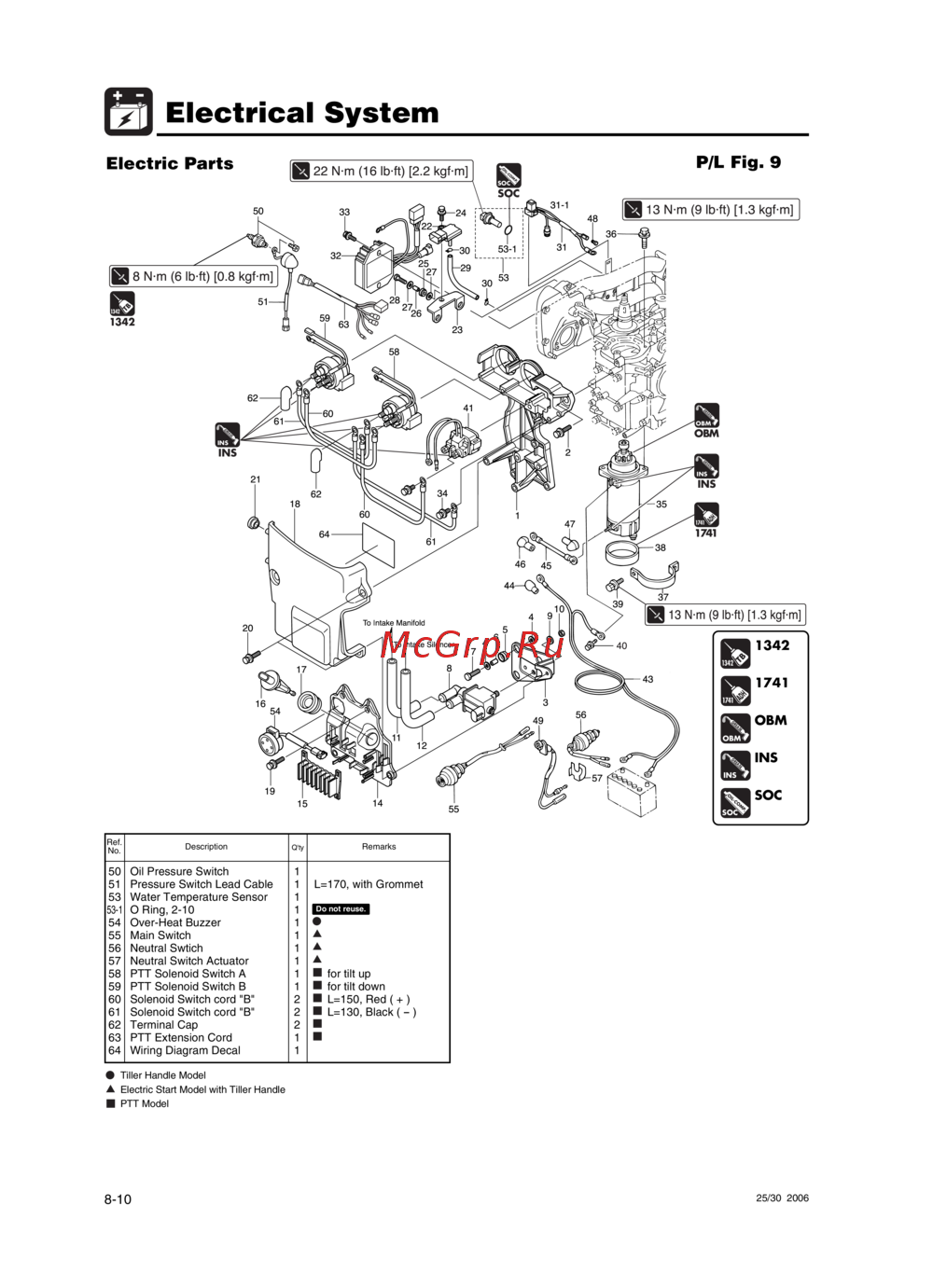

8-10
Electrical System
25/30 2006
50 Oil Pressure Switch 1
51 Pressure Switch Lead Cable 1 L=170, with Grommet
53 Water Temperature Sensor 1
53-1
O Ring, 2-10 1
54 Over-Heat Buzzer 1
55 Main Switch 1
56 Neutral Swtich 1
57 Neutral Switch Actuator 1
58 PTT Solenoid Switch A 1 for tilt up
59 PTT Solenoid Switch B 1 for tilt down
60 Solenoid Switch cord "B" 2 L=150, Red ( + )
61 Solenoid Switch cord "B" 2 L=130, Black ( -- )
62 Terminal Cap 2
63 PTT Extension Cord 1
64 Wiring Diagram Decal 1
