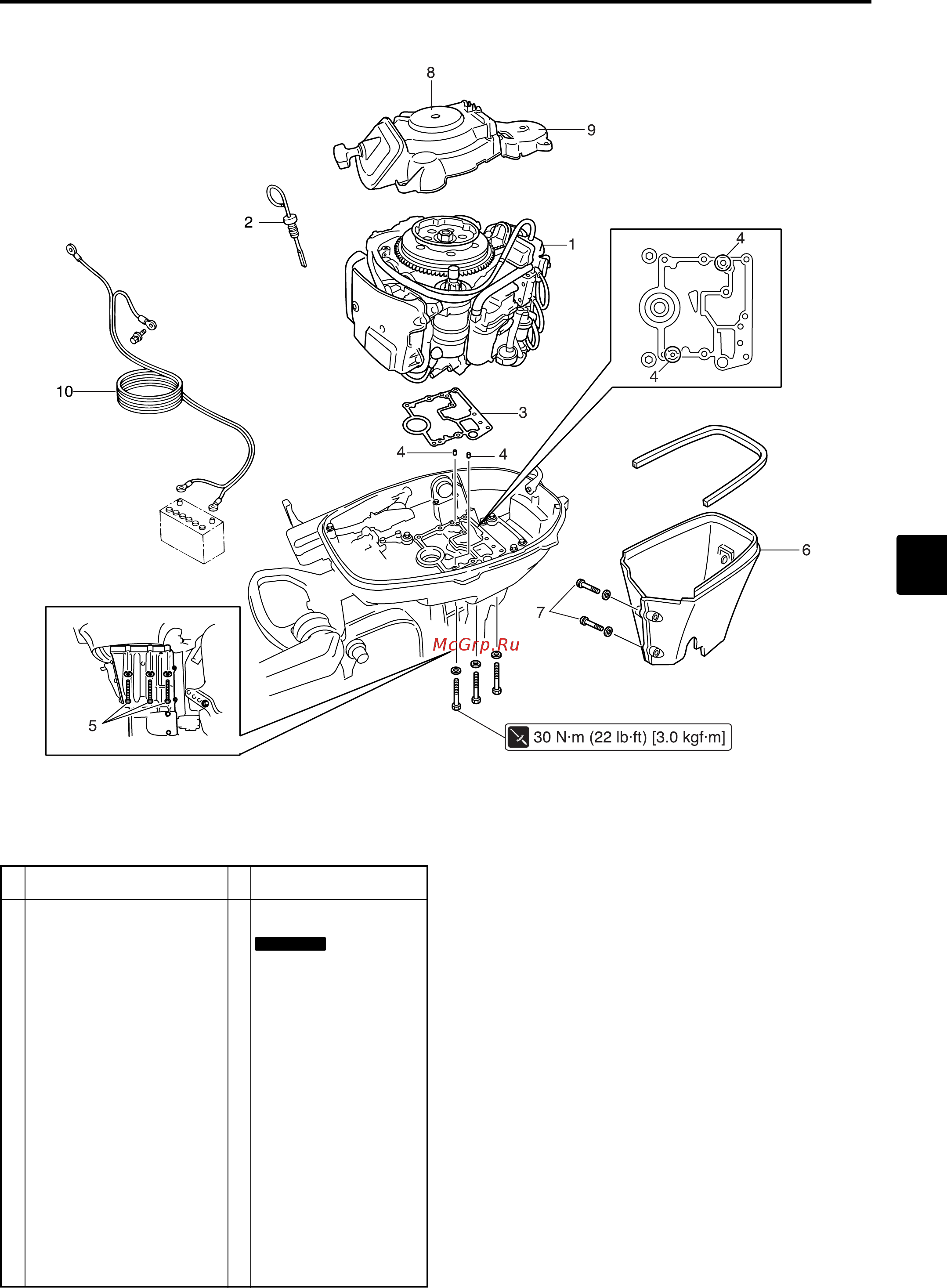

Tohatsu MFS 30 [119/319] Parts layout
![Tohatsu MFS 30 [119/319] Parts layout](/views2/1240939/page119/bg77.png)
5
5-3
25/30 2006
1 Power Unit 1
2 Oil Level Gauge 1
3 Gasket 1
4 Dowel Pin 2
5 Bolt 6 M8 L=105mm
6 Apron 1
7 Screw 2 M6 L=60mm
8 Recoil Starter 1
9 Belt Cover 1
10 Battery Cable 1
Ref.
No.
Description Remarks
Q'ty
2. Parts Layout
Engine
Do not reuse.
MFS25_30_ch05.qxd 06.3.9 4:48 PM ページ 3
