Tohatsu MFS 30 [258/319] N m 4 lb ft 0 kgf m
![Tohatsu MFS 25 [258/319] St oil](/views2/1240939/page258/bg102.png)
8-12
Electrical System
25/30 2006
37
13
28-2
38
29
23-6
23-2
23-3
23-5
23-4
V/S
Cylinder Block
To Fuel Rail
To Fuel Pump
23
28-1
28
24
25
26
27
53
33
53
53
11
10
32
42
14
12
11
16
15
39
32
32
32
30
34
53
19
1
3
45
38
21
17
3
2
5
31
5
4
22
5
36
51
20
38
40
51
41
51
35
32
7
9
8
32
44
23-1
From Fuel Pump
32
32
18
31
46
47
32
R/Mount
Air Vent
43
50
48
32
52
Bottom Cowl
49
6 N·m (4 lb·ft) [0.6 kgf·m]
6 N·m (4 lb·ft) [0.6 kgf·m]
4st OIL
4st
OIL
4st OIL
4st
OIL
4st OIL
4st
OIL
Use clamp plyer.
(P/N. 3T5-72864-0)
Use clamp plyer.
(P/N. 3T5-72864-0)

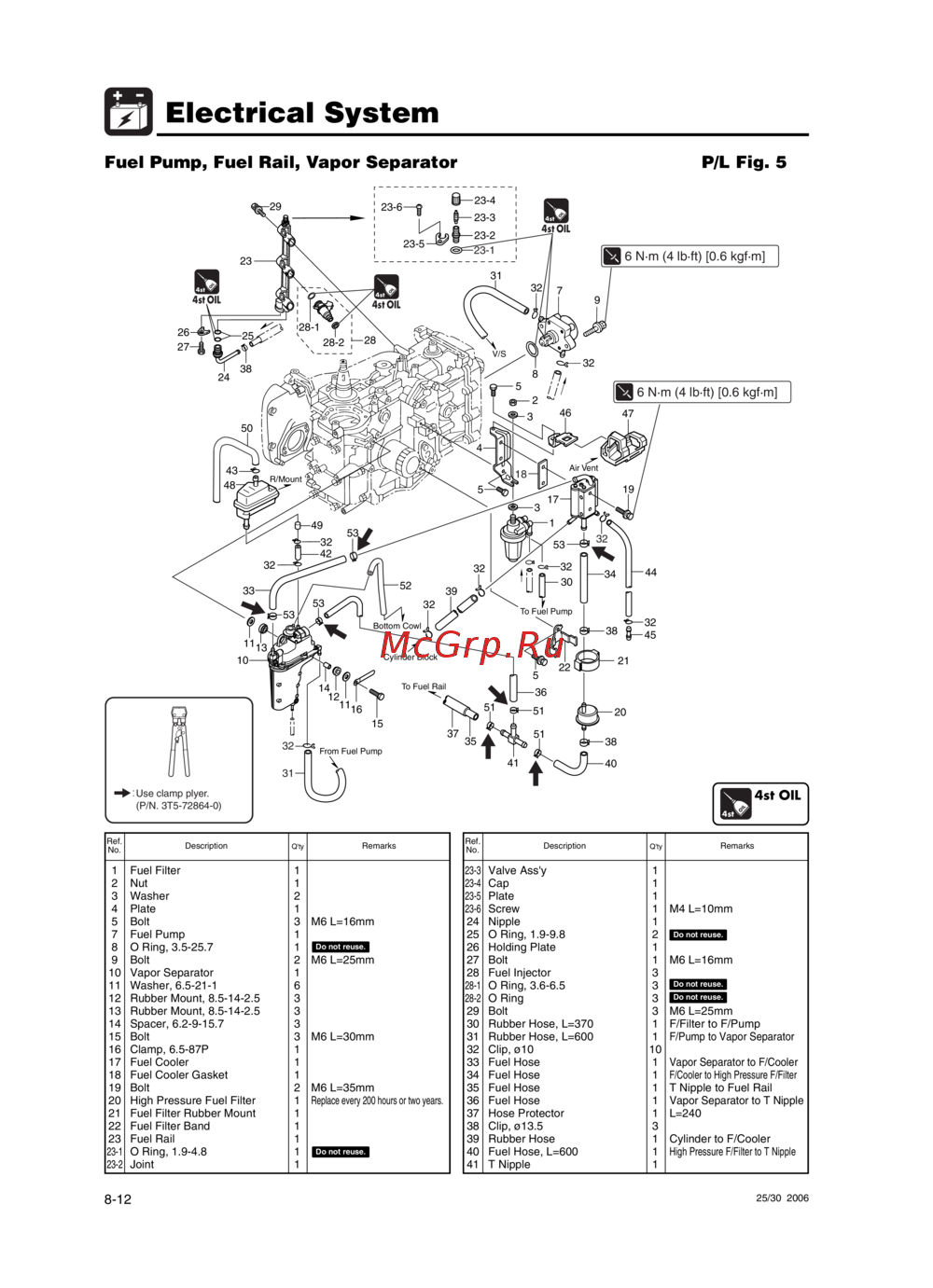

Fuel Pump, Fuel Rail, Vapor Separator
23-3
Valve Ass'y 1
23-4
Cap 1
23-5
Plate 1
23-6
Screw 1 M4 L=10mm
24 Nipple 1
25 O Ring, 1.9-9.8 2
26 Holding Plate 1
27 Bolt 1 M6 L=16mm
28 Fuel Injector 3
28-1
O Ring, 3.6-6.5 3
28-2
O Ring 3
29 Bolt 3 M6 L=25mm
30 Rubber Hose, L=370 1 F/Filter to F/Pump
31 Rubber Hose, L=600 1
F/Pump to Vapor Separator
32 Clip, ø10 10
33 Fuel Hose 1
Vapor Separator to F/Cooler
34 Fuel Hose 1
F/Cooler to High Pressure F/Filter
35 Fuel Hose 1 T Nipple to Fuel Rail
36 Fuel Hose 1
Vapor Separator to T Nipple
37 Hose Protector 1 L=240
38 Clip, ø13.5 3
39 Rubber Hose 1 Cylinder to F/Cooler
40 Fuel Hose, L=600 1
High Pressure F/Filter to T Nipple
41 T Nipple 1
Ref.
No.
Description Remarks
Q'ty
1 Fuel Filter 1
2 Nut 1
3Washer 2
4 Plate 1
5 Bolt 3 M6 L=16mm
7 Fuel Pump 1
8O Ring, 3.5-25.7 1
9 Bolt 2 M6 L=25mm
10 Vapor Separator 1
11 Washer, 6.5-21-1 6
12 Rubber Mount, 8.5-14-2.5 3
13 Rubber Mount, 8.5-14-2.5 3
14 Spacer, 6.2-9-15.7 3
15 Bolt 3 M6 L=30mm
16 Clamp, 6.5-87P 1
17 Fuel Cooler 1
18 Fuel Cooler Gasket 1
19 Bolt 2 M6 L=35mm
20 High Pressure Fuel Filter 1
Replace every 200 hours or two years.
21 Fuel Filter Rubber Mount 1
22 Fuel Filter Band 1
23 Fuel Rail 1
23-1
O Ring, 1.9-4.8 1
23-2
Joint 1
Ref.
No.
Description Remarks
Q'ty
Do not reuse.
4st
OIL
4st OIL
P/L Fig. 5
Do not reuse.
Do not reuse.
Do not reuse.
Do not reuse.
