6-30
Lower Unit
25/30 2006
2
1
TEF
GREASE
TEF
TB
13421342
1342
TB
13421342
1342
A
TEF
GREASE
TEF

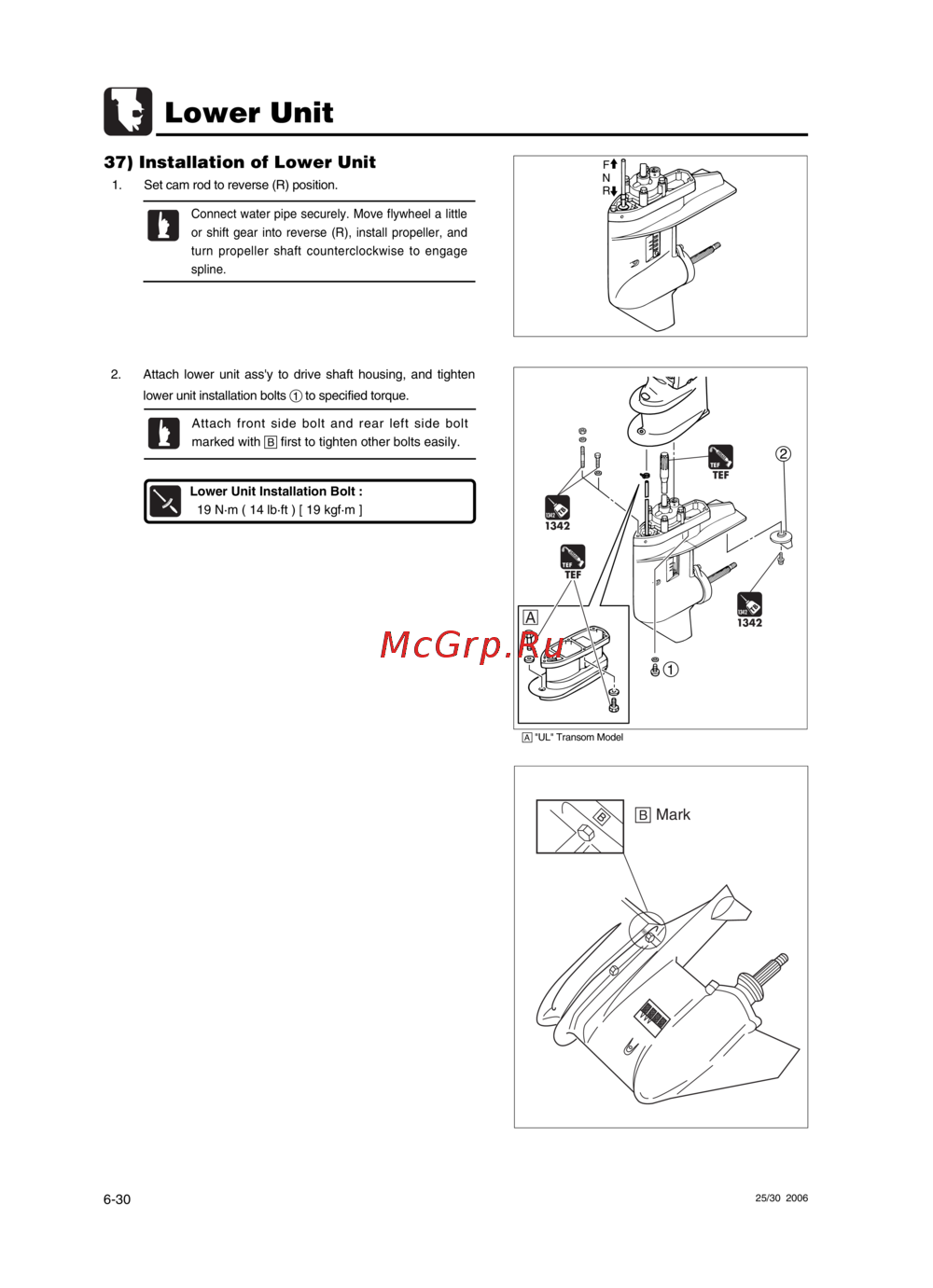

37) Installation of Lower Unit
1. Set cam rod to reverse (R) position.
2. Attach lower unit ass'y to drive shaft housing, and tighten
lower unit installation bolts 1 to specified torque.
Lower Unit Installation Bolt :
19 N·m ( 14 lb·ft ) [ 19 kgf·m ]
R
N
F
å "UL" Transom Model
Connect water pipe securely. Move flywheel a little
or shift gear into reverse (R), install propeller, and
turn propeller shaft counterclockwise to engage
spline.
Attach front side bolt and rear left side bolt
marked with ∫ first to tighten other bolts easily.
∫ Mark
MFS25_30_ch06.qxd 06.3.9 4:54 PM ページ 30
