Bracket
7-18
25/30 2006
8) Assembly of Drive Shaft Housing

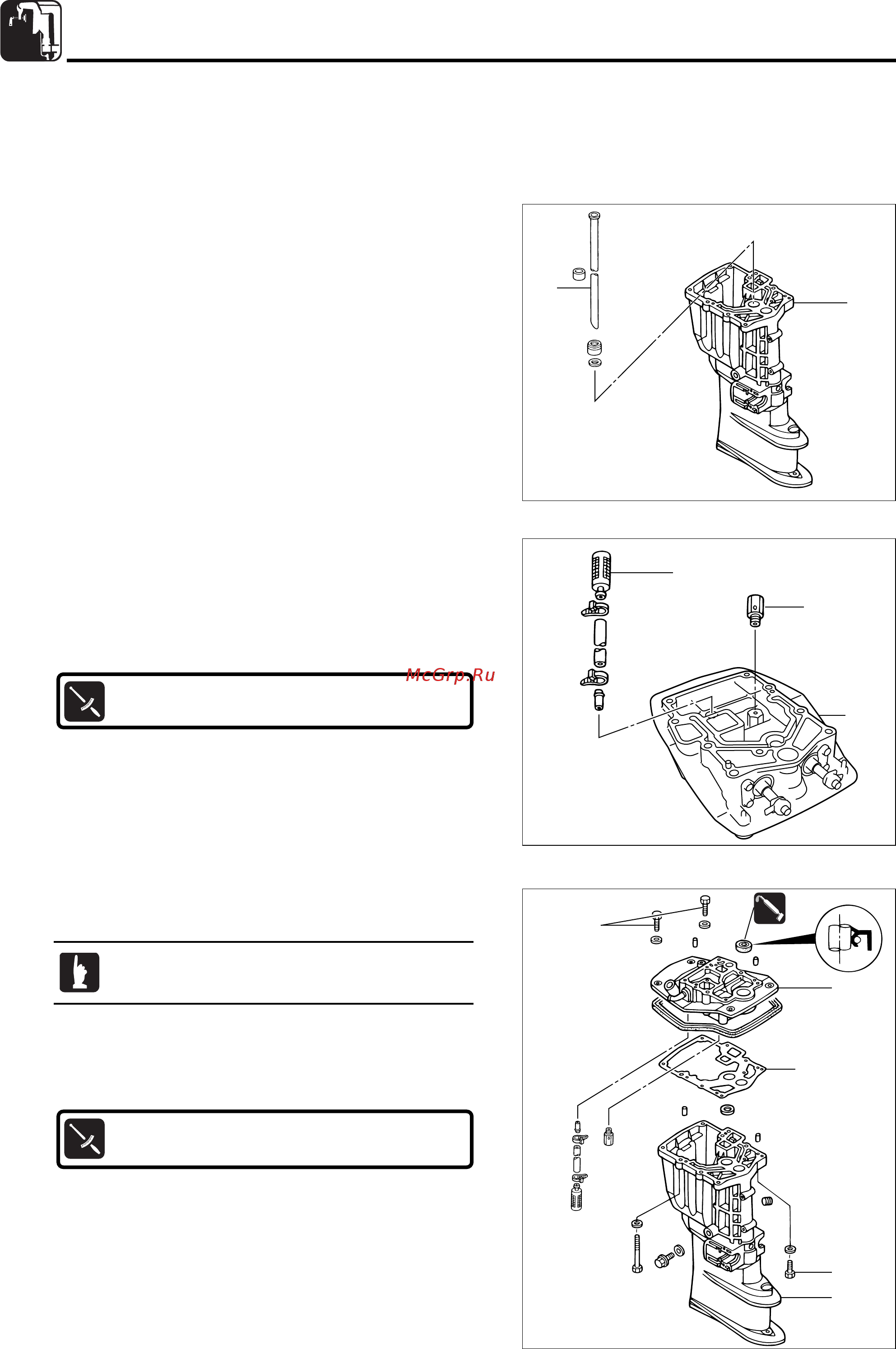

1. Install water pipe 1 into drive shaft housing 2.
3
4
5
Engine Base Bolts 8 and 9 :
31 N·m ( 22 lb·ft ) [ 3.1 kgf·m ]
1
2
6
7
8
9
0
LIT
GREASE
LIT
4. Install new gasket 7 and engine base ass'y 6 to drive shaft
housing 0.
5. Secure engine base with two bolts 8 from above and one 9
from below by tightening them to specified torque.
2. Install oil strainer 3 on the engine base 5, and secure it
with ties.
3. Install plunger 4 on the engine base, and tighten it to
specified torque.
When installing engine base, be careful not to
fold oil strainer hose.
7) Inspection of Oil Strainer
1. Check filter for dirt and sediment. Clean, or replace if
necessary.
Plunger 4 :
30 N·m ( 22 lb·ft ) [ 3.0 kgf·m ]
MFS25_30_ch07.qxd 06.3.9 4:57 PM ページ 18
