Bracket
7-34
25/30 2006
11. Add recommended PTT fluid to specified level if it is lacking.
Reserve Tank Cap :
1.5 N·m ( 1.1 lb·ft ) [ 0.15 kgf·m ]
12. Reservoir tank cap and tighten to specified torque.
13. Repeat steps from 5. to 12. until specified PTT fluid level is
attained.

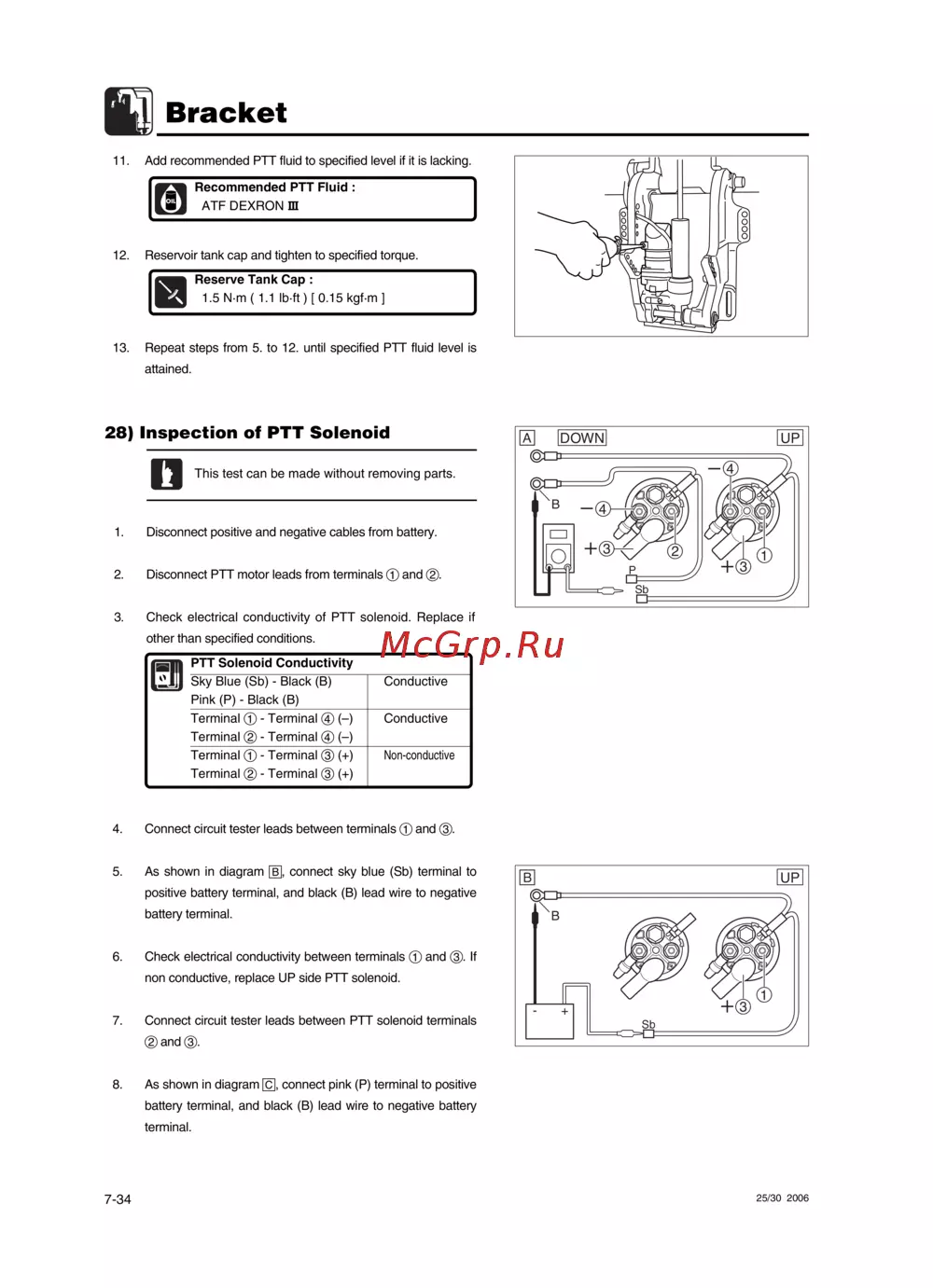

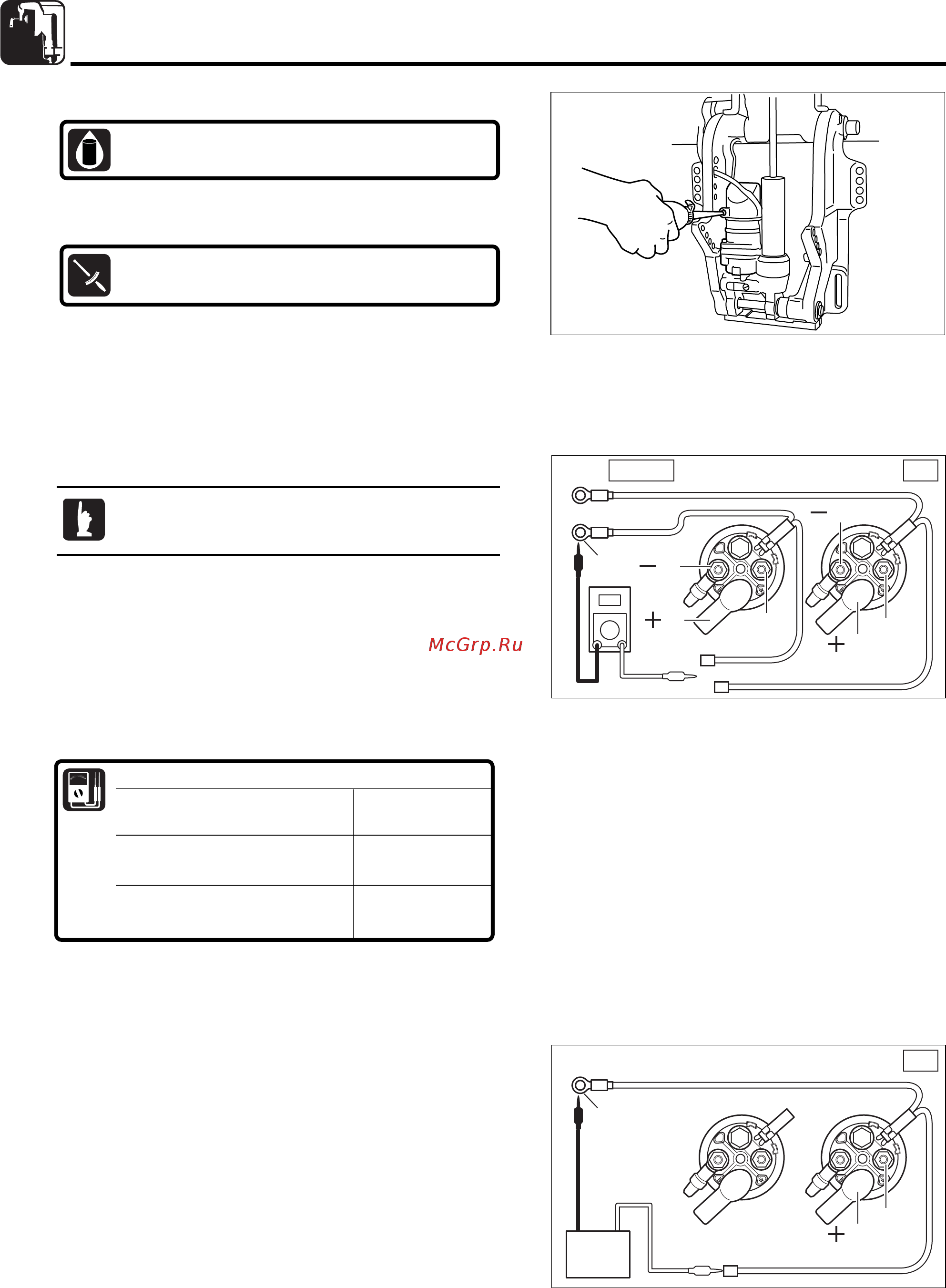

28) Inspection of PTT Solenoid
PTT Solenoid Conductivity
Sky Blue (Sb) - Black (B) Conductive
Pink (P) - Black (B)
Terminal 1 - Terminal 4 (–) Conductive
Terminal 2 - Terminal 4 (–)
Terminal 1 - Terminal 3 (+)
Non-conductive
Terminal 2 - Terminal 3 (+)
B
P
Sb
å
UP
DOWN
4
3
2
4
3
1
-+
UP
∫
B
Sb
3
1
4. Connect circuit tester leads between terminals 1 and 3.
5. As shown in diagram ∫, connect sky blue (Sb) terminal to
positive battery terminal, and black (B) lead wire to negative
battery terminal.
6. Check electrical conductivity between terminals 1 and 3. If
non conductive, replace UP side PTT solenoid.
7. Connect circuit tester leads between PTT solenoid terminals
2 and 3.
8. As shown in diagram ç, connect pink (P) terminal to positive
battery terminal, and black (B) lead wire to negative battery
terminal.
This test can be made without removing parts.
1. Disconnect positive and negative cables from battery.
2. Disconnect PTT motor leads from terminals 1 and 2.
3. Check electrical conductivity of PTT solenoid. Replace if
other than specified conditions.
Recommended PTT Fluid :
ATF DEXRON III
OIL
