5-24
Power Unit
25/30 2006

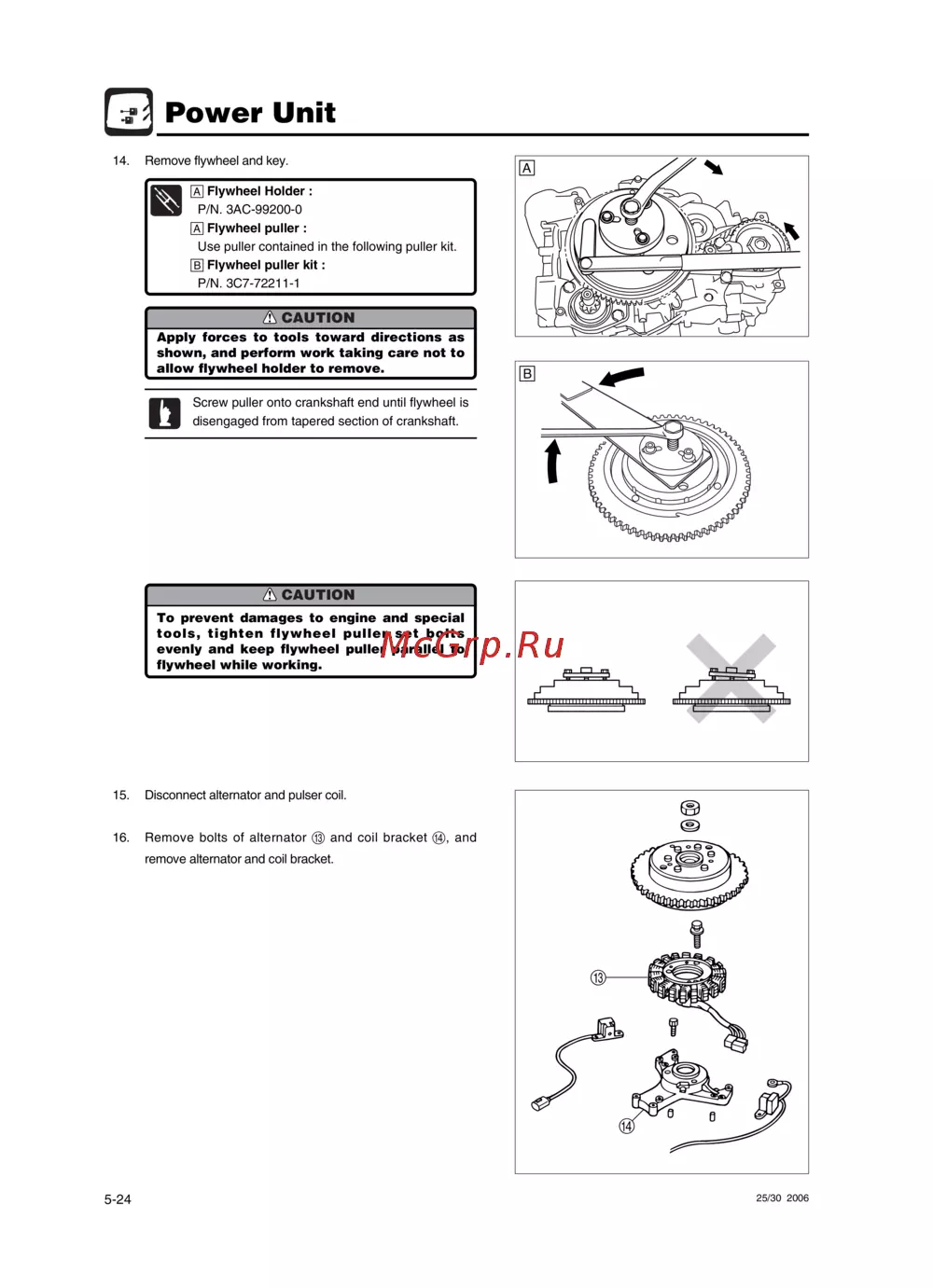

14. Remove flywheel and key.
15. Disconnect alternator and pulser coil.
16. Remove bolts of alternator e and coil bracket r, and
remove alternator and coil bracket.
CAUTION
To prevent damages to engine and special
tools, tighten flywheel puller set bolts
evenly and keep flywheel puller parallel to
flywheel while working.
CAUTION
Apply forces to tools toward directions as
shown, and perform work taking care not to
allow flywheel holder to remove.
e
r
Screw puller onto crankshaft end until flywheel is
disengaged from tapered section of crankshaft.
å Flywheel Holder :
P/N. 3AC-99200-0
å Flywheel puller :
Use puller contained in the following puller kit.
∫ Flywheel puller kit :
P/N. 3C7-72211-1
å
∫
MFS25_30_ch05.qxd 06.3.9 4:48 PM ページ 24
