Tohatsu MFS 30 — инструкция по демонтажу силового агрегата и его компонентов [139/319]
![Tohatsu MFS 30 Сервис Мануал онлайн [139/319] 202310](/views2/1240939/page139/bg8b.png)
5
5-23
25/30 2006

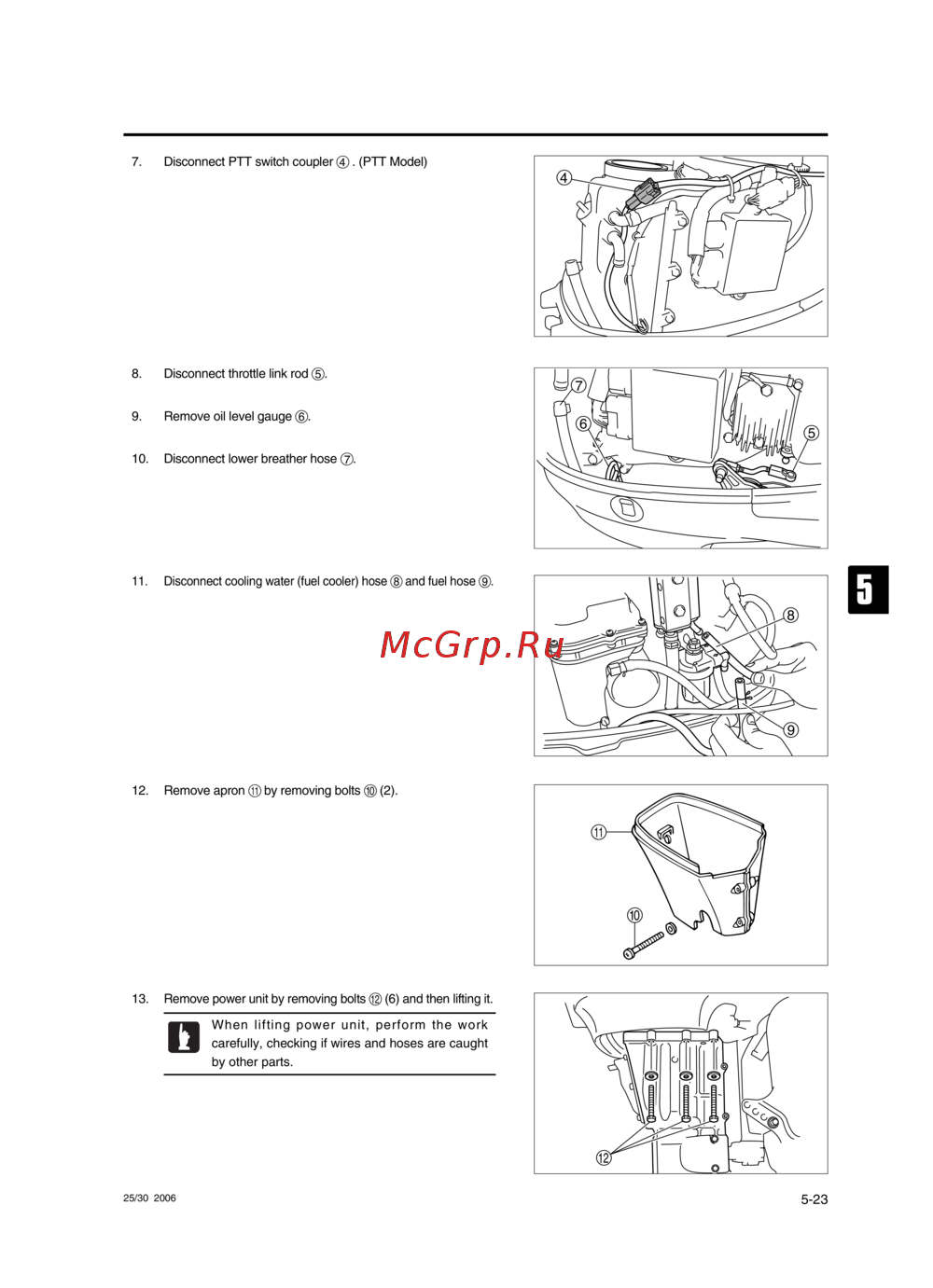

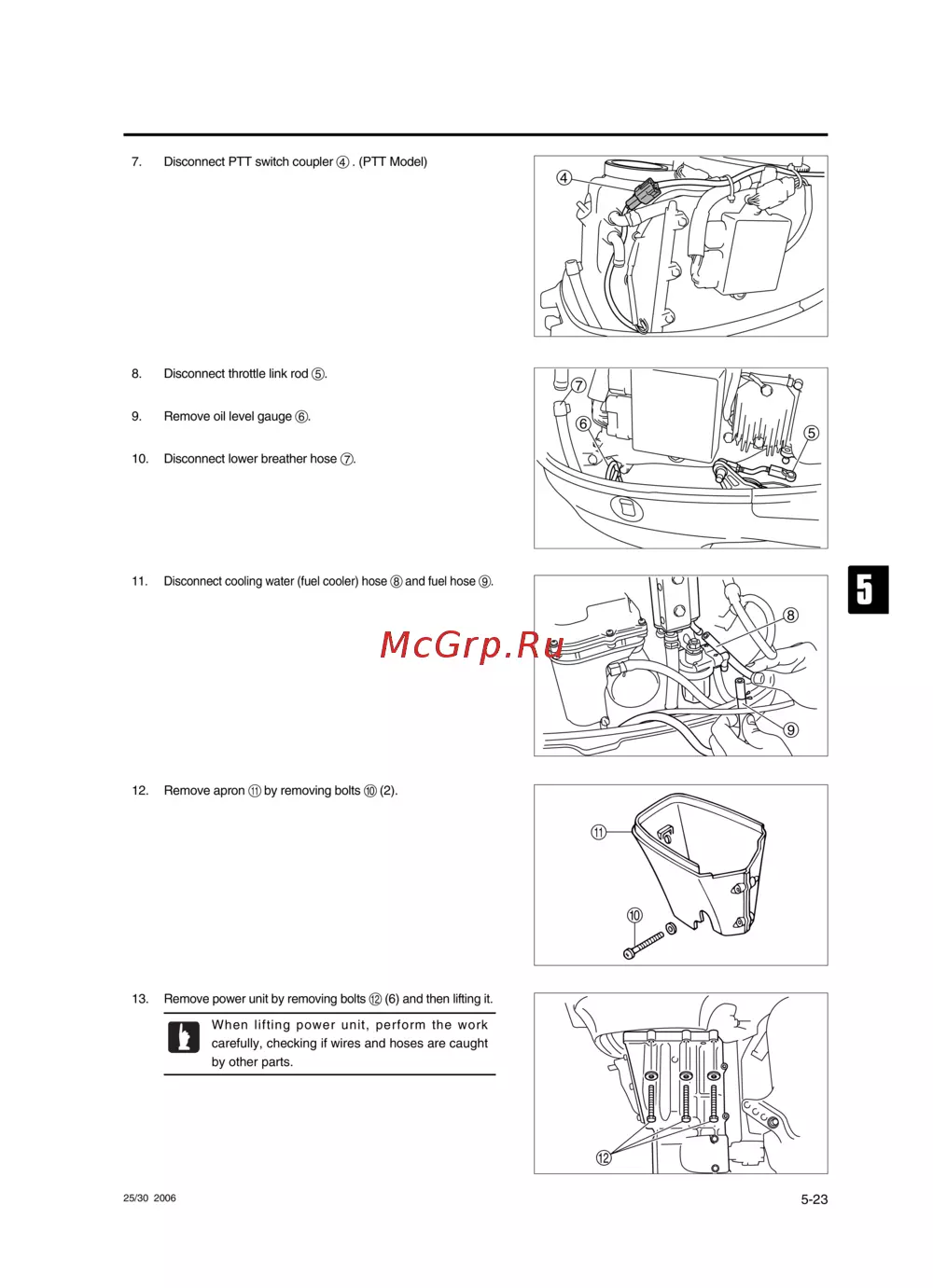

12. Remove apron q by removing bolts 0 (2).
13.
Remove power unit by removing bolts w (6) and then lifting it.
q
0
w
8
9
8. Disconnect throttle link rod 5.
9. Remove oil level gauge 6.
10. Disconnect lower breather hose 7.
6
5
7
7. Disconnect PTT switch coupler 4 . (PTT Model)
4
11. Disconnect cooling water (fuel cooler) hose 8 and fuel hose 9.
When lifting power unit, perform the work
carefully, checking if wires and hoses are caught
by other parts.
MFS25_30_ch05.qxd 06.3.9 4:48 PM ページ 23
